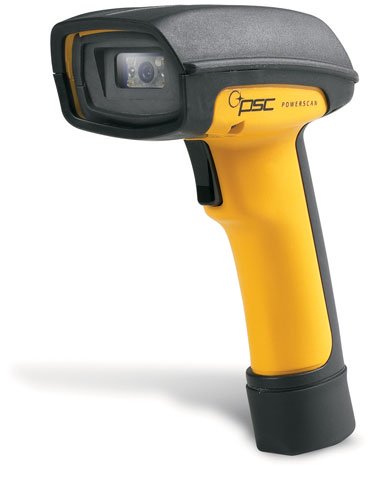

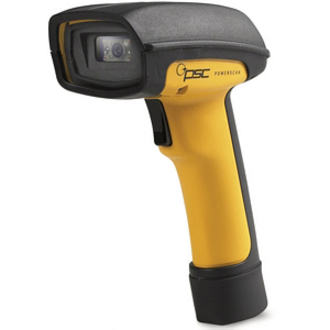

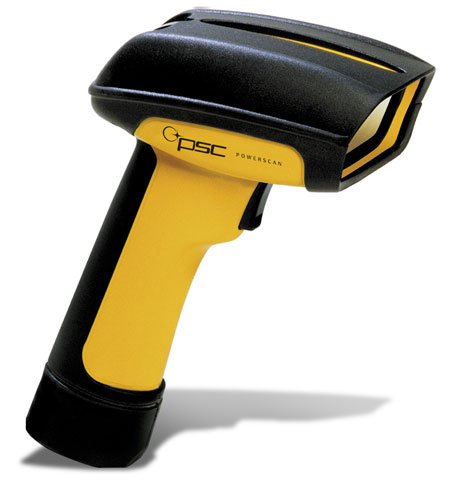

Datalogic PS2D-2100 Barcode Scanner

The Datalogic PS2D-2100 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Datalogic PowerScan 2D - Datalogic PowerScan 2D Bar Code Reader - Cable Connectivity - 1D, 2D - Imager - Omni-directional - USB - Yellow, Black

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Incredible and responsive 2D scanning even on curved or translucent surfaces
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Perfect for applications that require direct association with a workstation or a notebook

Need a different version? See all Datalogic PowerScan 2D Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Datalogic PowerScan 2D Barcode Scanner Model Overview

The Datalogic PowerScan 2D imaging scanner brings the latest imaging technology into the industry leading PowerScan product line. Whether your application requires reading traditional linear barcodes, reading stacked 2D symbologies like PDF417, reading matrix 2D symbologies like Data Matrix and MaxiCode or capturing images like signatures or photographs of other objects, the Datalogic PowerScan 2D scanner will meet your needs.

Datalogic PS2D-2100 Barcode Scanner Overview

The PowerScan 2D Bar Code Reader brings the latest imaging technology into the industry leading PowerScan product line. Whether your application requires reading traditional linear barcodes, reading stacked 2D symbologies like PDF417, reading matrix 2D symbologies like Data Matrix and MaxiCode or capturing images like signatures or photographs of other objects, the PowerScan 2D scanner will meet your needs.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

Code 11
Code 128
UPC/EAN/JAN
RSS
Code 39
Codabar
Interleaved 2 of 5
Code 93
PDF 417
MaxiCode
Aztec
Micro PDF
DataMatrix
Aztec Mesas
UCC/EAN
Composite Codes
Code 49
QR Code
OCR-A
OCR-B
Postnet
Canadian Post
British Post
China Postal Code
Japanese Post
Kix
Planet Code
Code 2 of 5

Image Sensor Type:

Imager

Depth of Field:

1.5" - 5.5"@7.5mil - Linear
1.3" - 7.9"@13mil - UPC
1.8" - 5"@6.6mil - PDF417
1.3" - 5"@15mil - Data Matrix
1" - 9"@35mil - Maxi Code

Scan Pattern:

Omni-directional

Interfaces/Ports

Host Interface:

USB

Power Description

Input Voltage:

14 V DC

Physical Characteristics

Form Factor:

Handheld

Product Color:

Yellow
Black

Weight (Approximate):

9.60 oz

Miscellaneous

Additional Information:

USB Cable separate

Certifications & Standards:

Electrical:

TÜV
UL
cUL

Emissions:

FCC
EN 55022-B
CNS13438
AS/NZS 3548
VCCI

Warranty

Limited Warranty:

5 Year

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Get help from a Barcoding Expert!

The Datalogic PS2D-2100 Barcode Scanner is also known as PSC-PS2D2100 or PS2D2100.
