Datalogic PowerScan 2D – Barcode Scanner – 1D

Part Number: PS2D-1100
Model: PowerScan 2D
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Imager

Product Description:

  Datalogic PowerScan 2D Bar Code Reader - 1D, 2D - Imager - Serial - Yellow, Black
Explore all Datalogic PowerScan 2D Barcode Scanners
Add to Quote
Datalogic PS2D-1100 Barcode Scanner
Datalogic PS2D-1100 Barcode Scanner
Datalogic PS2D-1100 Barcode Scanner
Datalogic PS2D-1100 Barcode Scanner
Datalogic PS2D-1100 Barcode Scanner Datalogic PS2D-1100 Barcode Scanner Datalogic PS2D-1100 Barcode Scanner Datalogic PS2D-1100 Barcode Scanner
Full specifications (PDF)

Datalogic PowerScan 2D Barcode Scanner Model Overview

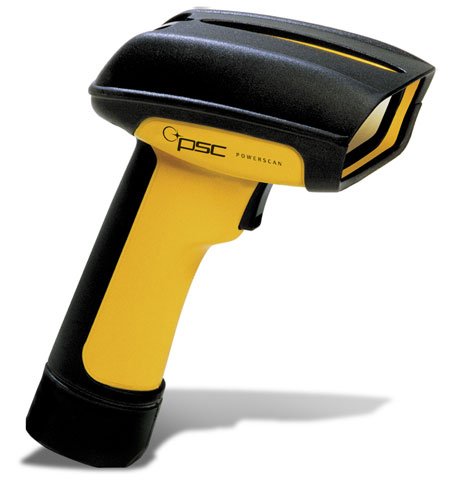

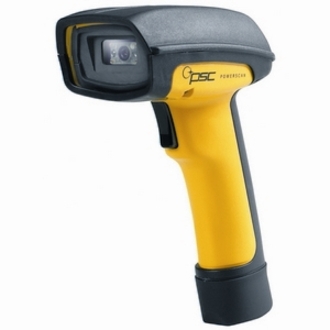

The Datalogic PowerScan 2D imaging scanner brings the latest imaging technology into the industry leading PowerScan product line. Whether your application requires reading traditional linear barcodes, reading stacked 2D symbologies like PDF417, reading matrix 2D symbologies like Data Matrix and MaxiCode or capturing images like signatures or photographs of other objects, the Datalogic PowerScan 2D scanner will meet your needs.
Datalogic PS2D-1100 Barcode Scanner Overview

Setting a New Standard For Imaging:

Full specifications (PDF)
Technical Information
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Code 11
  • Code 128
  • UPC
  • JAN
  • EAN
  • RSS
  • Code 39
  • Codabar
  • Interleaved 2 of 5
  • Code 93
  • Code 2 of 5
  • PDF 417
  • MaxiCode
  • Aztec Mesa
  • Aztec
  • Micro PDF
  • DataMatrix
  • EAN-UCC Composite
  • Code 49
  • QR Code
  • Postnet
  • British Post
  • Canadian Post
  • China Postal Code
  • Japanese Post
  • Planet Code
  • OCR-A
  • OCR-B
  • Kix
Image Sensor Type:
Imager
Depth of Field:
  • 1.5" - 5.5"@7.5mil - Linear
  • 1.3" - 7.9"@13mil - UPC
  • 1.8" - 5"@6.6mil - PDF417
  • 1.3" - 5"@15mil - Data Matrix
  • 1" - 9"@35mil - Maxi Code
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Weight (Approximate):
9.60 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:

Electrical:

  • TUV
  • UL
  • cUL

Emissions:

  • FCC
  • EN 55022-B
  • CNS13438
  • AS/NZS 3548
  • VCCI
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
