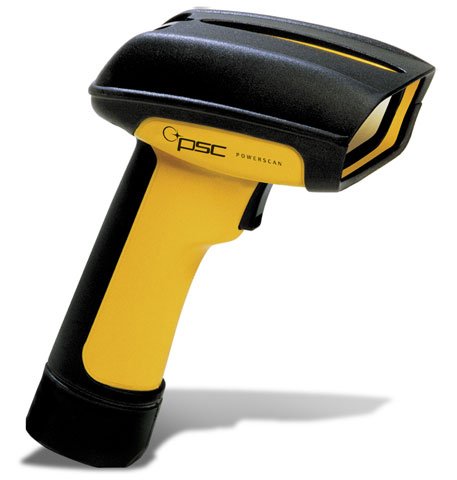

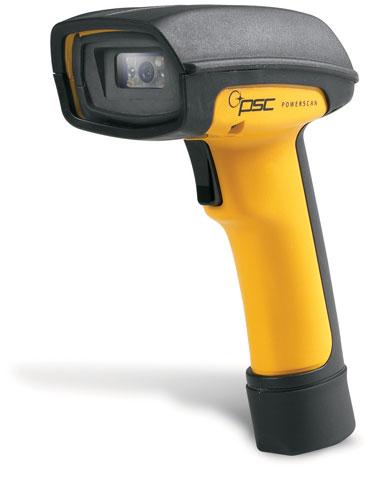

Datalogic PS2D-1000 Barcode Scanner

The Datalogic PS2D-1000 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic PowerScan 2D - Datalogic PowerScan 2D Bar Code Reader - 1D, 2D - Imager - Serial - Yellow, Black
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Read More

Need a different version? See all Datalogic PowerScan 2D Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Datalogic PS2D-1000 Barcode Scanner
Datalogic PS2D-1000 Barcode Scanner Datalogic PS2D-1000 Barcode Scanner Datalogic PS2D-1000 Barcode Scanner Datalogic PS2D-1000 Barcode Scanner
Datalogic PS2D-1000 Barcode Scanner
Datalogic PS2D-1000 Barcode Scanner
Datalogic PS2D-1000 Barcode Scanner
Datalogic PS2D-1000 Barcode Scanner
Full specifications (PDF)
Datalogic PowerScan 2D Barcode Scanner Model Overview
The Datalogic PowerScan 2D imaging scanner brings the latest imaging technology into the industry leading PowerScan product line. Whether your application requires reading traditional linear barcodes, reading stacked 2D symbologies like PDF417, reading matrix 2D symbologies like Data Matrix and MaxiCode or capturing images like signatures or photographs of other objects, the Datalogic PowerScan 2D scanner will meet your needs.
Datalogic PS2D-1000 Barcode Scanner Overview

Setting a New Standard For Imaging:

Full specifications (PDF)
Technical Information
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Code 11
  • Code 128
  • UPC
  • JAN
  • EAN
  • RSS
  • Code 39
  • Codabar
  • Interleaved 2 of 5
  • Code 93
  • Code 2 of 5
  • PDF 417
  • MaxiCode
  • Aztec Mesa
  • Aztec
  • Micro PDF
  • DataMatrix
  • EAN-UCC Composite
  • Code 49
  • QR Code
  • Postnet
  • British Post
  • Canadian Post
  • China Postal Code
  • Japanese Post
  • Planet Code
  • OCR-A
  • OCR-B
  • Kix
Image Sensor Type:
Imager
Depth of Field:
  • 2.5" - 6.6"@8mil - Linear
  • 1.5" - 11.5"@13mil - UPC
  • 3.5" - 5.3"@6.6mil - PDF417
  • 2.7" - 5.5"@15mil - Data Matrix
  • 1" - 12"@35mil - Maxi Code
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Weight (Approximate):
9.60 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:

Electrical:

  • TUV
  • UL
  • cUL

Emissions:

  • FCC
  • EN 55022-B
  • CNS13438
  • AS/NZS 3548
  • VCCI
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PS2D-1000 Barcode Scanner is also known as PSC-PS2D1000 or PS2D1000.
