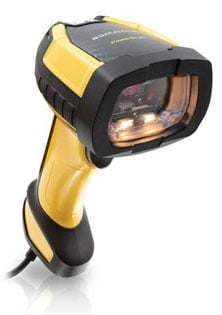

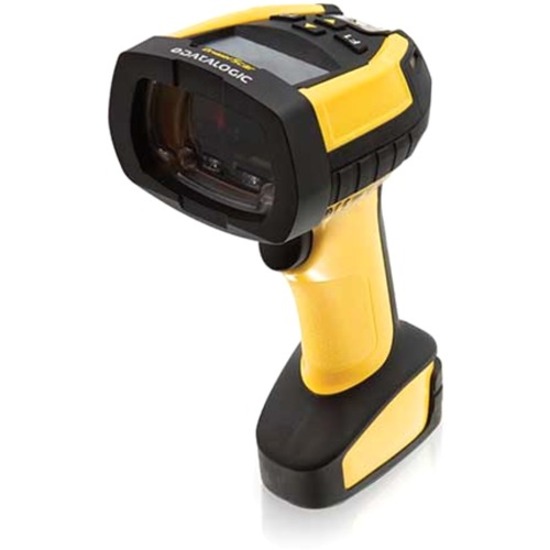

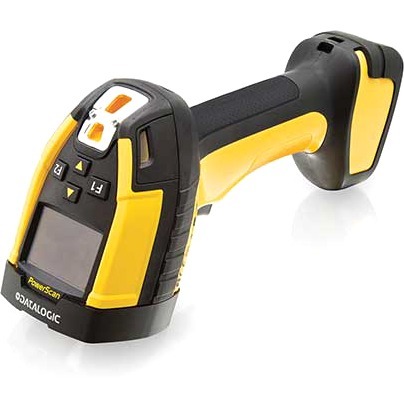

Datalogic PM9600 – Barcode Scanner

Part Number: PM9600-SR910RBK20
Model: PM9600
3-year Premium Plus ($124.15)
3-year Premium ($69.45)
No Support
Add to My Shopping List Add to Compare
$867.22
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable/Wireless
Light Source
LED
Image Sensor Type
Imager
Scan Mode
Trigger

Product Description:

  Barcode Scanners, Datalogic PM9600, Standard Range, 910Mhz, RS-232 Kit (Kit Includes Scanner PM9600, Cradle BC9630-910, Cable CAB-548, Power Supply 8-0935 And Power Cord 6003-0941)
Explore all DataLogic PM9600 Barcode Scanners
Add to Quote
DataLogic PM9600-SR910RBK20 Barcode Scanner
DataLogic PM9600-SR910RBK20 Barcode Scanner
DataLogic PM9600-SR910RBK20 Barcode Scanner
DataLogic PM9600-SR910RBK20 Barcode Scanner
DataLogic PM9600-SR910RBK20 Barcode Scanner
DataLogic PM9600-SR910RBK20 Barcode Scanner
DataLogic PM9600-SR910RBK20 Barcode Scanner
DataLogic PM9600-SR910RBK20 Barcode Scanner
DataLogic PM9600-SR910RBK20 Barcode Scanner
DataLogic PM9600-SR910RBK20 Barcode Scanner
DataLogic PM9600-SR910RBK20 Barcode Scanner DataLogic PM9600-SR910RBK20 Barcode Scanner DataLogic PM9600-SR910RBK20 Barcode Scanner DataLogic PM9600-SR910RBK20 Barcode Scanner DataLogic PM9600-SR910RBK20 Barcode Scanner DataLogic PM9600-SR910RBK20 Barcode Scanner DataLogic PM9600-SR910RBK20 Barcode Scanner DataLogic PM9600-SR910RBK20 Barcode Scanner DataLogic PM9600-SR910RBK20 Barcode Scanner DataLogic PM9600-SR910RBK20 Barcode Scanner
Full specifications (PDF)

DataLogic PM9600 Barcode Scanner Model Overview

The PowerScan™ PM9600 Datalogic handheld industrial scanner offers unparalleled performance in 1D/2D barcode reading, seamlessly integrating into tough industrial environments. With its ultra-rugged design and ergonomic shape, this scanner minimizes operator strain while maximizing efficiency. The intuitive aiming system guarantees high first-pass reading rates, while the cordless model, featuring Datalogic's STAR Cordless System™, ensures freedom of movement and safety. Its advanced battery life management allows for multiple shifts of intensive scanning, making it the ideal choice for manufacturing, warehousing, and logistics operations.


Key Features
  • Ultra-Rugged Design for industrial durability
  • Ergonomic Shape that reduces operator stress
  • Advanced Aiming System for highest first-pass reading rates
  • Datalogic's STAR Cordless System™ for improved mobility
  • Wireless Charging System for hassle-free maintenance
  • IP65 and IP67 Ratings for water and dust resistance

Specifications
  • Communication: Datalogic STAR Cordless System™, 433/910 MHz
  • Reading Capability: 1D, 2D, Postal Codes, Stacked Codes
  • Display: 1.8" OLED with user-selectable font dimensions
  • Battery: Lithium-Ion, 3350 mAh
  • Weight: PM9600-D/DK: 425g - 455g
  • Operating Temperature: -20°C to 50°C
  • Drop Resistance: Withstands 50 drops from 2.5m
  • Warranty: 3-Year Factory Warranty
DataLogic PM9600-SR910RBK20 Barcode Scanner Overview

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

MODULARITY WITH THE BEST FLEXIBILITY

The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable/Wireless
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
Omni-directional
Scanner Range:
Standard Range
Scanning Distance:
68.90"
Features:
  • Beep
  • 3GL
  • Vibration
  • Notification LED
  • Ergonomic Design
Cable Type Included:
Serial
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
10 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
20kV
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
Serial
Power Description
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Maximum Battery Recharge Time:
3.20 Hour
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Durability:
  • Water Resistant
  • Dust Resistant
Height:
7.8"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
14.99 oz
Miscellaneous
Package Contents:
  • PowerScan PM9600 Barcode Scanner
  • Cradle BC9630-910
  • Cable CAB-548
  • Power Supply 8-0935
  • Power Cord 6003-0941
Ingress Protection (IP) Rating:
  • IP65
  • IP67
Application/Usage:
  • Industrial
  • Warehouse
  • Manufacturing
  • Logistics
  • Retail
  • Inventory
  • Assembly Line
  • Component Tracking
  • Picking
  • Sorting
Environmental Compliance:
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
