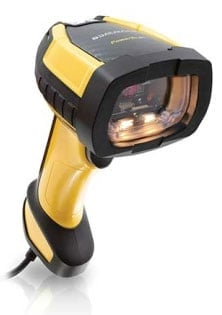

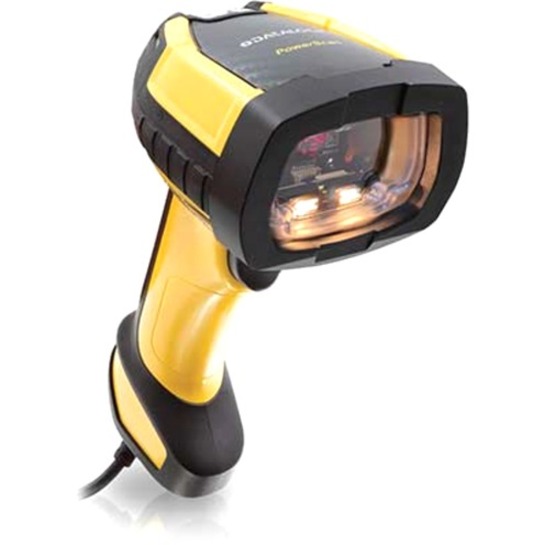

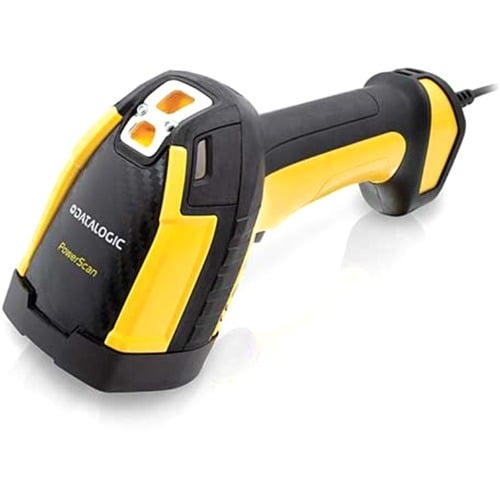

Datalogic PM9600-SR433RBK10 Barcode Scanner

Datalogic PM9600 - Barcode Scanners, Datalogic PM9600, Standard Range, 433 MHz, USB Kit (Kit Includes Scanner PM9600, Cradle BC9630-433, Cable CAB-552, Power Supply 8-0935 And Power Cord 6003-0940)
  • Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Read More
$1,113.91
Recommended TrueSupport Coverage (/mo.)
Add to Quote
Datalogic PM9600 Barcode Scanner Model Overview
Depending on your application, the Datalogic PowerScan 9600 2D Barcode Scanner offers three different performance levels. The Standard Range variant has a single camera that can capture low density 1D and 2D codes within conventional reading ranges. Choose the High Performance reader with dual cameras for longer distance reading. Finally, the Document Capture methodology, which is exclusive to Datalogic, will take color photographs for quality control or signature confirmation. The 9600 Series scanners, like all Datalogic scanners, provide mild white light illumination and a successful ''Green Spot'' for a successful read, even on damaged or dirty barcodes, all at an affordable price for handheld scanners.
Datalogic PM9600-SR433RBK10 Barcode Scanner Overview

Bullet Proof Your Traceability Targets

The 9600 is the range-topping handheld industrial scanner in the best-selling PowerScan series from Datalogic, helping you smash your traceability targets. Achieving full traceability in manufacturing, intralogistics and retail environments is the number one priority faced by businesses today when faced with fulfilling consumer delivery demands. You need a tough device for handling the toughest jobs. This IP65 and IP67 rated scanner will withstand 2.5 m drops onto hard concrete, and the trigger is tested to resist up to 10 million hits. Even though it is impervious to dirt and water, it is wirelessly charged in its cradle. No more device failure due to grimy or corroded charging contacts. Maximum performance whilst protecting your bottom line at a great price!

Future Proof Your Connectivity

The PowerScan 9600series of 2D barcode scanner features all the standard benefits associated with Datalogic industrial handheld scanners, but now with embedded industrial connectivity, allowing simple interfacing with a PC, Industrial PC, Tablet, or PLCs. There is no need for third part devices as the communication modules are exchangeable in the cradle, and inline for the wired version. The plug and play architecture helps to maintain network integrity, and is easily configurable between RS-232, USB, USB-C, Ethernet, Ethernet I/P or Profinet. Any future standards or changes to your networking setup are easy to switch to within a matter of minutes.

Putting Power into Your Hands

The 9600 rugged barcode scanner range offers three different performance levels, depending on your application, with read rates 20% faster than competitive products. The Standard Range model is equipped with a single camera for capturing low density 1D and 2D codes within normal reading ranges. For longer distance reading, choose the High Performance reader with a dual camera. Finally, and unique to Datalogic, is the Document Capture model which will take color images for quality control or signatory confirmation. As with all Datalogic scanners, the PowerScan 9600 series provides gentle white light illumination and outputs a successful 'Green Spot' for a successful read, even on damaged or dirty barcodes, all at a great price for handheld scanners!

Taking Wireless to The Next Level

Industrial and warehouse environments are typically harsh and the use of large numbers of Wi-Fi and Bluetooth® equipped devices in an area can affect performance and result in downtime. Datalogic recommends the use of their proprietary narrow-band radio system - STAR. With no possibility of interference with other networks and an extended communication range that is completely bi-directional, you are guaranteed error free operations. Unlike Bluetooth, where there is a maximum of 7 devices linked to a single cradle, STAR more than doubles this to 16 devices. Operators can freely walk around large working areas with an industrial wireless barcode scanner, scanning items, inputting data from the built-in keypad, and gaining immediate feedback from the host on the large, bright OLED display.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:
Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D Codes:
Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Codee; Dot code

Postal Codes:
Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes:
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Image Sensor Type:
Imager
Scanner Range:
Standard Range
Display Screen:
Yes
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F
Minimum Print Contrast:
15%
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Black
  • Yellow
Height:
7.8"
Width:
3.1"
Length:
5.5"
Miscellaneous
Ingress Protection (IP) Rating:
  • IP65
  • IP67
Application/Usage:
  • Industrial
  • Warehouse
  • Manufacturing
  • Logistics
  • Retail
  • Inventory
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PM9600-SR433RBK10 Barcode Scanner is also known as PM9600SR433RBK10
