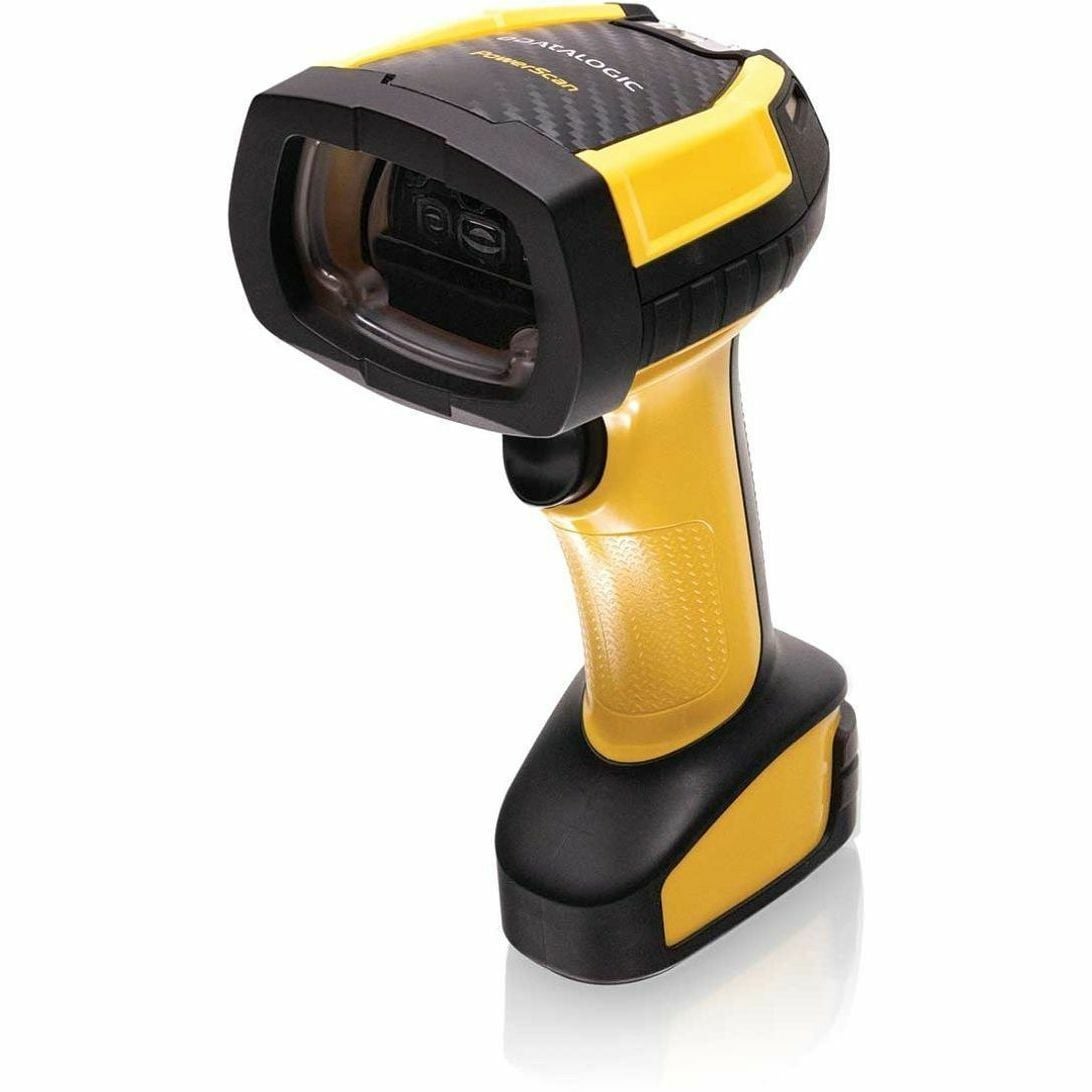

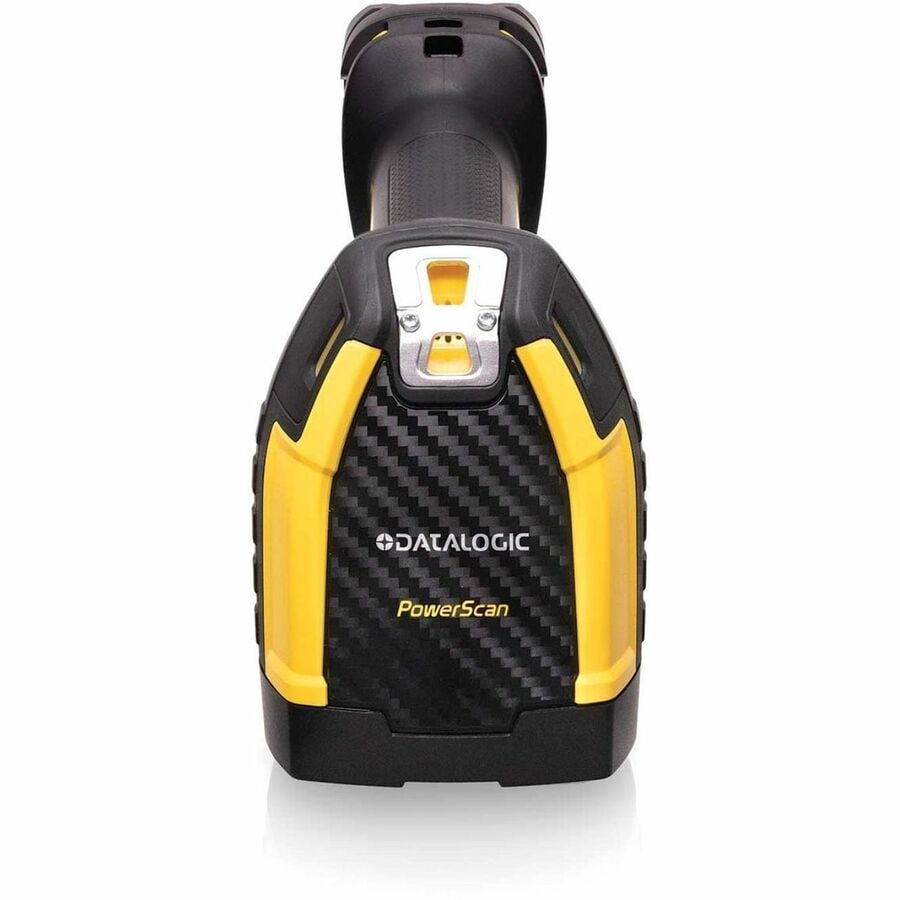

Datalogic PM9600 – Barcode Scanner

Part Number: PM9600-DKHP910RK10
Model: PM9600
3-year Premium Plus ($127.97)
3-year Premium ($73.27)
No Support
Add to My Shopping List Add to Compare
$1,102.49
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D / Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar linear codes.2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Codee; Dot codePostal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish PostStacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E CompositesDigital Watermarking: Digimarc Barcodes (HP and DC models)
Light Source
LED

Product Description:

  Barcode Scanners, Datalogic PM9600, High Performance, 910Mhz, Display/16-Key Keypad, Removeable Battery, USB Kit (Kit Includes Scanner, Cradle BC9630-910, Cable CAB-552, Power Supply 8-0935 And Power Cord 6003-0941)
Explore all Datalogic PM9600 Barcode Scanners
Add to Quote
Datalogic PM9600-DKHP910RK10 Barcode Scanner
Datalogic PM9600-DKHP910RK10 Barcode Scanner
Datalogic PM9600-DKHP910RK10 Barcode Scanner
Datalogic PM9600-DKHP910RK10 Barcode Scanner
Datalogic PM9600-DKHP910RK10 Barcode Scanner
Datalogic PM9600-DKHP910RK10 Barcode Scanner
Datalogic PM9600-DKHP910RK10 Barcode Scanner
Datalogic PM9600-DKHP910RK10 Barcode Scanner
Datalogic PM9600-DKHP910RK10 Barcode Scanner
Datalogic PM9600-DKHP910RK10 Barcode Scanner
Datalogic PM9600-DKHP910RK10 Barcode Scanner Datalogic PM9600-DKHP910RK10 Barcode Scanner Datalogic PM9600-DKHP910RK10 Barcode Scanner Datalogic PM9600-DKHP910RK10 Barcode Scanner Datalogic PM9600-DKHP910RK10 Barcode Scanner Datalogic PM9600-DKHP910RK10 Barcode Scanner Datalogic PM9600-DKHP910RK10 Barcode Scanner Datalogic PM9600-DKHP910RK10 Barcode Scanner Datalogic PM9600-DKHP910RK10 Barcode Scanner Datalogic PM9600-DKHP910RK10 Barcode Scanner
Full specifications (PDF)

Datalogic PM9600 Barcode Scanner Model Overview

The PowerScan™ PM9600 Datalogic handheld industrial scanner offers unparalleled performance in 1D/2D barcode reading, seamlessly integrating into tough industrial environments. With its ultra-rugged design and ergonomic shape, this scanner minimizes operator strain while maximizing efficiency. The intuitive aiming system guarantees high first-pass reading rates, while the cordless model, featuring Datalogic's STAR Cordless System™, ensures freedom of movement and safety. Its advanced battery life management allows for multiple shifts of intensive scanning, making it the ideal choice for manufacturing, warehousing, and logistics operations.


Key Features
  • Ultra-Rugged Design for industrial durability
  • Ergonomic Shape that reduces operator stress
  • Advanced Aiming System for highest first-pass reading rates
  • Datalogic's STAR Cordless System™ for improved mobility
  • Wireless Charging System for hassle-free maintenance
  • IP65 and IP67 Ratings for water and dust resistance

Specifications
  • Communication: Datalogic STAR Cordless System™, 433/910 MHz
  • Reading Capability: 1D, 2D, Postal Codes, Stacked Codes
  • Display: 1.8" OLED with user-selectable font dimensions
  • Battery: Lithium-Ion, 3350 mAh
  • Weight: PM9600-D/DK: 425g - 455g
  • Operating Temperature: -20°C to 50°C
  • Drop Resistance: Withstands 50 drops from 2.5m
  • Warranty: 3-Year Factory Warranty
Datalogic PM9600-DKHP910RK10 Barcode Scanner Overview

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

MODULARITY WITH THE BEST FLEXIBILITY

The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D Codes:

  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Codee; Dot code

Postal Codes:

  • Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes:

  • EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes (HP and DC models)


Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
  • Area
  • Omni-directional
Scanner Range:
Short Range
Scanning Distance:
95.60"
Features:
  • Beep
  • 3GL
  • Vibration
  • Notification LED
  • Ergonomic Design
Display Screen:
Yes
Number of Keys:
16
Cable Type Included:
USB
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
10 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
20kV
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Power Supply Included:
Yes
Input Current:
480 mA
Battery Information
Battery Included:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Maximum Battery Recharge Time:
3.20 Hour
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Color Family:
Dual Color
Product Color:
  • Black
  • Yellow
Durability:
Water Resistant
Height:
7.8"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
1 lb
Miscellaneous
Package Contents:
  • 1 x PowerScan PM9600 Barcode Scanner
  • 1 x Cradle
  • 1 x Cable
  • 1 x Power Supply
  • 1 x Power Cord
Ingress Protection (IP) Rating:
  • IP65
  • IP67
Application/Usage:
  • Industrial
  • Warehouse
  • Manufacturing
  • Logistics
  • Retail
  • Inventory
  • Assembly Line
  • Component Tracking
  • Picking
  • Sorting
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Batteries (1)
  • Docks and Cradles (4)
  • Mounting Hardware and Stands (1)

Recommended Accessories for Model: Datalogic PM9600-DKHP910RK10 Barcode Scanner

Top Batteries Purchased With Datalogic PM9600-DKHP910RK10

Top Docks and Cradles Purchased With Datalogic PM9600-DKHP910RK10

See All Docks and Cradles for Datalogic PM9600-DKHP910RK10 Barcode Scanner >

Top Mounting Hardware and Stands Purchased With Datalogic PM9600-DKHP910RK10

Frequently Asked Questions

The Standard Range PM9600 features a single camera for reading low-density 1D and 2D codes at conventional distances, while the High Performance variant includes dual cameras for extended reading ranges and greater depth of field. Both models deliver Datalogic's signature mild white light illumination and 'Green Spot' technology for reliable reads on damaged or dirty barcodes. We offer both configurations to match your specific warehouse or logistics scanning requirements.

Yes, this model operates on the 910 MHz frequency using Datalogic's STAR Cordless System with a wireless range of up to 30 meters (98 feet) in open air environments. The system supports seamless roaming and two-way communications, making it ideal for dynamic warehouse and logistics operations. Contact us today to discuss wireless configuration options for your facility.

The PM9600-DKHP910RK10 auto-discriminates all standard 1D linear codes including GS1 DataBar codes, as well as 2D codes such as Data Matrix and PDF417. It also supports stacked codes including Code 16K, Code 49, and GS1 DataBar variants. This broad compatibility ensures seamless integration with most inventory and supply chain management systems.

The PM9600 is built for industrial use with IP64 particulate and water sealing, 20 kV ESD protection, and the ability to withstand 50 drops from 2.0 meters (6.6 feet) to concrete. It operates reliably in temperatures from -20 to 50°C and maintains immunity to ambient light in offices and direct sunlight. These specifications make it suitable for demanding warehouse, logistics, and outdoor scanning applications.

The PM9600 features a Li-Ion 2150 mAh battery that delivers 60,000+ reads per charge with continuous reading. Charging takes 4 hours via external power (10-30 VDC) or 10 hours via host power (5 VDC). The included USB kit with cradle BC9630-910 and power supply ensures convenient charging and data synchronization for your mobile scanning workforce.

The complete kit includes the Datalogic PM9600 High Performance scanner, cradle BC9630-910, USB cable CAB-552, power supply 8-0935, and power cord 6003-0941. This comprehensive package provides everything needed for immediate deployment in your warehouse or logistics operation. Visit barcodesinc.com to verify current kit contents and availability.

The Datalogic PM9600-DKHP910RK10 Barcode Scanner is also known as DTL-PM9600DKHP910RK1 or PM9600DKHP910RK10.
