Datalogic PM9600 – Barcode Scanner

Part Number: PM9600-DHP910RBK10
Model: PM9600
3-year Premium Plus ($127.97)
3-year Premium ($73.27)
No Support
Add to My Shopping List Add to Compare
$1,028.67
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D: Auto discriminates all standard 1D codes including GS1 DataBar linear codes2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot CodePostal Codes: Australian Post British Post China Post IMB Japanese Post KIX Post Planet Code Postnet Royal Mail Code (RM4SCC)Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E CompositesDigital Watermarking: Digimarc Barcodes (HP and DC models)
Light Source
LED

Product Description:

  Barcode Scanners, Datalogic PM9600, High Performance, 910Mhz, Display/4-Key Keypad, Removeable Battery, USB Kit (Kit Includes Scanner, Cradle BC9630-910, Cable CAB-552, Power Supply 8-0935 And Power Cord 6003-0941)
Explore all Datalogic PM9600 Barcode Scanners
Add to Quote

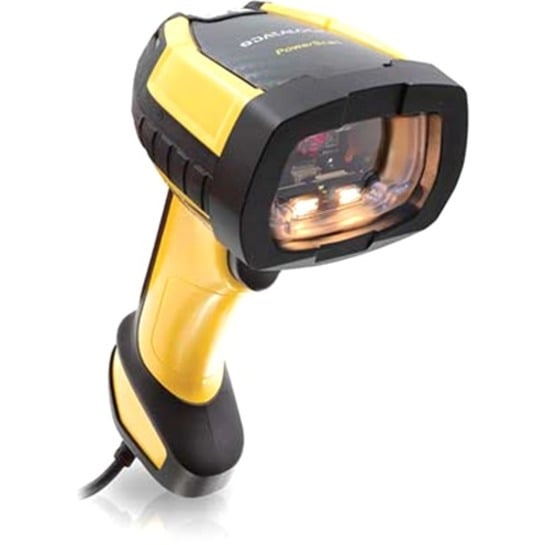

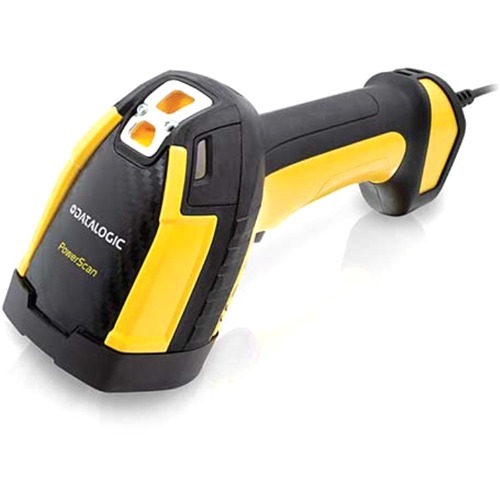

Datalogic PM9600-DHP910RBK10 Barcode Scanner
Datalogic PM9600-DHP910RBK10 Barcode Scanner
Datalogic PM9600-DHP910RBK10 Barcode Scanner
Datalogic PM9600-DHP910RBK10 Barcode Scanner
Datalogic PM9600-DHP910RBK10 Barcode Scanner
Datalogic PM9600-DHP910RBK10 Barcode Scanner
Datalogic PM9600-DHP910RBK10 Barcode Scanner
Datalogic PM9600-DHP910RBK10 Barcode Scanner
Datalogic PM9600-DHP910RBK10 Barcode Scanner
Datalogic PM9600-DHP910RBK10 Barcode Scanner
Datalogic PM9600-DHP910RBK10 Barcode Scanner Datalogic PM9600-DHP910RBK10 Barcode Scanner Datalogic PM9600-DHP910RBK10 Barcode Scanner Datalogic PM9600-DHP910RBK10 Barcode Scanner Datalogic PM9600-DHP910RBK10 Barcode Scanner Datalogic PM9600-DHP910RBK10 Barcode Scanner Datalogic PM9600-DHP910RBK10 Barcode Scanner Datalogic PM9600-DHP910RBK10 Barcode Scanner Datalogic PM9600-DHP910RBK10 Barcode Scanner Datalogic PM9600-DHP910RBK10 Barcode Scanner
Full specifications (PDF)

Datalogic PM9600 Barcode Scanner Model Overview

The PowerScan™ PM9600 Datalogic handheld industrial scanner offers unparalleled performance in 1D/2D barcode reading, seamlessly integrating into tough industrial environments. With its ultra-rugged design and ergonomic shape, this scanner minimizes operator strain while maximizing efficiency. The intuitive aiming system guarantees high first-pass reading rates, while the cordless model, featuring Datalogic's STAR Cordless System™, ensures freedom of movement and safety. Its advanced battery life management allows for multiple shifts of intensive scanning, making it the ideal choice for manufacturing, warehousing, and logistics operations.


Key Features
  • Ultra-Rugged Design for industrial durability
  • Ergonomic Shape that reduces operator stress
  • Advanced Aiming System for highest first-pass reading rates
  • Datalogic's STAR Cordless System™ for improved mobility
  • Wireless Charging System for hassle-free maintenance
  • IP65 and IP67 Ratings for water and dust resistance

Specifications
  • Communication: Datalogic STAR Cordless System™, 433/910 MHz
  • Reading Capability: 1D, 2D, Postal Codes, Stacked Codes
  • Display: 1.8" OLED with user-selectable font dimensions
  • Battery: Lithium-Ion, 3350 mAh
  • Weight: PM9600-D/DK: 425g - 455g
  • Operating Temperature: -20°C to 50°C
  • Drop Resistance: Withstands 50 drops from 2.5m
  • Warranty: 3-Year Factory Warranty
Datalogic PM9600-DHP910RBK10 Barcode Scanner Overview

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

WIRELESS CHARGING

The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes (HP and DC models)
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
  • Omni-directional
  • Area
Scanner Range:
Short Range
Scanning Distance:
95.60"
Features:
  • Beep
  • Notification LED
  • Ergonomic Design
  • Vibration
  • 3GL
  • LCD Display
Display Screen:
Yes
Number of Keys:
4
Cable Type Included:
Serial
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
  • Drop Resistance Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
10 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
20kV
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
  • USB
  • Serial
  • Ethernet
  • Multi-interface
Power Description
Power Supply Included:
Yes
Battery Information
Battery Included:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Maximum Battery Recharge Time:
3.20 Hour
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Color Family:
Dual Color
Product Color:
  • Yellow
  • Black
Durability:
  • Water Resistant
  • Dust Resistant
Height:
7.8"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
15.70 oz
Miscellaneous
Package Contents:
  • 1 x PowerScan 9600 PM9600 Barcode Scanner Kit
  • 1 x Cradle BC9630-910
  • 1 x Cable CAB-552
  • 1 x Power Supply 8-0935
  • 1 x Power Cord 6003-0941
Ingress Protection (IP) Rating:
  • IP65
  • IP67
Application/Usage:
  • Manufacturing
  • Warehouse
  • Logistics
  • Picking
  • Inventory
  • Asset Tracking
  • Sorting
  • Packing
  • Assembly Line
  • Component Tracking
  • Industrial
Environmentally Friendly:
Yes
Environmental Compliance:
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Batteries (1)
  • Docks and Cradles (4)
  • Mounting Hardware and Stands (1)

Recommended Accessories for Model: Datalogic PM9600-DHP910RBK10 Barcode Scanner

Top Batteries Purchased With Datalogic PM9600-DHP910RBK10

Top Docks and Cradles Purchased With Datalogic PM9600-DHP910RBK10

See All Docks and Cradles for Datalogic PM9600-DHP910RBK10 Barcode Scanner >

Top Mounting Hardware and Stands Purchased With Datalogic PM9600-DHP910RBK10

Frequently Asked Questions

The Standard Range PM9600 features a single camera for capturing low density 1D and 2D codes within conventional reading ranges, while the High Performance variant includes dual cameras for extended distance reading capabilities. Both models benefit from Datalogic's mild white light illumination and exclusive Green Spot technology for reliable reads on damaged or dirty barcodes. We offer both configurations to match your specific application requirements.

Yes, the PM9600 series includes Datalogic's exclusive Document Capture methodology, which enables color photograph capture for quality control or signature confirmation applications. This feature sets the PM9600 apart from standard barcode scanners and is available from us for operations requiring image documentation. Contact us today to discuss whether this capability fits your workflow needs.

The PM9600-DHP910RBK10 operates on the 910MHz frequency band, providing reliable cordless connectivity for handheld scanning operations. The kit includes a BC9630-910 cradle, USB cable (CAB-552), power supply (8-0935), and power cord (6003-0941) for complete deployment. Visit barcodesinc.com to verify compatibility with your existing infrastructure.

The High Performance PM9600 with dual cameras achieves 1D code resolution down to 2.5 mil and 2D code resolution to 4 mil, enabling reading of low-density through high-density barcodes. The scanner supports standard formats including Data Matrix and PDF417 codes with extended reading ranges compared to standard models. Our team can help you determine if this resolution meets your specific barcode density requirements.

Yes, the PM9600 series scanners are designed for industrial durability and can handle challenging warehouse conditions including exposure to damaged or dirty barcodes. The device features Datalogic's Green Spot technology and adjustable beeper feedback for reliable operation in demanding environments. Contact us today for detailed environmental specification information and application recommendations.

The PM9600-DHP910RBK10 includes a display with a 4-key configurable keypad, allowing operators to navigate functions and capture data efficiently in the field. The display provides clear visual feedback alongside Datalogic's audible and LED-based good-read indicators. We offer this configuration as part of our complete kit, and Visit barcodesinc.com to explore alternative keypad options if needed for your operation.

The Datalogic PM9600-DHP910RBK10 Barcode Scanner is also known as DTL-PM9600DHP910RBK1 or PM9600DHP910RBK10.
