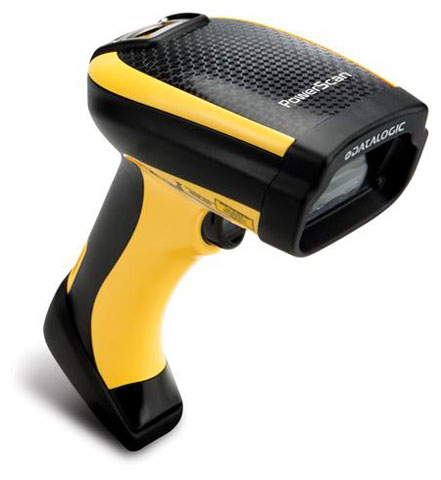

Datalogic PowerScan PM9501 – Barcode Scanner – Cordless – 2D – Scanner Only
Part Number:
PM9501-DKHP910RB
Model:
PowerScan PM9500
Full specifications (PDF)
Datalogic PowerScan PM9500 Barcode Scanner Model Overview
AIM, TRIGGER, DECODE: IT’S THAT SIMPLE!
An intuitive and effortless scanning experience is the target of the PowerScan™ 9500 series. They combine omnidirectional reading capabilities with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic’s latest decoding software guarantees snappy reading in any type of environment.
Key Features:
- High-performance Liquid Lens allows one model to read standard, wide and high density codes
- Snappy omnidirectional reading
- Intuitive aiming system
- Soft white light illumination
- Available with optional display and 4 or 16-key keyboards
- High speed 433 MHz and 910 MHz radio communications
- Point-to-point and multi-point transmission
- Networking and seamless roaming
- Multiple interfaces available
- Ethernet Connectivity (Standard and Industrial)
- Lithium-Ion battery replaces in 3 seconds!
- Datalogic’s Motionix™ motion-sensing technology
- Ergonomic shape
- Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
- Water and Particulate Sealing Rating: IP65
- In-field replaceable window and cradle contacts
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
MOBILITY ENHANCES PRODUCTIVITY
The Datalogic STAR Cordless System™ for narrow-band radio communications was developed specifically to maximize efficiency and reliability for handheld scanner data collection applications. The PowerScan PM9500 models are equipped with a new generation of the STAR-System that further improves the already outstanding features of versatility, ease of use and radio range.
The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
DEVELOPED WITH THE USER IN MIND
Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort.
The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.
INDUSTRY - APPLICATION • Entertainment: • Access Control • Mobile Coupons • Ticket Validation • Security / Age Verification • Lottery • Manufacturing Shop Floor: • Work-in-Progress • Sub-Assembly • Component Tracking • Quality Control • Time and Cost Analysis • Machine Replenishment /Configuration • Line Inventory Control • Warehouse and Logistic Centers: • Shipping / Receiving • Parcel Preparation • Picking / Put Away • Automatic Sorting Back-Up • End of Line Sorting
Brand
Datalogic
Model
PowerScan PM9501
Included Cables
USB
Removable Battery
Yes
Kit Options
Scanner Only
Scanner Type
Imager
Scanner Capability
2D
Color
Yellow
Interface Options
Bluetooth
Connectivity
Cordless
