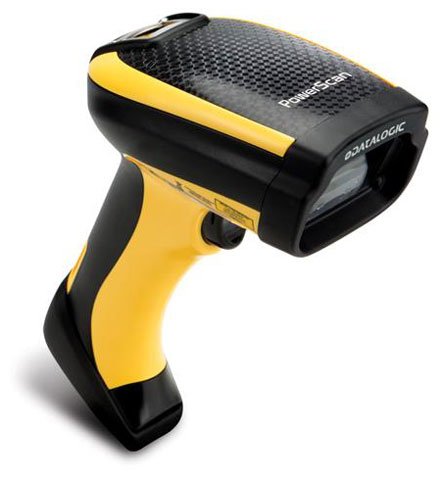

Datalogic PowerScan PM9501 – Barcode Scanner – Cordless – 2D – Standard Range – Scanner with Cable and Cradle

Part Number: PM9501-910RBK20
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless
Form Factor
Handheld
Interface Options
Serial
Scanner Capability
2D

Product Description:

  Cordless Barcode Scanner, Datalogic PowerScan PM9501, 2D Area Imager, Rugged, Handheld, 910 MHz, RS-232, Black/Yellow, Standard Range, Removable Battery. Kit inc. Barcode Scanner, Base Station BC9030-910, Power Brick 8-0935, and Power Cord 6003-0941

DataLogic PowerScan PM9501 Barcode Scanner Model Overview

The PowerScan™ PM9501 from Datalogic offers an effortless and intuitive scanning experience, designed to enhance productivity in various environments. With its omnidirectional reading capabilities, this high-performance scanner efficiently decodes any type of barcode from contact up to 1.0 m / 3.3 ft away, while the advanced decoding software ensures quick and accurate scanning. Its ergonomic design promises superior comfort and usability, making it ideal for extensive scan-intensive applications. The high-capacity Lithium-Ion battery allows for exceptional performance, ensuring you can rely on the PowerScan PM9501 to meet your operational demands.


Key Features

  • High-performance Liquid Lens for reading standard, wide, and high-density codes
  • Omnidirectional scanning for versatile barcode reading
  • Ergonomic handle reduces wrist strain
  • User-friendly interface with optional display and customizable keypads
  • Soft white light illumination for improved visibility
  • Multiple wireless communication options including Standard and Industrial Ethernet
  • IP65 rated for protection against dust and water

Specifications

  • Dimensions: Cradle: 24.0 x 10.8 x 9.5 cm; PM9501: 21.2 x 11.0 x 7.4 cm
  • Weight: PM9501-XX: 400 g; PM9501-DKXX: 445 g
  • Battery: Lithium-Ion 3350 mAh, Reads per charge: 60,000+
  • Radio Frequency: 433 MHz (200 m low speed), 910 MHz (270 m low speed)
  • Operating Temperature: -20 to 50 °C
  • Drop Resistance: Up to 50 drops from 2.0 m onto concrete
  • Sealing Rating: IP65 for dust and water resistance
  • Connectivity: Ethernet, USB, RS-232, and more
Datalogic PM9501-910RBK20 Barcode Scanner Overview

Enhance your user experience

The range-topping PowerScan 9500 series of corded and cordless handheld scanners from Datalogic are designed and built for the most demanding applications and environments. These feature-rich 1D and 2D imagers offer rugged build quality for use in Manufacturing, Transportation & Logistics, Retail, and Healthcare. Outstanding robustness and excellent reading performance are the key reasons for the long-standing success of the PowerScan 9500 model variants, providing speed and reliability when managing goods and tracking parts or materials. The omnidirectional and long-range scanning capabilities let you read all types of codes from any angle, with perfect good-read feedback every time. The PowerScan DPM models include the latest optics and software from Datalogic, to make the reading of codes with DPM easier and more intuitive. There are enough connectivity and networking options to suit all your needs. Your job is simple: aim, trigger, decode.

Keep on working

The PowerScan 9500 series performance is unmatched in the handheld scanner sector. Each unit is built to last and the model is tested to an incredible 10 million trigger hits. You can work comfortably from shift to shift, with the full knowledge that the IP65 rating will keep you free from particulate contamination and water ingress, as well as the ability to withstand at least 50 drops onto concrete from a height of 2 m. This resilience ensures that you get the lowest possible total cost of ownership as your PowerScan continues to perform day in and day out. The scanner window, cradle contacts, and battery are all easily replaceable in the field so that you can keep on working with minimal disruption. The PowerScan 9500 range is the only scanner you will need.

Focus on technology

The PowerScan 9500 range is extensive enough to cover the most diverse applications. Whether you require a wired or cordless model, with or without physical keys, or require long distance code reading capability, there is a model to suit your needs. Datalogic has equipped the PowerScan 9500 series with 3GL (Three Green Lights) technology to ensure optimum good-read feedback. With the unique Green Spot visual feedback on the object you are scanning, you also have a direct visual green indicator feedback on the top and rear of the unit. All of this is accompanied with a loud beep when the operator is working in conditions where visibility is poor. The reading performance is further enhanced on models equipped with liquid lens technology for reading of combined standard, wide, and high-density codes.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D :
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D :
  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanner Range:
Standard Range
Display Screen:
Yes
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
40°
Reading Angle (Pitch):
40°
Reading Angle (Roll):
360°
Image Formats:
  • BMP
  • JPEG
  • TIFF
Maximum Ambient Light:
100000 lux
Drop Specification:
Cradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface
All models: Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface

Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
7.5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
10 mil
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
  • Keyboard Wedge
  • Serial
  • USB
  • Ethernet
Battery Information
Battery Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Product Color:
  • Yellow
  • Black
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Ticketing
  • Manufacturing
  • Asset Tracking
  • Inventory
  • Warehouse
  • Logistics
  • Picking
