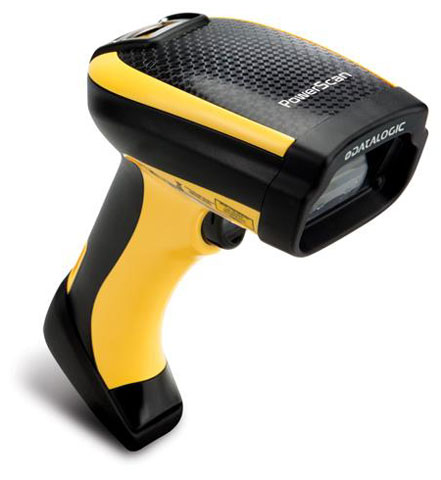

Datalogic PM9501-910RBK10 Barcode Scanner

Datalogic PowerScan PM9501 - Cordless Barcode Scanner, Datalogic PowerScan PM9501, 2D Area Imager, Rugged, Handheld, 910 MHz, Black/Yellow, Standard Range, Removable Battery. Kit inc. Barcode Scanner, Base Station BC9030-910, Power Brick 8-0935, Power Cord 6003-0941, and USB Cable
  • Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Streamline your business processes with an imager that point-shoots with high-performance scanning
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
Read More
$972.99
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Quantity Unit Price Discount
2 $963.26 1% OFF
5 $943.80 3% OFF
Add to Quote
Datalogic PowerScan PM9500 Barcode Scanner Model Overview
The Datalogic PowerScan PM9500 area imager is a ruggedized cordless reader suitable for all demanding applications. The PowerScan PM9500 scanner is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic?s latest decoding software guarantees snappy reading from the PowerScan PM9500 in any type of environment. It is equipped with a new generation of the Datalogic STAR Cordless System, the proprietary radio from Datalogic, which further improves the PowerScan PM9500's outstanding features of versatility, ease-of-use and radio range.
Datalogic PM9501-910RBK10 Barcode Scanner Overview

Enhance your user experience

The range-topping PowerScan 9500 series of corded and cordless handheld scanners from Datalogic are designed and built for the most demanding applications and environments. These feature-rich 1D and 2D imagers offer rugged build quality for use in Manufacturing, Transportation & Logistics, Retail, and Healthcare. Outstanding robustness and excellent reading performance are the key reasons for the long-standing success of the PowerScan 9500 model variants, providing speed and reliability when managing goods and tracking parts or materials. The omnidirectional and long-range scanning capabilities let you read all types of codes from any angle, with perfect good-read feedback every time. The PowerScan DPM models include the latest optics and software from Datalogic, to make the reading of codes with DPM easier and more intuitive. There are enough connectivity and networking options to suit all your needs. Your job is simple: aim, trigger, decode.

Keep on working

The PowerScan 9500 series performance is unmatched in the handheld scanner sector. Each unit is built to last and the model is tested to an incredible 10 million trigger hits. You can work comfortably from shift to shift, with the full knowledge that the IP65 rating will keep you free from particulate contamination and water ingress, as well as the ability to withstand at least 50 drops onto concrete from a height of 2 m. This resilience ensures that you get the lowest possible total cost of ownership as your PowerScan continues to perform day in and day out. The scanner window, cradle contacts, and battery are all easily replaceable in the field so that you can keep on working with minimal disruption. The PowerScan 9500 range is the only scanner you will need.

Focus on technology

The PowerScan 9500 range is extensive enough to cover the most diverse applications. Whether you require a wired or cordless model, with or without physical keys, or require long distance code reading capability, there is a model to suit your needs. Datalogic has equipped the PowerScan 9500 series with 3GL (Three Green Lights) technology to ensure optimum good-read feedback. With the unique Green Spot visual feedback on the object you are scanning, you also have a direct visual green indicator feedback on the top and rear of the unit. All of this is accompanied with a loud beep when the operator is working in conditions where visibility is poor. The reading performance is further enhanced on models equipped with liquid lens technology for reading of combined standard, wide, and high-density codes.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D :
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D :
  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanner Range:
Standard Range
Display Screen:
Yes
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
40°
Reading Angle (Pitch):
40°
Reading Angle (Roll):
360°
Image Formats:
  • BMP
  • JPEG
  • TIFF
Maximum Ambient Light:
100000 lux
Drop Specification:
Cradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface
All models: Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface

Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
7.5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
10 mil
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
  • Keyboard Wedge
  • Serial
  • USB
  • Ethernet
Battery Information
Battery Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Product Color:
  • Yellow
  • Black
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Ticketing
  • Manufacturing
  • Asset Tracking
  • Inventory
  • Warehouse
  • Logistics
  • Picking
Item Numbers
GTIN: 0746175924924
UPC: 746175924924
EAN: 0746175924924
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PM9501-910RBK10 Barcode Scanner is also known as DTL-PM9501910RBK10 or PM9501910RBK10.
