Datalogic PM9300-D910RBK10 Barcode Scanner

Datalogic PowerScan PM9300 - PowerScan PM9300-D Handheld Barcode scanner Kit - Wireless Connectivity - 104 scan/s - 1D - Laser -, Radio Frequency - Yellow, Black
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 104 scan/s
Read More

Full specifications (PDF)

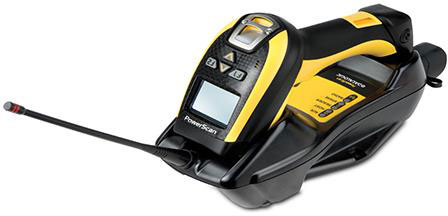

The PowerScan PM9300 is the basic cordless model of Datalogic's line of laser auto-range scanners. The PM9300 features Datalogic's exclusive 3 Green Lights for superior good-read feedback. The patented 'Green Spot' directly on the code and the dual Good Read LEDs on the top and back of the cap add increased visibility at any angle. The BC9180 base for the PM9300 includes two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
Datalogic PM9300-D910RBK10 Overview

The PowerScan™ PM9300 series includes different models able to satisfy all customers' needs; the PM9300 is the basic cordless model, the PM9300-D intermediate model includes a display and 4-key keypad, and the ultimate PM9300-DK model features a display with a full 16-key keyboard. The PM9300-DK model significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal.

Narrow band radio communications with Datalogic's STAR Cordless System™ 2.0 provides the key to increased productivity and flexibility in the workplace. It offers scalable solutions from simple point-to-point applications to networking capabilities combined with seamless roaming for complex installations.

The PM9300 readers feature Datalogic's exclusive 3 Green Lights (3GL™) for superior good-read feedback. The patented 'Green Spot' directly on the code and dual Good Read LEDs on the top and back of the cap add increased visibility at any angle.

FEATURES

  • Optics available in:
    • Standard Range: contact up to 1.6 m / 5.2 ft
    • Auto Range: up to 11.5 m / 37.0 ft on reflective codes
  • 100% Compatible with Datalogic's STAR Cordless System
  • Radio frequencies available in 433 or 910 MHz
  • Point-to-point and multi-point transmission
  • Seamless roaming
  • Ethernet Connectivity (Standard and Industrial)
  • Datalogic 3GL™ and loud beeper for good-read feedback
  • Drop resistance to 2.0 m / 6.5 ft
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment
Loading...

Full specifications (PDF)

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:
  • GS1 DataBar™ linear codes
  • UPC/EAN
  • UPC/EAN P2/P5 add ons
  • UPC/EAN Coupons
  • ISBN
  • Code 128
  • EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 32
  • Codabar
  • Interleaved 2 of 5
  • IATA
  • Industrial 2 of 5
  • Standard 2 of 5
  • Code 11
  • MSI
  • Plessey
  • Code 93
  • Follet 2/5
  • Code 4
  • Code 5
  • Datalogic 2 of 5
  • Codablock F
Light Source:
Laser
Scan Rate:
104 scan/s
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
  • Yellow
  • Black
Weight (Approximate):
14.29 oz
Item Numbers
UNSPSC: 43211701

Loading...

The Datalogic PM9300-D910RBK10 is also known as Data Logic PM9300-D910RBK10 or PM9300D910RBK10 .
