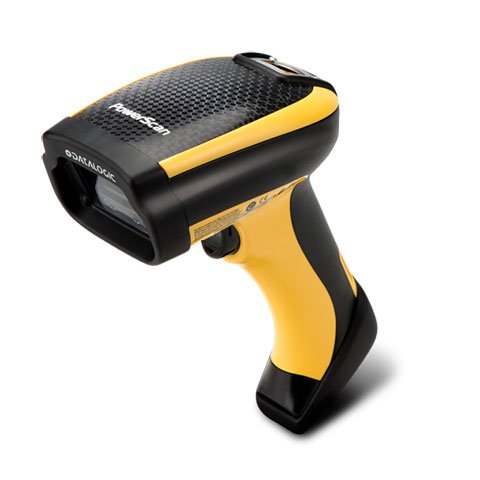

Datalogic PowerScan PM9100 – Barcode Scanner – 1D

Part Number: PM9100-D433RBK20
Model: PowerScan PM9100
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Scanner Capability
1D
Scanner Type
Imager

Product Description:

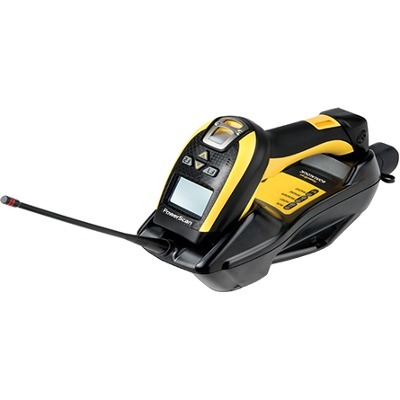

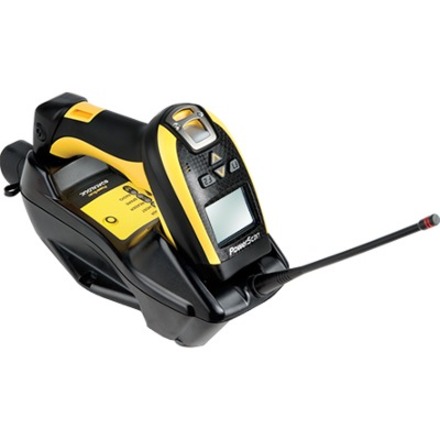

  Cordless Barcode Scanner, Datalogic PowerScan PM9100, 1D Linear Imager, Rugged, Handheld, 433 MHz, Removable Battery, Black/Yellow, 4-Key Display, RS-232 Serial Kit, EU. Kit Includes Scanner (Part# PM9100-D433RB), Communication Base (Part# BC9030-433), Cable (Part# CAB-433), Power Supply (Part# 8-0935)(Part# 6003-0940).

DataLogic PowerScan PM9100 Barcode Scanner Model Overview

The new PowerScan PM9100 scanner includes Datalogic's innovative green 'laser-like' acquisition system, based on a pioneering miniaturized scan engine with outstanding 1D decoding capability. The PM9100 reader features Datalogic's exclusive 3GL (3 Green Lights) for superior good-read feedback. The PM9100 offers scalable solutions as well as network connections combined with seamless roaming for complex installations. The PM9100 scanner has been tested to withstand extreme environmental conditions and is suitable for even the toughest industrial applications.
Datalogic PM9100-D433RBK20 Barcode Scanner Overview

TECHNOLOGY DRIVEN
The new PowerScan™ PM9100 series includes Datalogic's innovative new technology, a green 'laser-like' acquisition system based on a pioneering miniaturized scan engine with outstanding 1D decoding capability. The PM9100 readers feature Datalogic's exclusive 3GL™ (3 Green Lights) for superior good-read feedback.

DATALOGIC'S STAR CORDLESS SYSTEM™
The PM9100 reader is based on Datalogic's STAR Cordless System™ 2.0, a proprietary narrow band radio system that offers scalable solutions from simple point-to-point applications to point-to-multipoint applications as well as network connections combined with seamless roaming for complex installations, making the STAR 2.0 Cordless System the most versatile and effective radio system, without interference caused by existing wireless solutions (Wi-Fi and/or Bluetooth).

BUILT TO LAST
The PM9100 reader has been tested to withstand extreme environmental conditions and is suitable for the toughest industrial applications.

DEVELOPED WITH THE USER IN MIND
The PowerScan PM9100 series includes different models able to satisfy all customers' needs; the product is available in a basic cordless model and in two different versions with display and 4 or 16-key keypads. The BC9180 base includes one model with two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus. PM9100 reader is fully supported with Datalogic's Aladdin™ configuration program, providing a user-friendly interface for the start-up procedure and device programming.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:

1D:

  • GS1 DataBar™ linear codes
  • UPC/EAN
  • UPC/ EAN P2/P5 add ons
  • UPC/EAN Coupons
  • ISBN
  • Code 128
  • EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 CIP
  • Code 32
  • Codabar
  • Interleaved 2 of 5
  • IATA
  • Industrial 2 of 5
  • Standard 2 of 5
  • Code 11
  • MSI
  • Plessey
  • Code 93
  • Follet 2/5
  • Code 4
  • Code 5
  • Datalogic 2 of 5
  • Codablock F
Image Sensor Type:
Imager
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
  • Keyboard Wedge
  • USB
  • Serial
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Weight (Approximate):
15.34 oz
Item Numbers
UNSPSC: 43211701
