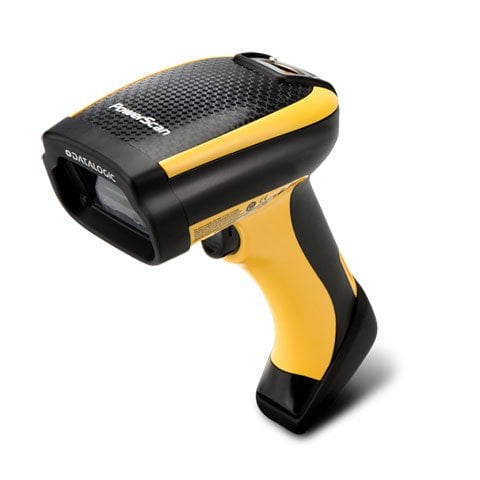

Datalogic PowerScan PM9100 Barcode Scanner Model Overview
The new PowerScan PM9100 scanner includes Datalogic's innovative green 'laser-like' acquisition system, based on a pioneering miniaturized scan engine with outstanding 1D decoding capability. The PM9100 reader features Datalogic's exclusive 3GL (3 Green Lights) for superior good-read feedback. The PM9100 offers scalable solutions as well as network connections combined with seamless roaming for complex installations. The PM9100 scanner has been tested to withstand extreme environmental conditions and is suitable for even the toughest industrial applications.
TECHNOLOGY DRIVEN The new PowerScan™ PM9100 series includes Datalogic's innovative new technology, a green 'laser-like' acquisition system based on a pioneering miniaturized scan engine with outstanding 1D decoding capability. The PM9100 readers feature Datalogic's exclusive 3GL™ (3 Green Lights) for superior good-read feedback.
DATALOGIC'S STAR CORDLESS SYSTEM™ The PM9100 reader is based on Datalogic's STAR Cordless System™ 2.0, a proprietary narrow band radio system that offers scalable solutions from simple point-to-point applications to point-to-multipoint applications as well as network connections combined with seamless roaming for complex installations, making the STAR 2.0 Cordless System the most versatile and effective radio system, without interference caused by existing wireless solutions (Wi-Fi and/or Bluetooth).
BUILT TO LAST The PM9100 reader has been tested to withstand extreme environmental conditions and is suitable for the toughest industrial applications.
DEVELOPED WITH THE USER IN MIND The PowerScan PM9100 series includes different models able to satisfy all customers' needs; the product is available in a basic cordless model and in two different versions with display and 4 or 16-key keypads. The BC9180 base includes one model with two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus. PM9100 reader is fully supported with Datalogic's Aladdin™ configuration program, providing a user-friendly interface for the start-up procedure and device programming.
Base Station, Datalogic PowerScan 9501 Series, Dual Charger, 910 MHz, Multi-Interface (RS-232, USB, KBD Wedge and RS485), Spare Battery Slot, for North America
Base Presentation Charger, Datalogic PowerScan 9501 Retail, BC9030, 910MHz, Multi-Interface (RS-232, USB and Keyboard Wedge), Black, Must Order USB or RS-232 and Power Supply Separately
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Ease of Care Agreement, Datalogic PowerScan 9100 Linear Imager Series, PD91, Overnight Replacement, 3 Years, Comprehensive, Service, Service Depot, Exchange, Physical Service
In Stock
$65.70
Top Wireless Access Points Purchased With Datalogic PM9100-910RBK10
What barcode types does the Datalogic PM9100-910RBK10 scanner decode?
The PM9100 features autodiscriminating 1D linear code capability, reading all standard 1D codes including GS1 DataBar linear codes, as well as 2D codes like QR Code, Data Matrix, Aztec Code, and postal codes. It also supports stacked codes such as PDF417, MicroPDF417, and GS1 DataBar Composites, making it versatile for warehouse and logistics applications.
How long does the battery last on a single charge?
The PM9100 is equipped with a Lithium-Ion 2150 mAh battery that delivers 50,000+ continuous reads per charge. The battery charges in 4 hours with external power or 10 hours using host power, and can be replaced in just 3 seconds for minimal downtime in busy warehouse environments.
What is the wireless range of this cordless barcode scanner?
The PM9100-910RBK10 operates on the 910 MHz frequency with an open-air radio range of up to 100 meters (328 feet) at low speed, featuring seamless roaming and two-way communications. The system supports point-to-point configuration and multi-point configuration with up to 16 readers per radio receiver, ideal for large warehouse operations.
Is the Datalogic PM9100 durable enough for harsh warehouse environments?
Yes, the PM9100 is built for rugged warehouse use with an IP65 water and particulate sealing rating, withstands 50 drops from 2.0 meters (6.6 feet) to concrete, and operates in temperatures from -20°C to 50°C (-4°F to 122°F). It also features 20 kV ESD protection and is immune to ambient light exposure, including direct sunlight.
What connectivity options are available with this scanner?
The PM9100 offers multiple interface options including Keyboard Wedge, RS-232, RS-485, and USB (OEM USB, USB COM, USB HID Keyboard), with optional Ethernet connectivity available in both Standard and Industrial configurations. This flexibility allows seamless integration with various warehouse management systems and legacy equipment.
What's included in the PM9100-910RBK10 kit?
This kit includes the Datalogic PowerScan PM9100-910RB cordless barcode scanner, the BC9030-910 communication base, and the necessary power supply components (6003-0911 and 8-0935). Contact us today at barcodesinc.com to verify current kit configurations and ensure you have everything needed for your warehouse operations.
The Datalogic PM9100-910RBK10 Barcode Scanner is also known as
DTL-PM9100910RBK10
or PM9100910RBK10.
Full specifications (PDF)
