Datalogic PM8500-910RK11 Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Datalogic PowerScan PM8500 - POWERSCAN M8500 910 RB USBKIT & BC8060
Datalogic 3 Green Lights and loud beeper for good read feedback

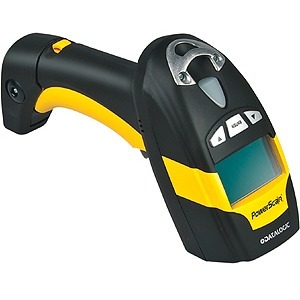

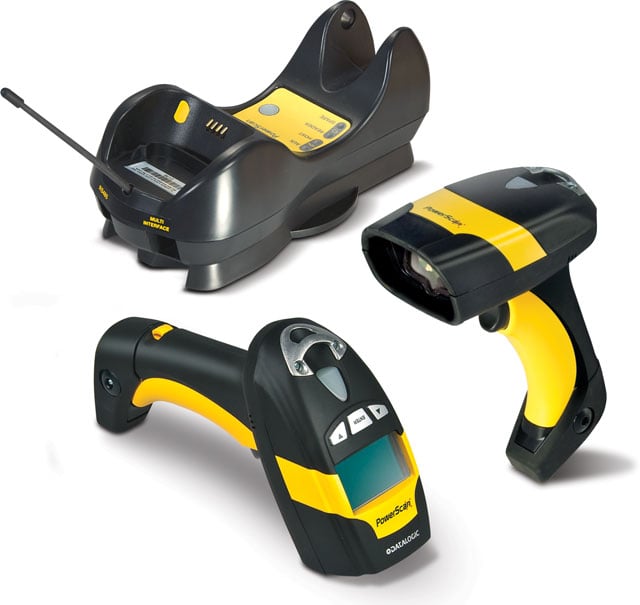

The Datalogic PowerScan PM8500 cordless area imager offers omnidirectional reading of 1D and 2D codes combined with unlimited mobility guaranteed by the Datalogic STAR Cordless System. The PowerScan PM8500 reader's feature a high-resolution Megapixel imaging sensor that is capable of outstanding performance in industrial applications. It is offered in three optic models: Standard Range and High Density models are for typical barcode reading conditions (for medium and high-resolution codes respectively), the Wide Angle model offers a wider field of view allowing the capture of larger and longer codes.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Scanning Distance: 11.80"
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • Aztec Mesas
    • Data Matrix
    • MaxiCode
    • QR Code
    • Postal Codes:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • Aztec Mesas
    • Data Matrix
    • MaxiCode
    • QR Code
    • Postal Codes:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 6.60 mil
  • Depth of Field:
    • 2.90" - 6.10"@5 mil
    • 3.10" - 7.30"@5 mil - PDF
    • 3.10" - 6.50"@7.50 mil - Data Matrix/QR
    • 2.10" - 9.70"@10 mil
    • 2.70" - 7.70"@10 mil - Data Matrix/QR
    • 1.50" - 10"@10 mil - PDF
    • 1.90" - 10.60"@13 mil
    • 2.10" - 14.40"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PM8500
  • Product Name: PowerScan PM8500 Handheld Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8.1"
  • Width: 2.7"
  • Depth: 4.5"
  • Weight (Approximate): 12.70 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • China RoHS
    • RoHS
  • Package Contents:
    • PowerScan PM8500 Handheld Barcode Reader
    • Power Supply
    • Power Cord with US Plug
    • PowerScan PM8500 Handheld Barcode Reader
    • Power Supply
    • Power Cord with US Plug

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Radio Frequency: Yes

Full specifications (PDF)
