Datalogic PM8500-910RK10 Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review
Datalogic PM8500 - USB Kit, 2D Imager, Standard Range, No Display or Keypad, 910 MHz, Removable Battery. Includes Base Station (Part# BC8030-910), USB Cable (Part# CAB-438), Power supply, and US Line Cord.
Datalogic 3 Green Lights and loud beeper for good read feedback

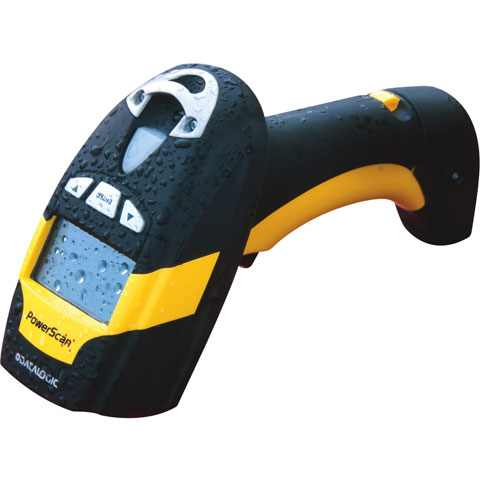

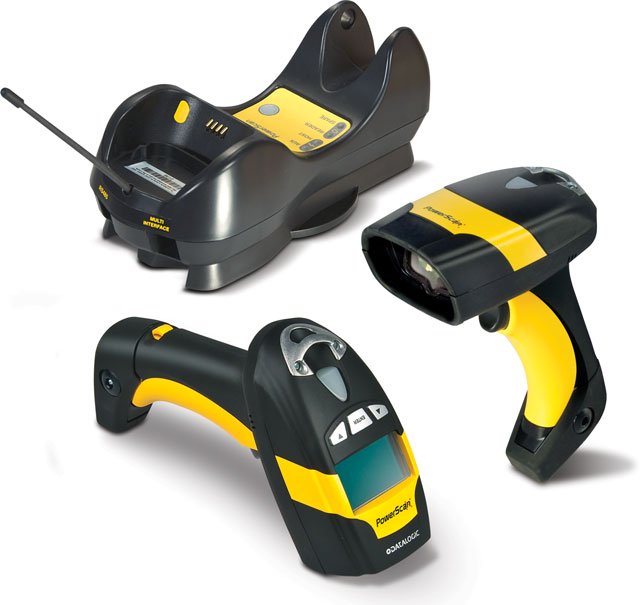

The Datalogic PowerScan PM8500 cordless area imager offers omnidirectional reading of 1D and 2D codes combined with unlimited mobility guaranteed by the Datalogic STAR Cordless System. The PowerScan PM8500 reader's feature a high-resolution Megapixel imaging sensor that is capable of outstanding performance in industrial applications. It is offered in three optic models: Standard Range and High Density models are for typical barcode reading conditions (for medium and high-resolution codes respectively), the Wide Angle model offers a wider field of view allowing the capture of larger and longer codes.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Scanning Distance: 11.80"
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / LINEarcodeS:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes.
    • 2D CODES:
    • Aztec Code
    • Aztec Mesas
    • Data Matrix
    • MaxiCode
    • QR Code
    • POSTAL CODES:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • STACKED CODES:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / LINEarcodeS:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes.
    • 2D CODES:
    • Aztec Code
    • Aztec Mesas
    • Data Matrix
    • MaxiCode
    • QR Code
    • POSTAL CODES:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • STACKED CODES:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 7.50 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PM8500
  • Product Name: PM8500 Handheld Barcode Reader

Physical Characteristics

  • Height: 8.1"
  • Width: 4.5"
  • Depth: 2.7"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 12.70 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS
  • Additional Information:
    • READING ANGLE:
    • Pitch: +/- 35°
    • Roll (Tilt): 360°
    • Skew (yaw): +/- 40°

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Radio Frequency: Yes

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)
