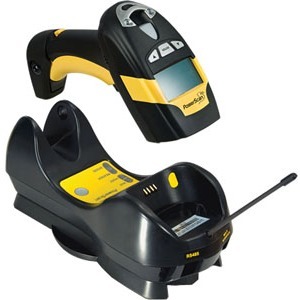

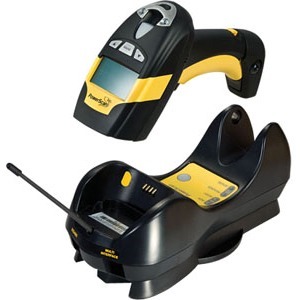

Datalogic PM8300-DKAR910RK10 Barcode Scanner

The Datalogic PM8300-DKAR910RK10 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic PowerScan PM8300 - Datalogic PowerScan PM8300-DK Handheld Barcode Scanner Kit - Wireless Connectivity - 35 scan/s - Laser - , Radio Frequency - USB
  • Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
  • Scan barcodes with a staggering speed of 35 scan/s
  • Powerful laser scan source provides 35 scan/s decode rate
  • Increase productivity and performance by excluding the cable
Read More
Discontinued Need Assistance?
Add to Quote
Datalogic PowerScan PM8300 Barcode Scanner Model Overview
The Datalogic PowerScan PM8300, featuring the STAR Cordless System for narrow band radio communications, represents the key to increased productivity and flexibility in the workplace. It offers scalable solutions to solve simple point-to-point applications as well as networking capability combined with seamless roaming for complex projects. An optional display with a 3-button keypad provides time and battery status and enables interaction with the host. The PowerScan PM8300 readers' mechanics have been developed and tested to withstand extreme environmental conditions maintaining consistent reading performance. Hard shocks (6.5 ft / 2 m drops), dust and water (IP65/IP64 sealed) and adverse temperature conditions (operative at -22F / -30C) do not affect product performance or reliability.
Datalogic PM8300-DKAR910RK10 Barcode Scanner Overview

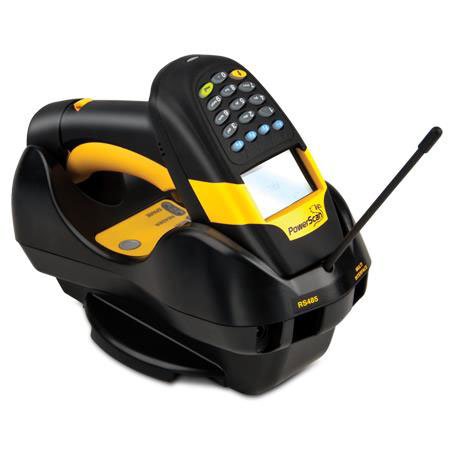

The PowerScan PM8300 cordless laser scanners are Datalogic Scanning's premium line of rugged industrial handheld data collection products for linear codes. The PowerScan PM8300 series includes different models able to satisfy all customers' needs; the PM8300 is the basic cordless model; the PM8300-D intermediate model includes a display and 3-key keypad; and the ultimate PM8300-DK model features a display and a full 16-key keyboard. The PM8300-DK model significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal. The mobile phone-like keyboard allows for the manual entering of bar codes that are not readable and enables easy management of simple code-quantity applications like inventory, picking, receiving, etc.

Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes including GS1 DataBar linear Codes

Stacked Codes:

  • Code 16K
  • Code 49
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Light Source:
Laser
Scan Rate:
35 scan/s
Maximum Scan Resolution:
7.50 mil
Depth of Field:
  • 2.7" - 18.3"@7.5mil
  • 4.2" - 39.3"@10mil
  • 5" - 58"@13mil
  • 2.7" - 85"@20mil
  • 6.3" - 133.8"@40mil
  • 0.7" - 13.5"@55mil
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Height:
8.3"
Width:
4.5"
Depth:
2.7"
Weight (Approximate):
13.90 oz
Miscellaneous
Package Contents:
  • PowerScan PM8300-DK Handheld Bar Code Reader
  • Base Station
  • Power Supply Cable
  • Power Cord with US Plug
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0012303723746, 0029156032864
UPC: 012303723746, 029156032864
EAN: 0012303723746, 0029156032864
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PM8300-DKAR910RK10 Barcode Scanner is also known as DTL-PM8300DKAR910RK1 or PM8300DKAR910RK10.
