Datalogic PowerScan PM8300 Barcode Scanner Model Overview

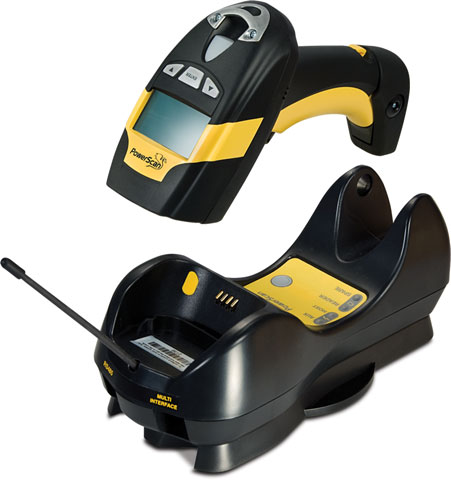

The Datalogic PowerScan PM8300, featuring the STAR Cordless System for narrow band radio communications, represents the key to increased productivity and flexibility in the workplace. It offers scalable solutions to solve simple point-to-point applications as well as networking capability combined with seamless roaming for complex projects. An optional display with a 3-button keypad provides time and battery status and enables interaction with the host. The PowerScan PM8300 readers' mechanics have been developed and tested to withstand extreme environmental conditions maintaining consistent reading performance. Hard shocks (6.5 ft / 2 m drops), dust and water (IP65/IP64 sealed) and adverse temperature conditions (operative at -22F / -30C) do not affect product performance or reliability.

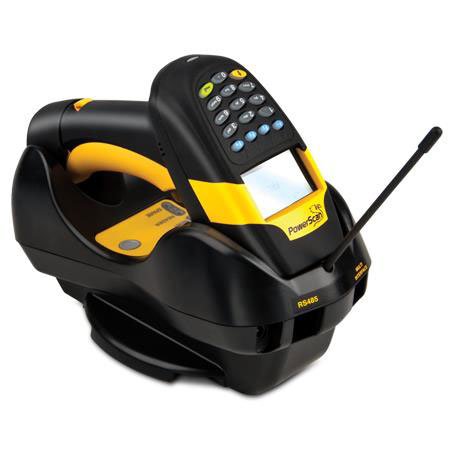

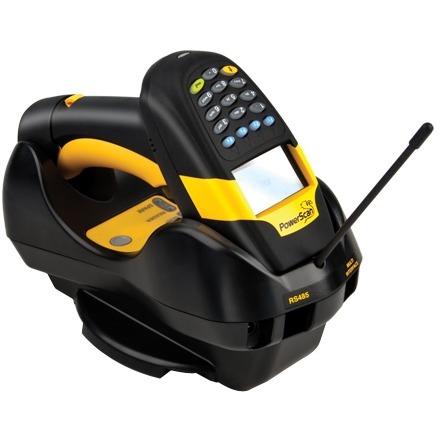

The PowerScan PM8300 cordless laser scanners are Datalogic Scanning's premium line of rugged industrial handheld data collection products for linear codes. The PowerScan PM8300 series includes different models able to satisfy all customers' needs; the PM8300 is the basic cordless model; the PM8300-D intermediate model includes a display and 3-key keypad; and the ultimate PM8300-DK model features a display and a full 16-key keyboard. The PM8300-DK model significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal. The mobile phone-like keyboard allows for the manual entering of bar codes that are not readable and enables easy management of simple code-quantity applications like inventory, picking, receiving, etc.
What are the main applications for the Zebra FXP20 RFID Reader?
The Zebra FXP20 is purpose-built for retail environments and excels in staffed checkout, self-checkout, inventory control, and loss detection. Its integrated antenna and compact design make it ideal for point-of-sale deployment where speed and accuracy are critical. We offer the FXP20 to help retailers eliminate checkout bottlenecks and gain real-time visibility into inventory across multiple lanes simultaneously.
How does the FXP20 connect to my POS system?
The FXP20 connects via a single USB Host Type-B lockable connector, enabling quick integration with existing point-of-sale systems without complex infrastructure changes. Zebra provides APIs and SDKs with easy-to-understand menus and built-in tutorials to guide you through any necessary configuration steps. Contact us today for integration support and to ensure compatibility with your current POS setup.
What is the read range and accuracy of the FXP20?
The FXP20 features a circular polarized antenna with receiver sensitivity of -78 dBm and operates across the 865-928 MHz UHF band, allowing it to filter out stray tags and ensure precise reads without interference from neighboring checkout lanes or product displays. Its integrated antenna design and adjustable transmit power (10-27 dBm) provide reliable performance in dense retail environments. Visit barcodesinc.com for detailed technical specifications and real-world performance benchmarks.
What are the power requirements and physical dimensions?
The FXP20 RFID pad measures 5.3 inches by 4.6 inches by 1.4 inches and weighs 266 grams, making it compact enough for any checkout counter. It requires 12VDC at 2A with a lockable DC connector to ensure stable, secure power delivery in high-traffic retail environments. The included adapter plate provides additional mounting flexibility for various POS configurations.
Is the FXP20 suitable for high-humidity or temperature-variable retail environments?
Yes—the FXP20 is engineered for retail durability with an operating temperature range of 0°C to 40°C (32°F to 104°F) and humidity tolerance of 5–95% non-condensing, making it suitable for standard indoor retail spaces including climate-controlled and uncontrolled areas. It also meets international safety and environmental standards including FCC, EN 62368-1, RoHS, and WEEE compliance. Contact us today if you have specific environmental concerns for your deployment location.
What feedback mechanisms does the FXP20 provide to confirm successful scans?
The FXP20 offers dual confirmation with three multicolor LED indicators (green, blue, orange) and three adjustable audible alert levels (low, medium, high) that are manageable via SDK, allowing you to customize feedback for your retail environment. This visual and auditory feedback ensures both staff and customers receive clear confirmation of successful tag reads at checkout or during inventory operations. We offer the FXP20 with full documentation on configuring these feedback settings to match your store's operational needs.
The Datalogic PM8300-DK910RK10 Barcode Scanner is also known as
DTL-PM8300DK910RK10
or PM8300DK910RK10.
Full specifications (PDF)
