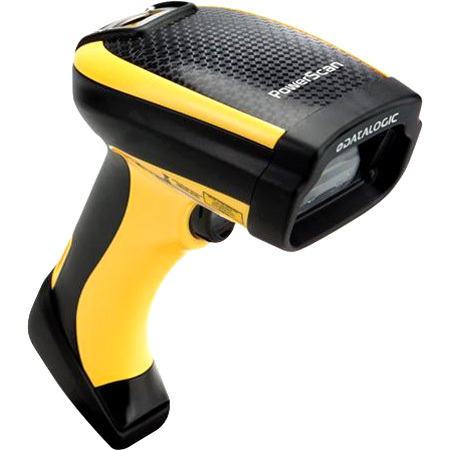

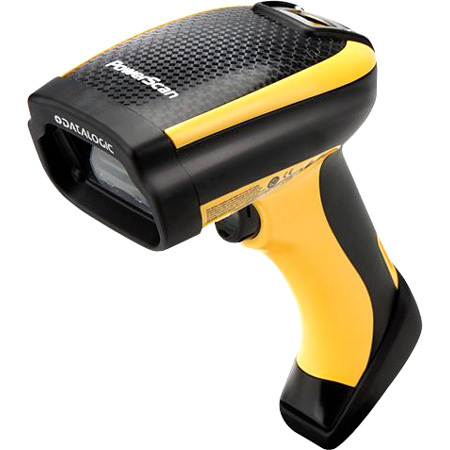

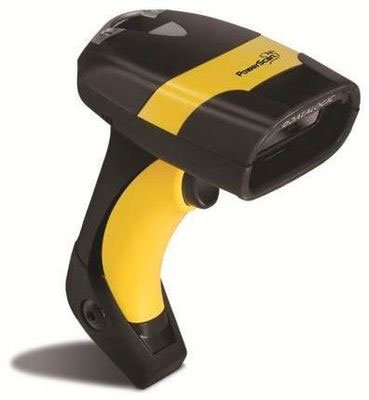

Datalogic PD9530-HP Barcode Scanner

Datalogic PowerScan PD9530-HP - Scanner Only, 2D Imager, High PerformanCE 5VDC. Cables sold separately. See accessories.
Aim, trigger, decode: it is that simple!

The PowerScan PD9500 Series imagers represent the new 2D handheld area imagers with rugged mechanics for industrial applications. This new PowerScan PD9500 Series imager is a blend of the Datalogic experience with optical systems, hardware architecture, mechanical design and decoding software. An intuitive and effortless scanning experience is the target of the PowerScan PD9500 Series. It combines omnidirectional reading capabilities, which is typical in all area imaging scanners, with outstanding optical characteristics. In addition, the PowerScan PD9500 Series area imager includes Datalogic's latest decoding software that guarantees snappy reading in any condition and environment. The result is a scanner with exceptional performances in terms of snappiness and depth-of-field on any kind of barcode, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the barcode resolution.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes <p>2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Planet Code
    • Portuguese Post
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Swedish Post
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar
    • Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked
    • Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E
    • Composites
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes <p>2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Planet Code
    • Portuguese Post
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Swedish Post
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar
    • Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked
    • Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E
    • Composites
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 0.80" - 2.30"@2.50 mil
    • 1.10" - 23.60"@13 mil
    • 1.10" - 27.50"@20 mil
    • 1.10" - 43.30"@40 mil
    • 0.80" - 11.80"@10 mil - PDF417
    • 0.80" - 2.30"@4 mil - Data Matrix
    • 0.80" - 7.80"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: 9500
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PD9530
  • Product Name: PowerScan PD9530 Handheld Barcode Scanner
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8.3"
  • Width: 4.3"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 11.60 oz

Interfaces/Ports

  • Host Interface:
    • Keyboard Wedge
    • USB
    • Serial

Full specifications (PDF)

Full specifications (PDF)

Brand Datalogic
Model PowerScan PD9500 Series
Color Yellow/Black
Included Cables Scanner Only - No Cable
Scan Pattern Area
Form Factor Handheld
Scanner Capability 2D
Scanner Type Imager
Connectivity Corded
Ruggedness Rugged
