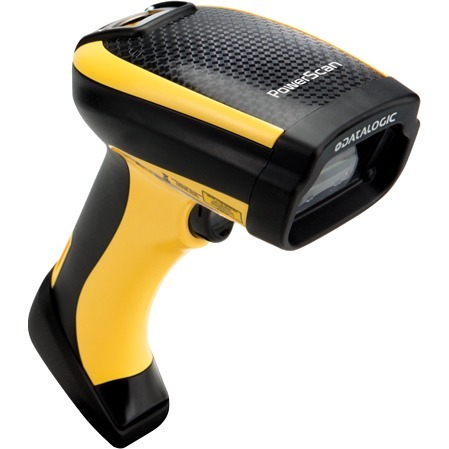

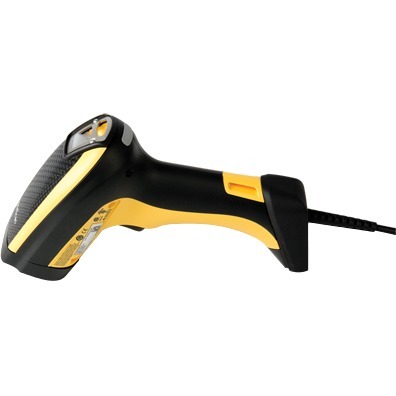

Datalogic PowerScan PD9130 Barcode Scanner Model Overview
Experience unparalleled scanning efficiency with the PowerScan™ PD9130 from Datalogic. This advanced corded industrial scanner features a unique green laser-like scanning line, ensuring precise 1D barcode decoding while providing comfort during extended use. Designed with ergonomics in mind, the PD9130 is lightweight and perfectly balanced to minimize operator fatigue. With its durable construction suitable for challenging environments, this scanner integrates easily into diverse applications, from manufacturing shop floors to warehouse logistics, making it an essential tool for enhancing productivity.
Key Features:
Innovative green laser-like scanning line for exceptional readability
Ergonomic design for extended comfort during intense scanning tasks
3GL™ technology for clear good-read feedback using three green lights
Multi-interface connectivity including RS-232, Keyboard Wedge, and USB
IP65 rated for water and particulate sealing
Drop resistance up to 2.0 m (6.6 ft)
Specifications:
Decoding Capability: GS1 DataBar™, UPC/EAN, Code 39, Code 128, and more
Electrical: Operating Current: 440 mA @ 4.5 V
Environmental:
Temperature: -20 to 50 °C (-4 to 122 °F) operating
Humidity: 0-95% (non-condensing)
Drop Resistance: Withstands 50 drops from 2.0 m / 6.6 ft
Physical Characteristics:
Dimensions: 21.2 x 11.0 x 7.4 cm (8.4 x 4.3 x 2.9 in)
Weight: 340 g (11.9 oz)
Warranty: 3-Year Factory Warranty
Datalogic PD9130 Barcode Scanner Overview
THE DEFINITION OF A LASER, THE BENEFIT OF AN IMAGER The PowerScan™ PD9130 scanner is the latest Datalogic corded industrial product. Datalogic's new innovative technology implements a green scanning line which has same definition of a laser beam with all the benefits of a linear imager, adding outstanding 1D decoding capability.
DEVELOPED WITH THE USER IN MIND The PD9130 reader has an ergonomic shape with well-balanced weight providing optimal operator comfort during scan-intensive operations. The green scanning line has been proven to be the most comfortable color solution for the operator's eyes. The PD9130 reader features Datalogic's exclusive 3GL™ (3 Green Lights) for superior good read feedback.
BUILT TO LAST The PD9130 reader has been tested to withstand extreme environmental conditions and is suitable for the most rugged and demanding settings. A built-in tether hook for suspended applications ensures workplace productivity.
ONE PRODUCT FOR MULTIPLE APPLICATIONS All models have multi-interface capabilities: RS-232, Keyboard Wedge, and USB. The PD9130 reader is fully supported by Datalogic's Aladdin™ configuration program which provides a user-friendly interface for the start-up procedure and device programming.
Base Station, Datalogic PowerScan 9501 Series, Dual Charger, 910 MHz, Multi-Interface (RS-232, USB, KBD Wedge and RS485), Spare Battery Slot, for North America
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What barcode formats does the Datalogic PD9130 scanner decode?
The PD9130 decodes a comprehensive range of 1D linear barcode formats including GS1 DataBar, UPC/EAN, Code 128, Code 39, Codabar, Interleaved 2 of 5, and many others. With its linear imager technology, it delivers the same definition as a laser beam while maintaining excellent compatibility with standard retail and industrial barcode standards. We offer this scanner as part of our complete barcode solutions lineup.
Is the PD9130 suitable for harsh warehouse environments?
Yes, the PD9130 is built for demanding industrial conditions with an IP65 rating for particulate and water sealing, and it withstands 50 drops from 2.0 meters to concrete. It operates reliably across temperatures from -20°C to 50°C and maintains immunity to ambient light including direct sunlight exposure. Contact us today to discuss deployment in your specific warehouse environment.
What connectivity options does the PD9130 provide?
The PD9130 offers multiple interface options including Keyboard Wedge, RS-232, and USB connectivity, making it compatible with various enterprise systems and legacy infrastructure. This multi-interface flexibility allows seamless integration into existing warehouse management and point-of-sale environments. We can help you select the appropriate cable and configuration for your setup.
How does the green scanning line benefit operators during intensive scanning tasks?
The PD9130's innovative green LED scanning line has been proven to be the most comfortable color solution for operator eyes during scan-intensive operations, reducing eye strain compared to traditional red laser lines. Combined with its ergonomic, well-balanced design at 340 grams, it provides optimal comfort during extended use in high-volume scanning environments. Visit barcodesinc.com to learn more about this operator-friendly technology.
What are the power requirements for the PD9130 scanner?
The PD9130 accepts input voltage from 4.5 to 30 VDC with typical operating current of 440 mA @ 4.5V, 380 mA @ 5V, or 75 mA @ 30V, providing flexible power supply options for different deployment scenarios. This wide voltage range supports both standard and industrial power configurations. Our team can assist with proper power supply selection and interface cable requirements.
What reading angles and performance capabilities does the PD9130 offer?
The PD9130 delivers excellent reading performance with pitch angles of ±75°, roll (tilt) of ±45°, and skew (yaw) of ±70°, allowing operators to scan barcodes from multiple orientations without precise alignment. It achieves a maximum resolution of 2.5 mils and includes Datalogic's Three Green Lights (3GL) feedback system with a 'Green Spot' indicator on successfully read codes. Contact us today for detailed specifications on reading ranges for your specific application.
The Datalogic PD9130 Barcode Scanner is also known as
DTL-PD9130
or PD9130.
Full specifications (PDF)
