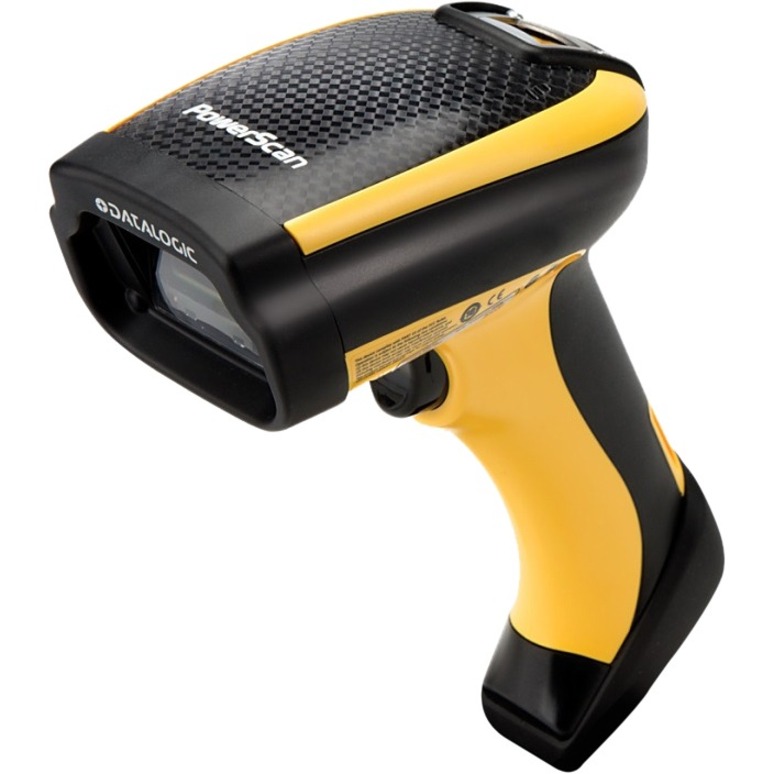

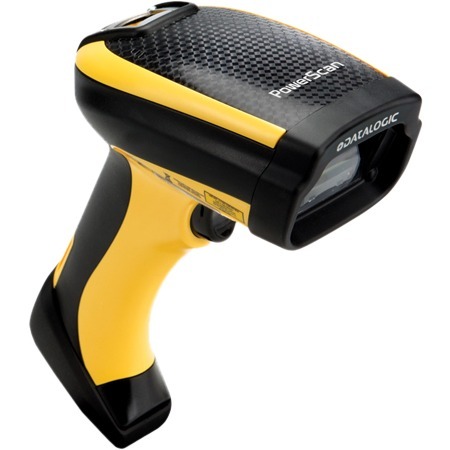

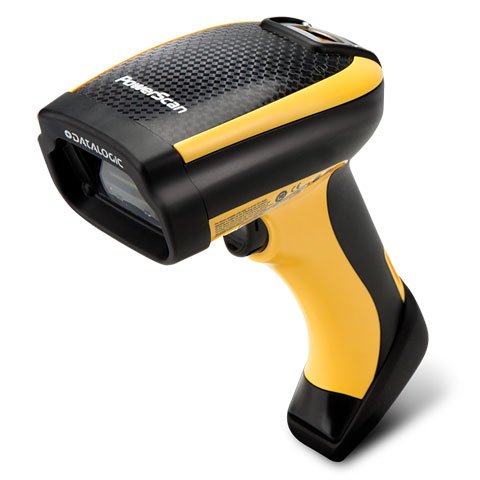

Datalogic PowerScan PD9130 Barcode Scanner Model Overview
Experience unparalleled scanning efficiency with the PowerScan™ PD9130 from Datalogic. This advanced corded industrial scanner features a unique green laser-like scanning line, ensuring precise 1D barcode decoding while providing comfort during extended use. Designed with ergonomics in mind, the PD9130 is lightweight and perfectly balanced to minimize operator fatigue. With its durable construction suitable for challenging environments, this scanner integrates easily into diverse applications, from manufacturing shop floors to warehouse logistics, making it an essential tool for enhancing productivity.
Key Features:
Innovative green laser-like scanning line for exceptional readability
Ergonomic design for extended comfort during intense scanning tasks
3GL™ technology for clear good-read feedback using three green lights
Multi-interface connectivity including RS-232, Keyboard Wedge, and USB
IP65 rated for water and particulate sealing
Drop resistance up to 2.0 m (6.6 ft)
Specifications:
Decoding Capability: GS1 DataBar™, UPC/EAN, Code 39, Code 128, and more
Electrical: Operating Current: 440 mA @ 4.5 V
Environmental:
Temperature: -20 to 50 °C (-4 to 122 °F) operating
Humidity: 0-95% (non-condensing)
Drop Resistance: Withstands 50 drops from 2.0 m / 6.6 ft
Physical Characteristics:
Dimensions: 21.2 x 11.0 x 7.4 cm (8.4 x 4.3 x 2.9 in)
Weight: 340 g (11.9 oz)
Warranty: 3-Year Factory Warranty
Datalogic PD9130-K1 Barcode Scanner Overview
THE DEFINITION OF A LASER, THE BENEFIT OF AN IMAGER The PowerScan™ PD9130 scanner is the latest Datalogic corded industrial product. Datalogic's new innovative technology implements a green scanning line which has same definition of a laser beam with all the benefits of a linear imager, adding outstanding 1D decoding capability.
DEVELOPED WITH THE USER IN MIND The PD9130 reader has an ergonomic shape with well-balanced weight providing optimal operator comfort during scan-intensive operations. The green scanning line has been proven to be the most comfortable color solution for the operator's eyes. The PD9130 reader features Datalogic's exclusive 3GL™ (3 Green Lights) for superior good read feedback.
BUILT TO LAST The PD9130 reader has been tested to withstand extreme environmental conditions and is suitable for the most rugged and demanding settings. A built-in tether hook for suspended applications ensures workplace productivity.
ONE PRODUCT FOR MULTIPLE APPLICATIONS All models have multi-interface capabilities: RS-232, Keyboard Wedge, and USB. The PD9130 reader is fully supported by Datalogic's Aladdin™ configuration program which provides a user-friendly interface for the start-up procedure and device programming.
Base Station, Datalogic PowerScan 9501 Series, Dual Charger, 910 MHz, Multi-Interface (RS-232, USB, KBD Wedge and RS485), Spare Battery Slot, for North America
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What barcode formats does the Datalogic PD9130 scanner decode?
The PD9130 offers comprehensive 1D barcode decoding capability including GS1 DataBar linear codes, UPC/EAN, Code 128, Code 39, Codabar, Interleaved 2 of 5, and many other standard formats. This broad compatibility makes it suitable for most warehouse and logistics applications without requiring multiple scanners. We offer the PD9130 as a complete kit with cable, ready for immediate deployment in your facility.
Is the PD9130 suitable for harsh warehouse environments?
Yes, the PD9130 is built for industrial durability with IP65 particulate and water sealing, immunity to ambient light and direct sunlight, and the ability to withstand 50 drops from 2.0 meters to concrete. It operates reliably across a wide temperature range from -20°C to 50°C, making it ideal for cold storage, dock operations, and outdoor logistics environments. Contact us today to discuss your specific environmental requirements.
What connectivity options are available with the PD9130?
The PD9130 supports multiple interface options including USB, RS-232, and Keyboard Wedge connectivity, providing flexibility for integration with different warehouse management systems and legacy equipment. The kit we offer includes the scanner and CAB-524 cable for immediate USB deployment. Visit barcodesinc.com to confirm compatibility with your existing IT infrastructure.
How does the green scanning line technology benefit operators?
Datalogic's innovative green LED scanning line provides the same definition and performance as a laser beam while delivering the benefits of linear imager technology, with the added advantage of being the most comfortable color solution for operator eye comfort during scan-intensive operations. The ergonomic design and well-balanced weight further reduce fatigue during extended use. Our team can help you evaluate this technology against other scanner options available from us.
What is the reading range and accuracy of the PD9130?
The PD9130 achieves a maximum resolution of 2.5 mils with a minimum print contrast ratio of 15%, and maintains reliable reading performance across wide angles: ±75° pitch, ±45° roll, and ±70° skew. These specifications ensure consistent scanning accuracy even when barcodes are at difficult angles or partially obscured. Contact us today for detailed performance data specific to your barcode types and distances.
What power requirements does the PD9130 have?
The PD9130 accepts input voltage from 4.5 to 30 VDC with typical operating current of 440 mA @ 4.5V, 380 mA @ 5V, or 75 mA @ 30V, providing flexibility for different power delivery systems in your warehouse. This wide voltage range allows integration with various power supplies and docking stations. Visit barcodesinc.com or contact our team to discuss power infrastructure compatibility for your deployment.
The Datalogic PD9130-K1 Barcode Scanner is also known as
DTL-PD9130K1
or PD9130K1.
Full specifications (PDF)
