Datalogic PowerScan PD8500 – Barcode Scanner – Corded – 1D

Part Number: PD8530
Model: PowerScan PD8500
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Corded
Form Factor
Handheld
Scanner Capability
1D
Scanner Type
Imager

Product Description:

  Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CAB-441), PS/2 (Part# CAB-442), or RS-232 Serial cables (Part# CAB-433) and a Power supply (Part# 90ACC1920).
Explore all Datalogic PowerScan PD8500 Barcode Scanners
Add to Quote

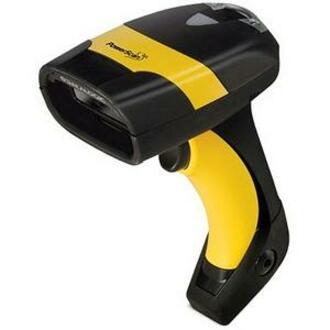

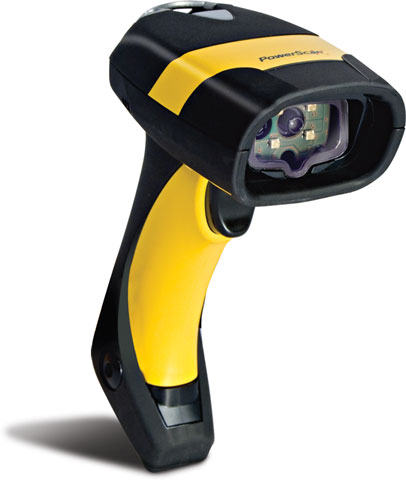

Datalogic PD8530 Barcode Scanner
Datalogic PD8530 Barcode Scanner
Datalogic PD8530 Barcode Scanner
Datalogic PD8530 Barcode Scanner
Datalogic PD8530 Barcode Scanner
Datalogic PD8530 Barcode Scanner Datalogic PD8530 Barcode Scanner Datalogic PD8530 Barcode Scanner Datalogic PD8530 Barcode Scanner Datalogic PD8530 Barcode Scanner
Full specifications (PDF)

Datalogic PowerScan PD8500 Barcode Scanner Model Overview

The Datalogic PowerScan PD8500 reader offers the richest feature set of Datalogic Scanning's industrial handheld products for the omni-directional reading of one-dimensional (1D) and reading of two-dimensional (2D) codes as well as the capability of multiple code reading in a single read.
Datalogic PD8530 Barcode Scanner Overview

Datalogic PowerScan D8530 Bar Code Reader is the top rated industrial handheld data collection products on the market. Long known for outstanding durability and performance, the PowerScan brand of products continues to offer the ultimate solution for demanding industrial applications. The PowerScan 8530 reader offers the richest feature set of Datalogic Scanning industrial handheld products for the omni-directional reading of one-dimensional (1D) and reading of two-dimensional (2D) codes as well as the capability of multiple code reading in a single read.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Interleaved 2 of 5
  • Code 39
  • Code 32
  • Code 128
  • EAN-128
  • Code 93
  • UPC/EAN/JAN
  • Codabar
  • RSS
  • PDF 417
  • DataMatrix
  • QR Code
  • Composite Code
  • MacroPDF
  • Micro PDF
  • Aztec
  • Postnet
  • PLANET
  • Japan Postal
  • Australian Post
  • Kix
  • Royal Mail Code (RM4SCC)
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
6.60 mil
Depth of Field:
  • 2.9" - 6.1"@5mil - Code 39
  • 2.1" - 9.7"@10mil - Code 39
  • 2.1" - 14.4"@20mil - Code 39
  • 1.9" - 10.6"@13mil - 100% UPC
  • 3.1" - 7.3"@5mil - PDF417
  • 1.5" - 10"@10mil - PDF417
  • 3.1" - 6.5"@7.5mil - Data Matrix
  • 2.7" - 7.7"@10mil - Data Matrix
  • 3.1" - 6.5"@7.5mil - QR Code
  • 2.7" - 7.7"@10mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
30 V DC
Physical Characteristics
Form Factor:
Handheld
Weight (Approximate):
10.40 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • USB

    • Certifications & Standards:

    Electrical:

    • C-CSA-US (60950 to Canada and USA)

    Emissions:

    • FCC-A
    • EN 55022-A
    • AS/NZS 3548

    Laser Classification (Aiming System):

    • Class 2 IEC 825-1
    • Class 2 CDRH

    Restriction of Hazardous Substances:

    • EU RoHS
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 5051964550389
    EAN: 5051964550389
    UNSPSC: 43211701

    Recommended Accessories

    Category

    • Cables, Connectors, and Adapters (3)
    • Computer Accessories (1)
    • Docks and Cradles (2)
    • Miscellaneous (1)
    • Mobile Computer Accessories (3)
    • Power Device (1)
    • Scanner Accessories (40)
    • Spare Parts (1)

    Recommended Accessories for Model: Datalogic PD8530 Barcode Scanner

    Top Cables, Connectors, and Adapters Purchased With Datalogic PD8530

    Top Computer Accessories Purchased With Datalogic PD8530

    Top Docks and Cradles Purchased With Datalogic PD8530

    Top Miscellaneous Purchased With Datalogic PD8530

    Top Mobile Computer Accessories Purchased With Datalogic PD8530

    Top Power Device Purchased With Datalogic PD8530

    Top Scanner Accessories Purchased With Datalogic PD8530

    See All Scanner Accessories for Datalogic PD8530 Barcode Scanner >

    Top Spare Parts Purchased With Datalogic PD8530

    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic PD8530 Barcode Scanner is also known as DTL-PD8530 or PD8530.
