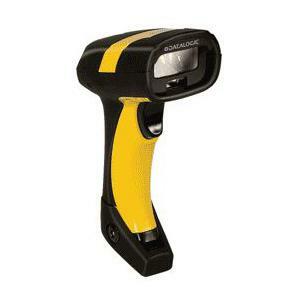

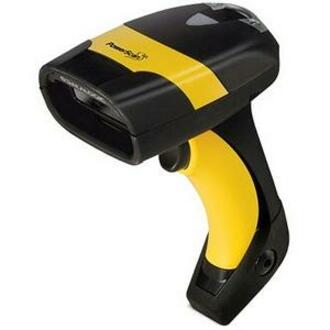

Datalogic PD8530-WA Barcode Scanner

The Datalogic PD8530-WA Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic PowerScan PD8500 - Datalogic PowerScan D8530 Wide Angle Bar Code Reader - Wired
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Laser scan engine guarantees rapid error free data entry
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More

Need a different version? See all Datalogic PowerScan PD8500 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Datalogic PD8530-WA Barcode Scanner
Datalogic PD8530-WA Barcode Scanner Datalogic PD8530-WA Barcode Scanner Datalogic PD8530-WA Barcode Scanner Datalogic PD8530-WA Barcode Scanner Datalogic PD8530-WA Barcode Scanner
Datalogic PD8530-WA Barcode Scanner
Datalogic PD8530-WA Barcode Scanner
Datalogic PD8530-WA Barcode Scanner
Datalogic PD8530-WA Barcode Scanner
Datalogic PD8530-WA Barcode Scanner
Full specifications (PDF)

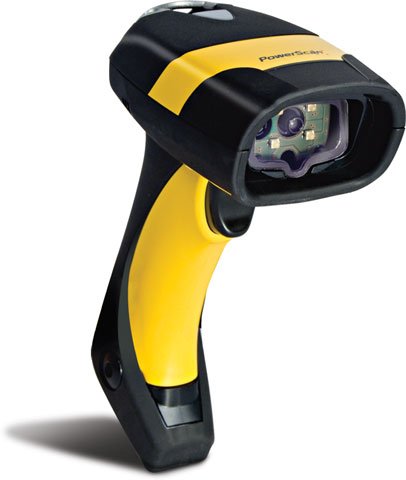

Datalogic PowerScan PD8500 Barcode Scanner Model Overview
The Datalogic PowerScan PD8500 reader offers the richest feature set of Datalogic Scanning's industrial handheld products for the omni-directional reading of one-dimensional (1D) and reading of two-dimensional (2D) codes as well as the capability of multiple code reading in a single read.
Datalogic PD8530-WA Barcode Scanner Overview

The PowerScan D8530 Wide Angle Industrial 2D Imaging Bar Code Reader with high resolution Mega-Pixel sensor (1280 x 1024 pixels), is capable of outstanding performance in all conditions. The D8530 Wide Angle model offers a wider field of view allowing the capture of larger and longer bar codes as well as a full A4 image capture. Operator comfort and productivity, essential for scan-intensive applications, is made simple by the PowerScan D8530 reader's ergonomic handle, well-balanced weight, and Datalogic's 3 Green Lights (3GL) feature for superior good read feedback including Datalogic's patented "greenspot" on the bar code that is guaranteed to provide the highest productivity even in the most demanding conditions.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Interleaved 2 of 5
  • Code 39
  • Code 32
  • Code 128
  • EAN-128
  • Code 93
  • UPC/EAN/JAN
  • Codabar
  • GS1 Databar
  • PDF 417
  • DataMatrix
  • QR Code
  • Composite Code
  • Micro PDF
  • MacroPDF
  • Aztec
  • Postnet
  • PLANET
  • Japanese Post
  • Australian Post
  • Kix
  • Royal Mail Code (RM4SCC)
Light Source:
Laser
Maximum Scan Resolution:
7.50 mil
Depth of Field:
  • 1" - 3.9"@5mil - Code 39
  • 0.8" - 6.3"@10mil - Code 39
  • 0.6" - 12.6"@20mil - Code 39
  • 0.6" - 10.2"@13mil - Code 39
  • 1.2" - 4.1"@5mil - PDF417
  • 0.6" - 8.4"@10mil - PDF417
  • 2.1" - 3.4"@7.5mil - Data Matrix
  • 1.2" - 4.9"@10mil - Data Matrix
  • 2.1" - 3.4"@7.5mil - QR Code
  • 1.2" - 4.9"@10mil - QR Code
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
30 V DC
Physical Characteristics
Form Factor:
Handheld
Weight (Approximate):
10.41 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • USB

    • Certifications & Standards:
    • RoHS Complaint
    • Environmental Protection IP65

    Electrical:

    • C-CSA-US (60950 to Canada and USA)

    Emissions:

    • FCC-A
    • EN 55022-A
    • AS/NZS 3548

    Laser Classification:

    • Class 2 IEC 825-1
    • Class 2 CDRH
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 5711045566196
    EAN: 5711045566196
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic PD8530-WA Barcode Scanner is also known as DTL-PD8530-WA or PD8530WA.
