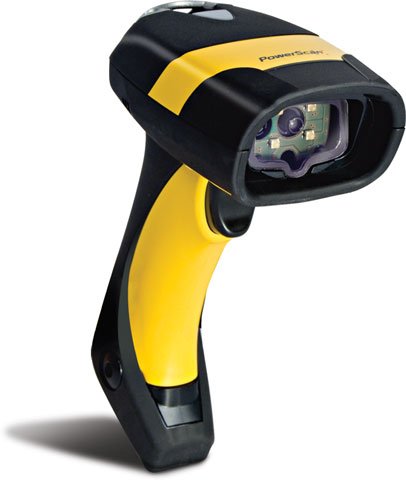

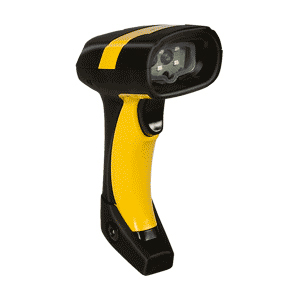

Datalogic PD8530-HD Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Datalogic PowerScan D8500 High Density - High-density version. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CAB-441), PS/2 (Part# CAB-442), or RS-232 Serial cables (Part# CAB-433) and a Power supply (Part# 90ACC1920).
Supports most popular 1D, 2D, Stacked and Postal codes

The Datalogic PowerScan PD8500 reader offers the richest feature set of Datalogic Scanning's industrial handheld products for the omnidirectional reading of one-dimensional (1D) and reading of two-dimensional (2D) codes as well as the capability of multiple code reading in a single read.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • Interleaved 2 of 5
    • Code 39
    • Code 32
    • Code 128
    • EAN-128
    • Code 93
    • UPC/EAN/JAN
    • Codabar
    • RSS
    • PDF 417
    • DataMatrix
    • QR Code
    • Composite Code
    • MacroPDF
    • Micro PDF
    • Aztec
    • Postnet
    • PLANET
    • Japan Postal
    • Australian Post
    • Kix
    • Royal Mail Code (RM4SCC)
    • Interleaved 2 of 5
    • Code 39
    • Code 32
    • Code 128
    • EAN-128
    • Code 93
    • UPC/EAN/JAN
    • Codabar
    • RSS
    • PDF 417
    • DataMatrix
    • QR Code
    • Composite Code
    • MacroPDF
    • Micro PDF
    • Aztec
    • Postnet
    • PLANET
    • Japan Postal
    • Australian Post
    • Kix
    • Royal Mail Code (RM4SCC)
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 1.70" - 3.10"@3 mil - Code 39
    • 1.30" - 3.80"@5 mil - Code 39
    • 1.50" - 5"@10 mil - Code 39
    • 2.30" - 7.30"@20 mil - Code 39
    • 1.90" - 5.50"@13 mil - 100% UPC
    • 1.90" - 3.40"@3 mil - PDF417
    • 1.70" - 3.40"@5 mil - PDF417
    • 1.10" - 5.20"@10 mil - PDF417
    • 2" - 3"@4 mil - Data Matrix
    • 1.90" - 3.10"@5 mil - Data Matrix
    • 1.70" - 3.40"@7.50 mil - Data Matrix
    • 1.50" - 4.10"@10 mil - Data Matrix
    • 1.70" - 3.40"@7.50 mil - QR Code
    • 1.50" - 4.10"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: D8530
  • Product Name: PowerScan D8530 HD Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Weight (Approximate): 10.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Electrical:
    • C-CSA-US (60950 to Canada and USA)
    • Emissions:
    • FCC-A
    • EN 55022-A
    • AS/NZS 3548
    • Laser Classification (Aiming System):
    • Class 2 IEC 825-1
    • Class 2 CDRH
    • Restriction of Hazardous Substances:
    • EU RoHS
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeUSB

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 30 V DC

Full specifications (PDF)
