Datalogic PD8530-C078 Products

Part Number: PD8530-C078
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
1D / Linear Codes:Autodiscriminates all standard 1D codes including GS1 DataBar linear codes2D Codes:Aztec CodeData MatrixMaxiCodeMicro QR CodeQR CodePostal Codes:Australian PostChina PostIMBJapanese PostKIX PostPlanet CodePostnetRoyal Mail Code (RM4SCC)Stacked Codes:EAN/JAN CompositesGS1 DataBar CompositesGS1 DataBar Expanded StackedGS1 DataBar StackedGS1 DataBar Stacked OmnidirectionalMicroPDF417PDF417UPC A/E Composites
Image Sensor Type
Imager

Product Description:

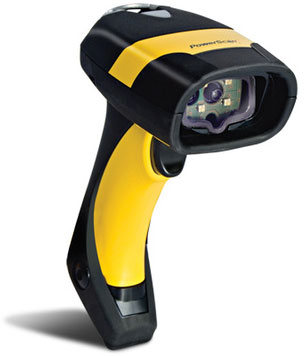

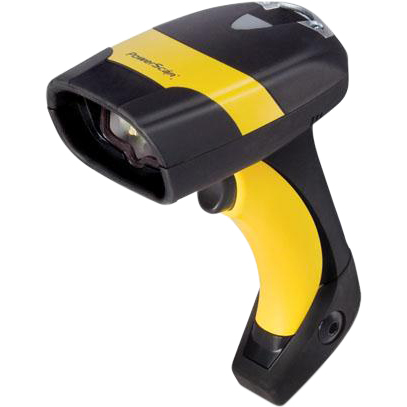

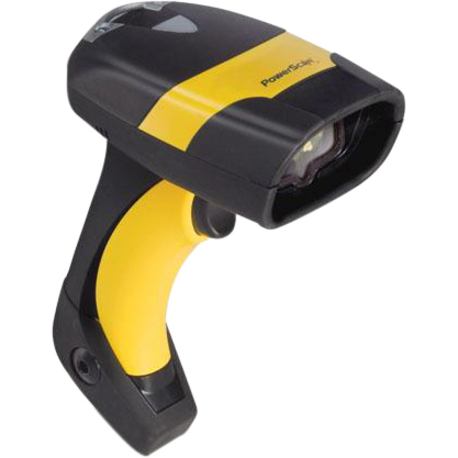

  Datalogic Industrial Corded Handheld Area Imager Bar Code Reader - Cable Connectivity - 1D, 2D - Imager - Omni-directional - Keyboard Wedge, Serial, USB - Yellow, Black
Explore all Datalogic Parts Accessories
Add to Quote
Datalogic PD8530-C078 Products
Datalogic PD8530-C078 Products
Datalogic PD8530-C078 Products
Datalogic PD8530-C078 Products
Datalogic PD8530-C078 Products
Datalogic PD8530-C078 Products Datalogic PD8530-C078 Products Datalogic PD8530-C078 Products Datalogic PD8530-C078 Products Datalogic PD8530-C078 Products

Datalogic Parts Accessory Model Overview

Products and parts from Datalogic.
Datalogic PD8530-C078 Products Overview

The PowerScan 8000 product series is Datalogic ADC's premium line of rugged industrial handheld data collection products. The PowerScan PD8500 corded reader offers omnidirectional reading of 1D and 2D codes as well as the capability of multiple code reading in a single read. Its high resolution Mega-Pixel imaging sensor is capable of outstanding performance in industrial applications. It is offered with three optic models: Standard Range and High Density models are for typical bar code reading conditions (for medium and high resolution code respectively) and the Wide Angle model offers a wider field of view allowing the capture of larger and longer codes as well as a full A4 image capture (29.0 x 21.0 cm / 11.42 x 8.27 in).

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

2D Codes:

  • Aztec Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code

Postal Codes:

  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 2.9" - 6.1"@5mil
  • 3.1" - 7.3"@5mil - PDF
  • 3.1" - 6.5"@7.5mil - Data Matrix/QR
  • 2.1" - 9.7"@10mil
  • 2.7" - 7.7"@10mil - Data Matrix/QR
  • 1.5" - 10"@10mil - PDF
  • 1.9" - 10.6"@13mil
  • 2.1" - 14.4"@20mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
  • Keyboard Wedge
  • Serial
  • USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Height:
8.1"
Width:
2.7"
Depth:
4.5"
Weight (Approximate):
10.40 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PD8530-C078 Products is also known as DTL-PD8530-C078 or PD8530C078.
