Datalogic PowerScan PD7100 – Barcode Scanner – Corded – 1D

Part Number: PD7130-YBK2
Model: PowerScan PD7100
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
Serial
Scanner Capability
1D

Product Description:

  Datalogic PowerScan PD7130 Bar Code Reader - Wired - Imager
Explore all Datalogic PowerScan PD7100 Barcode Scanners
Add to Quote
Datalogic PD7130-YBK2 Barcode Scanner
Datalogic PD7130-YBK2 Barcode Scanner
Datalogic PD7130-YBK2 Barcode Scanner
Datalogic PD7130-YBK2 Barcode Scanner
Datalogic PD7130-YBK2 Barcode Scanner
Datalogic PD7130-YBK2 Barcode Scanner
Datalogic PD7130-YBK2 Barcode Scanner
Datalogic PD7130-YBK2 Barcode Scanner Datalogic PD7130-YBK2 Barcode Scanner Datalogic PD7130-YBK2 Barcode Scanner Datalogic PD7130-YBK2 Barcode Scanner Datalogic PD7130-YBK2 Barcode Scanner Datalogic PD7130-YBK2 Barcode Scanner Datalogic PD7130-YBK2 Barcode Scanner

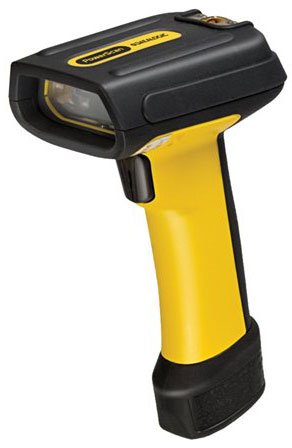

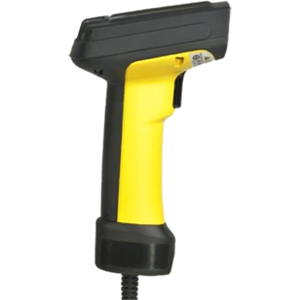

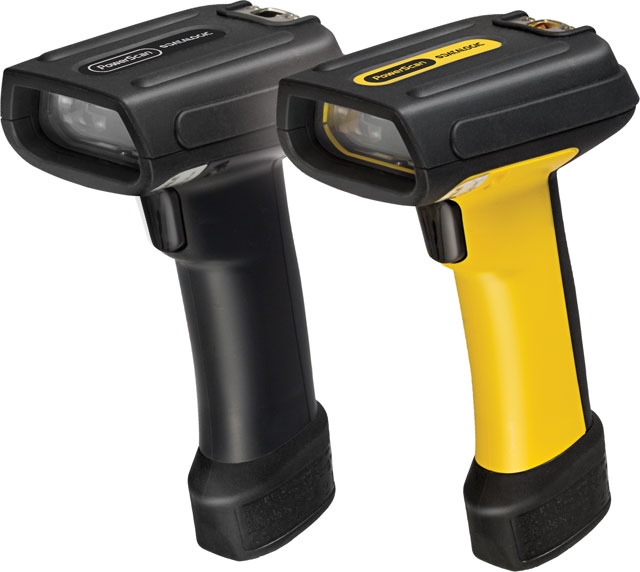

Datalogic PowerScan PD7100 Barcode Scanner Model Overview

The Datalogic PowerScan PD7100 is a rugged industrial linear imager that offers the highest standards of reliability, robustness and performance plus exceptional value. The unit is 2-meter drop-tested to concrete, IP65 rated against water and dust, and capable of operating in the most extreme temperature conditions. Three year standard warranty ensures low total cost of ownership. The PowerScan PD7100 features advanced code stitching capabilities, making it easier to read poorly printed and damaged codes the first time. The PowerScan PD7100 is available with two multi-interfaces, depending on application requirements: industrial applications and harsh environments: RS-232, Wedge, Wand Emulation and USB and for POS checkouts: RS-232, IBM 46xx and USB.
Datalogic PD7130-YBK2 Barcode Scanner Overview

The PowerScan 7100 product series are Datalogic Scanning' s value line of rugged industrial handheld data collection products. The PowerScan D7130 linear imaging corded reader combines rugged durability and extremely snappy reading performance all at an affordable price.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:

1D / Linear Codes:

  • Auto discriminates all standard 1D codes
  • GS1 DataBar linear codes

Postal Codes:

  • China Post
  • Stacked Codes
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omni directional
Light Source:
Laser
Image Sensor Type:
Imager
Scan Rate:
390 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 0.6" - 5.5"@5mil
  • 0" - 17.3"@7.5mil
  • 0" - 23.6"@10mil
  • 0" - 31.5"@13mil
  • 0" - 46.9"@20mil
  • 0.8" - 94.5"@40mil
  • 2" - 118.2"@55mil - Reflective
  • 5.1" - 208.7"@100mil - Reflective
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Black
  • Yellow
Height:
8"
Width:
3"
Depth:
4.5"
Weight (Approximate):
9.90 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0097914453466, 3609740032981, 4054318750474, 5712505531242
UPC: 097914453466
EAN: 0097914453466, 3609740032981, 4054318750474, 5712505531242
UNSPSC: 43211701

Recommended Accessories

Category

  • Scanner Accessories (7)

Recommended Accessories for Model: Datalogic PD7130-YBK2 Barcode Scanner

Top Scanner Accessories Purchased With Datalogic PD7130-YBK2

See All Scanner Accessories for Datalogic PD7130-YBK2 Barcode Scanner >
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PD7130-YBK2 Barcode Scanner is also known as DTL-PD7130-YBK2 or PD7130YBK2.
