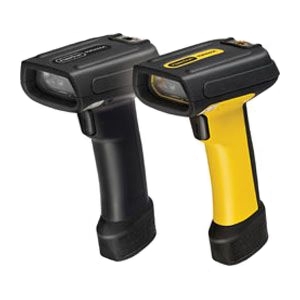

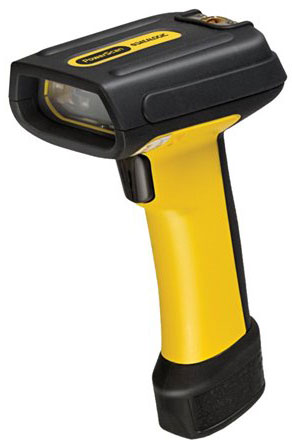

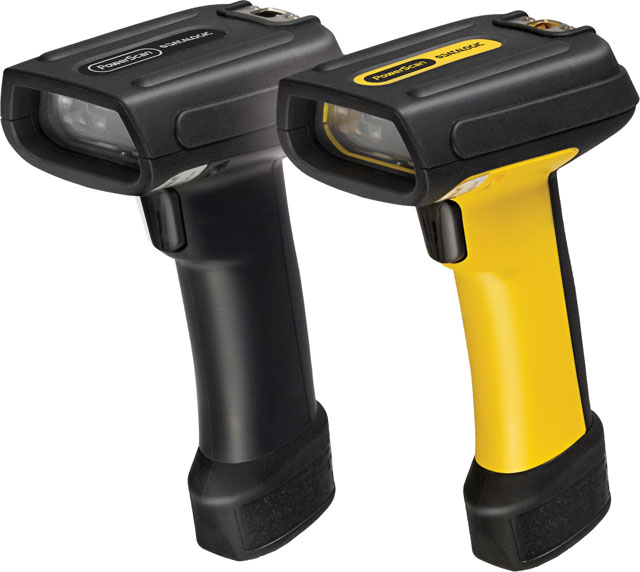

Datalogic PD7130-YBK1 Barcode Scanner


5.0

(2 reviews)

Datalogic PowerScan PD7100 - USB Kit, Industrial Linear Imager. Includes USB cable.
Withstands 50 drops of 2 m / 6.5 ft. to concrete

The Datalogic PowerScan PD7100 is a rugged industrial linear imager that offers the highest standards of reliability, robustness and performance plus exceptional value. The unit is 2-meter drop-tested to concrete, IP65 rated against water and dust, and capable of operating in the most extreme temperature conditions. Three year standard warranty ensures low total cost of ownership. The PowerScan PD7100 features advanced code stitching capabilities, making it easier to read poorly printed and damaged codes the first time. The PowerScan PD7100 is available with two multiple interfaces, depending on application requirements: industrial applications and harsh environments: RS-232, Wedge, Wand Emulation and USB and for POS checkouts: RS-232, IBM 46xx and USB.

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 390 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Auto discriminates all standard 1D codes
    • GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omni directional
    • 1D / Linearcodes:
    • Auto discriminates all standard 1D codes
    • GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omni directional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 0.60" - 5.50"@5 mil
    • 0 mil - 17.30"@7.50 mil
    • 0 mil - 23.60"@10 mil
    • 0 mil - 31.50"@13 mil
    • 0 mil - 46.90"@20 mil
    • 0.80" - 94.50"@40 mil
    • 2" - 118.20"@55 mil - Reflective
    • 5.10" - 17.39 [email protected] mil - Reflective

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PD7130
  • Product Name: PowerScan PD7130 Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8"
  • Width: 3"
  • Depth: 4.5"
  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 9.90 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS

Warranty

  • Limited Warranty: 3 Year
Brand Datalogic
Model PowerScan PD7100
Scan Pattern LED Beam
Connection USB
Scanner Capability 1D
Included Cables USB
Connectivity Corded
Form Factor Handheld
Color Yellow
Scanner Type Imager
Ruggedness Rugged


Customer Review Summary


5.0

(based on 2 reviews)

Ratings Distribution

  • 5 Stars



    (2)

  • 4 Stars



    (0)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 2 customers

Sort by

Displaying reviews 1-2

Back to top


5.0

Very Positive Experience

By Barcode reader user

from Florida

1/22/2013

Verified Buyer

Comments about Datalogic PowerScan PD7100 PD7130-YBK1:

Sales support was excellent. Original product I ordered was not in stock. Barcodes, Inc. Sales Rep contacted me by email, and then followed up by phone at my request and helped me find the right barcode reader to meet my needs. This new barcode reader has worked better (reads faster and easier) than our previous reader.


5.0

Very effective

By MobilePhoneGuys

from Beverly Hills

2/19/2012

Verified Buyer

Comments about Datalogic PowerScan PD7100 PD7130-YBK1:

This thing is very effective at picking up difficult to read linear codes. For example it easily scans the tiny barcodes that are inside cellphones. It can also scan from some distance (two feet) for regular UPC codes. It scans damaged or blurry codes better than any other scanner we have tried. Finally, it is solidly built, including IP65, so it can be dropped and used under any conditions including pouring rain. It also does not use a laser so some users may find it safer, and it has a good indicator of where it is pointing (a red bar). It's made in Vietnam.

Displaying reviews 1-2

Back to top

Recommended Accessories for Model: Datalogic PowerScan PD7100 Scanner
Datalogic (7-0404)
Industrial Take-up Reel
In Stock: Ships Same Day
$68.50
+ Add to Quote
Datalogic (11-0140)
Heated Holder Assembly, 48V, For the PowerScan. (not for use with PBT8300-D/-DK models)
Ships in 3-5 Days
$364.20
+ Add to Quote
Datalogic (11-0139)
Heated Holder, 24V, For the PowerScan. (not for use with PBT8300-D/-DK models)
Ships in 3-5 Days
$359.70
+ Add to Quote
Datalogic (11-0111)
Universal mounting kit for PD7100 series
Ships in 3-5 Days
$20.50
+ Add to Quote
Datalogic (11-0110)
Hands-free stand for PBT7100 and PD7100
Ships in 3-5 Days
$34.80
+ Add to Quote
Protect Your Product
Datalogic Service Contract - 1 year (W-PD71-R)
PowerScan 7100D Ease of Care 2 Days Comprehensive Renewal
Ships in 3-5 Days
$43.00
+ Add to Quote
Datalogic Service Contract - 5 year (W-PD71-5)
PowerScan 7100D, Ease of Care 2 Days Comprehensive
Ships in 3-5 Days
$118.00
+ Add to Quote
Datalogic Service Contract - 3 year (W-PD71-3)
PowerScan 7100D, Ease of Care 2 Days Comprehensive
Ships in 3-5 Days
$47.00
+ Add to Quote
Datalogic Service Contract - 3 year (Q-PD71-3)
PowerScan 7100D, Ease of Care Overnight Replacement Comprehensive
Ships in 3-5 Days
$64.00
+ Add to Quote
Datalogic Service Contract - 3 year (Q-BC71-3)
SERVICE CONTRACT, QUICK REPLACEMENT, 3 YEAR
Ships in 3-5 Days
$32.00
+ Add to Quote

The Datalogic PD7130-YBK1 is also known as Data Logic DTL-PD7130-YBK1 or PD7130YBK1 .
