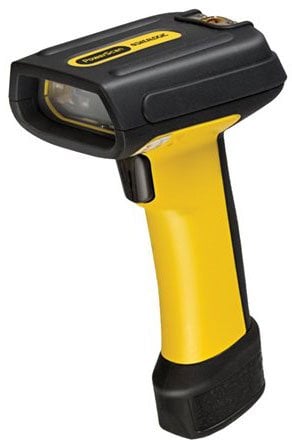

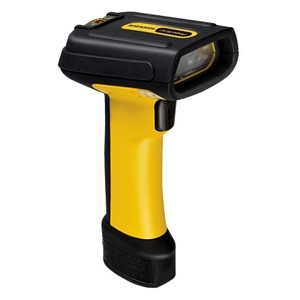

Datalogic PowerScan PD7100 – Barcode Scanner – Corded

Part Number: PD7130-YB-PTRK1

Model: PowerScan PD7100

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Connectivity

Corded

Form Factor

Handheld

Scanner Type

CCD

Product Description:

Datalogic PowerScan PD7130 Bar Code Reader - Wired - Linear

Explore all Datalogic PowerScan PD7100 Barcode Scanners

Add to Quote

Datalogic PD7130-YB-PTRK1 Barcode Scanner

Overview

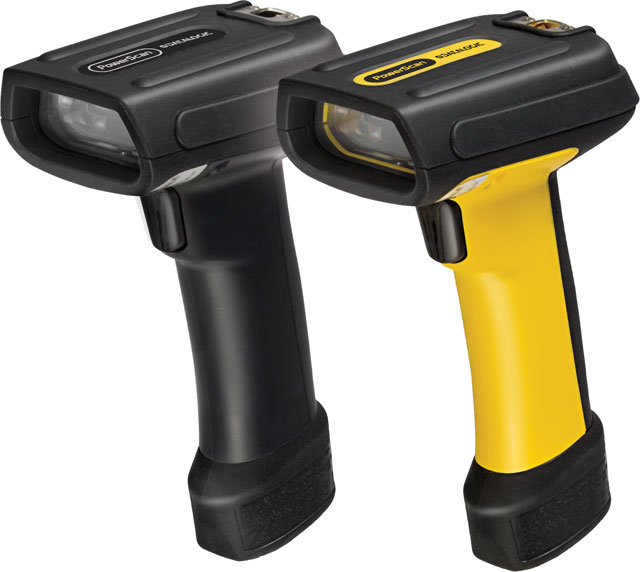

Datalogic PowerScan PD7100 Barcode Scanner Model Overview

The Datalogic PowerScan PD7100 is a rugged industrial linear imager that offers the highest standards of reliability, robustness and performance plus exceptional value. The unit is 2-meter drop-tested to concrete, IP65 rated against water and dust, and capable of operating in the most extreme temperature conditions. Three year standard warranty ensures low total cost of ownership. The PowerScan PD7100 features advanced code stitching capabilities, making it easier to read poorly printed and damaged codes the first time. The PowerScan PD7100 is available with two multi-interfaces, depending on application requirements: industrial applications and harsh environments: RS-232, Wedge, Wand Emulation and USB and for POS checkouts: RS-232, IBM 46xx and USB.

Datalogic PD7130-YB-PTRK1 Barcode Scanner Overview

The PowerScan PD7130 Bar Code Reader is Datalogic Scanning's value line of rugged industrial handheld data collection products. The PowerScan PD7130 Bar Code Reader is linear imaging corded reader combines rugged durability and extremely snappy reading performance all at an affordable price. Datalogic Scanning's innovative and unique optical design of the PowerScan PD7130 Bar Code Reader of readers combines scanner features that are normally available on different scanner models into a single device: up to 3 mils maximum code resolution; contact to about 3.0 m / 9.8 ft reading distance; and wide angle code reading. The result is a versatile, easy to use and intuitive scanner that simplifies any code reading activity.

Detailed Specs

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1D / Linear Codes:

Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Postal Codes:

China Post

Stacked Codes:

GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional

Light Source:

Laser

Image Sensor Type:

Linear

Depth of Field:

1.5cm - 14.0cm@5mil
0cm - [email protected]
0cm - 60.0cm@10mil
0cm - 80.0cm@13mil
0cm - 119.0cm@20mil
2.0cm - 240.0cm@40mil
5.0cm - 300.0cm@55mil - Reflective
13.0cm - 530.0cm@100mil - Reflective

Interfaces/Ports

Host Interface:

Multi-interface

Physical Characteristics

Form Factor:

Handheld

Product Color:

Yellow
Black

Height:

20.3"

Width:

11.4"

Depth:

7.6"

Weight (Approximate):

9.90 oz

Miscellaneous

Additional Information:

Supported Interface:

USB

USB Cable separate

Environmentally Friendly:

Yes

Item Numbers

GTIN: 0853585478487, 5052733720811, 5712505515884

UPC: 853585478487

EAN: 0853585478487, 5052733720811, 5712505515884

UNSPSC: 43211701
