Datalogic PD7130-YB-PTR Barcode Scanner

The Datalogic PD7130-YB-PTR Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic PowerScan PD7100 - Datalogic PowerScan PD7130 Bar Code Reader - Wired - Linear
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • A trustworthy linear image scanning provides solid state barcode reading
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

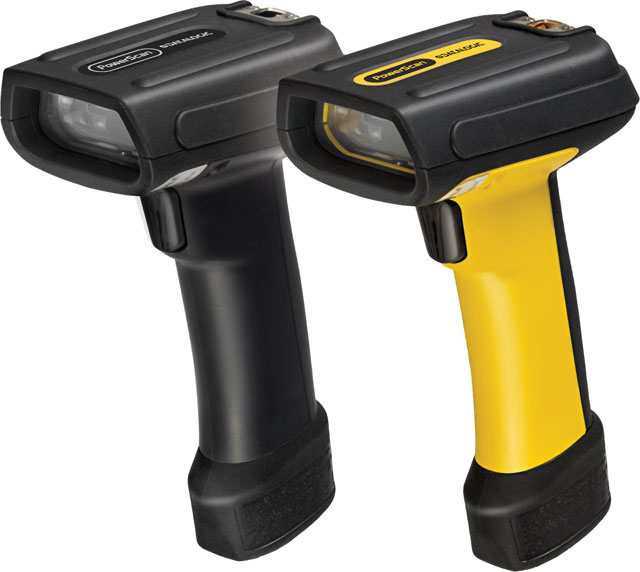

Datalogic PowerScan PD7100 Barcode Scanner Model Overview
The Datalogic PowerScan PD7100 is a rugged industrial linear imager that offers the highest standards of reliability, robustness and performance plus exceptional value. The unit is 2-meter drop-tested to concrete, IP65 rated against water and dust, and capable of operating in the most extreme temperature conditions. Three year standard warranty ensures low total cost of ownership. The PowerScan PD7100 features advanced code stitching capabilities, making it easier to read poorly printed and damaged codes the first time. The PowerScan PD7100 is available with two multi-interfaces, depending on application requirements: industrial applications and harsh environments: RS-232, Wedge, Wand Emulation and USB and for POS checkouts: RS-232, IBM 46xx and USB.

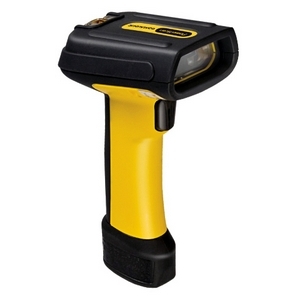

Datalogic PD7130-YB-PTR Barcode Scanner Overview

The PowerScan PD7130 Bar Code Reader is Datalogic Scanning's value line of rugged industrial handheld data collection products. The PowerScan PD7130 Bar Code Reader is linear imaging corded reader combines rugged durability and extremely snappy reading performance all at an affordable price. Datalogic Scanning's innovative and unique optical design of the PowerScan PD7130 Bar Code Reader of readers combines scanner features that are normally available on different scanner models into a single device: up to 3 mils maximum code resolution; contact to about 3.0 m / 9.8 ft reading distance; and wide angle code reading. The result is a versatile, easy to use and intuitive scanner that simplifies any code reading activity.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Postal Codes:

  • China Post

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Light Source:
Laser
Image Sensor Type:
Linear
Depth of Field:
  • 1.5cm - 14.0cm@5mil
  • 0cm - [email protected]
  • 0cm - 60.0cm@10mil
  • 0cm - 80.0cm@13mil
  • 0cm - 119.0cm@20mil
  • 2.0cm - 240.0cm@40mil
  • 5.0cm - 300.0cm@55mil - Reflective
  • 13.0cm - 530.0cm@100mil - Reflective
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Height:
20.3"
Width:
11.4"
Depth:
7.6"
Weight (Approximate):
9.90 oz
Miscellaneous
Additional Information:

Supported Interface:

RS-232

USB Cable separate

Environmentally Friendly:
Yes
Item Numbers
GTIN: 0098594589209, 5712505725153
UPC: 098594589209
EAN: 0098594589209, 5712505725153
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PD7130-YB-PTR Barcode Scanner is also known as DTL-PD7130-YB-PTR or PD7130YBPTR.
