Datalogic PBT9600 – Barcode Scanner – Scanner with Cable and Cradle

Part Number: PBT9600-SRRBK20US
Model: Parts
3-year Premium Plus ($75.73)
3-year Premium ($21.03)
No Support
Add to My Shopping List Add to Compare
$1,003.50
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable/Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D:Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot CodePostal Codes:Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)Stacked Codes:EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E CompositesDigital Watermarking:Digimarc Barcodes (HP and DC models)
Light Source
LED

Product Description:

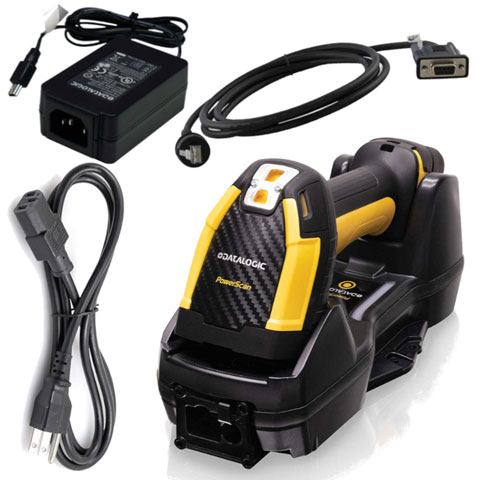

  Barcode Scanner, Datalogic PBT9600, Bluetooth, Standard Range, Removable Battery, RS-232 Kit (Kit includes Scanner, Cradle, RS-232 Cable, Power Supply, and Power Cord)
Explore all Datalogic Parts Accessories
Add to Quote
Datalogic PBT9600-SRRBK20US Barcode Scanner
Datalogic PBT9600-SRRBK20US Barcode Scanner
Datalogic PBT9600-SRRBK20US Barcode Scanner
Datalogic PBT9600-SRRBK20US Barcode Scanner Datalogic PBT9600-SRRBK20US Barcode Scanner Datalogic PBT9600-SRRBK20US Barcode Scanner

Datalogic Parts Accessory Model Overview

Products and parts from Datalogic.
Datalogic PBT9600-SRRBK20US Barcode Scanner Overview

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

WIRELESS CHARGING

The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

Technical Information
Connectivity Technology:
Cable/Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D:

  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code

Postal Codes:

  • Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes (HP and DC models)
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
Area
Scanner Range:
Standard Range
Scanning Distance:
68.90"
Features:
  • Ergonomic Design
  • Beep
  • Vibration
  • Notification LED
  • 3GL
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
10 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
20kV
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
  • Serial
  • USB
Power Description
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Maximum Battery Recharge Time:
3.20 Hour
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Durability:
  • Water Resistant
  • Dust Resistant
  • Drop Resistant
Height:
7.8"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
14.64 oz
Miscellaneous
Ingress Protection (IP) Rating:
  • IP67
  • IP65
Application/Usage:
  • Industrial
  • Manufacturing
  • Warehouse
  • Logistics
  • Inventory
  • Picking
  • Assembly Line
  • Component Tracking
  • Packing
  • Sorting
Item Numbers
UNSPSC: 43211701

Frequently Asked Questions

The Datalogic PBT9600 features Bluetooth wireless connectivity, eliminating cable constraints and allowing operators freedom of movement up to 100 meters. For stationary applications, the scanner also supports RS-232 connectivity via the included cable in this kit. This dual connectivity approach makes it suitable for both mobile warehouse operations and fixed scanning stations.

This kit includes the PBT9600 scanner, a cradle for charging and docking, an RS-232 cable for direct connection, a power supply, and a power cord. Everything you need to deploy the scanner is included, making it ready for immediate use in your warehouse or logistics operation.

The Datalogic PBT9600 features a removable battery designed for extended operation, with accurate power management that guarantees more than one shift of intensive scanning. The removable battery design allows for quick 3-second battery swaps, enabling 24/7 continuous operation when paired with a single or multi-slot battery charger.

The PBT9600 combines omnidirectional area imaging capabilities with outstanding optical characteristics, allowing it to read any barcode type regardless of orientation. It delivers reliable reading performance from contact distance up to over 1.0 meter (3.3 feet), depending on barcode resolution and Datalogic's advanced decoding software.

The Datalogic PBT9600 operates reliably in temperatures ranging from -20°C to 50°C with humidity tolerance up to 95%, making it suitable for diverse warehouse and logistics environments. The scanner comes with a 3-year factory warranty, providing long-term protection for your investment.

Yes, the PBT9600 is specifically designed with ergonomics in mind, featuring a well-balanced handle shape and intuitive aiming system that reduces unnatural wrist movements. This ergonomic design helps achieve high first-pass reading rates while improving operator comfort during extended scanning sessions. Contact us today to learn how we can outfit your team with this user-friendly scanner.

The Datalogic PBT9600-SRRBK20US Barcode Scanner is also known as DTL-PBT9600SRRBK20US or PBT9600SRRBK20US.
