The Datalogic PowerScan™ 9600 Series is a premier handheld industrial scanner engineered for optimal flexibility in 1D/2D barcode reading. Built to thrive in the most challenging environments, the ultra-rugged design combined with an ergonomic shape significantly reduces operator stress. The cordless options, including the PowerScan PM9600 and the PBT9600 equipped with advanced Bluetooth® technology, ensure maximum mobility and productivity. The innovative Datalogic Wireless Charging System eliminates common battery contact issues, facilitating uninterrupted operation and increased efficiency.
Key Features
Ultra-rugged design for extreme environments
Multiple cordless options with Bluetooth® 5.0 support
Datalogic's Wireless Charging System for reduced maintenance
Three optic options to meet diverse reading needs
IP65 and IP67 ratings for water and dust resistance
10 million trigger hits for durability
Specifications
Decoding Capability: 1D/Linear, 2D Codes, Postal Codes
Operating Voltage: 5 - 30 VDC ± 5%
Battery: Lithium-Ion 3350 mAh
Direct Communication: RS-232, USB, Ethernet
Environmental Conditions: Operating -20 to 50 °C, Humidity 0-95%
Dimensions: Corded 19.0 x 14.0 x 7.9 cm; Cordless 19.7 x 14.9 x 7.9 cm

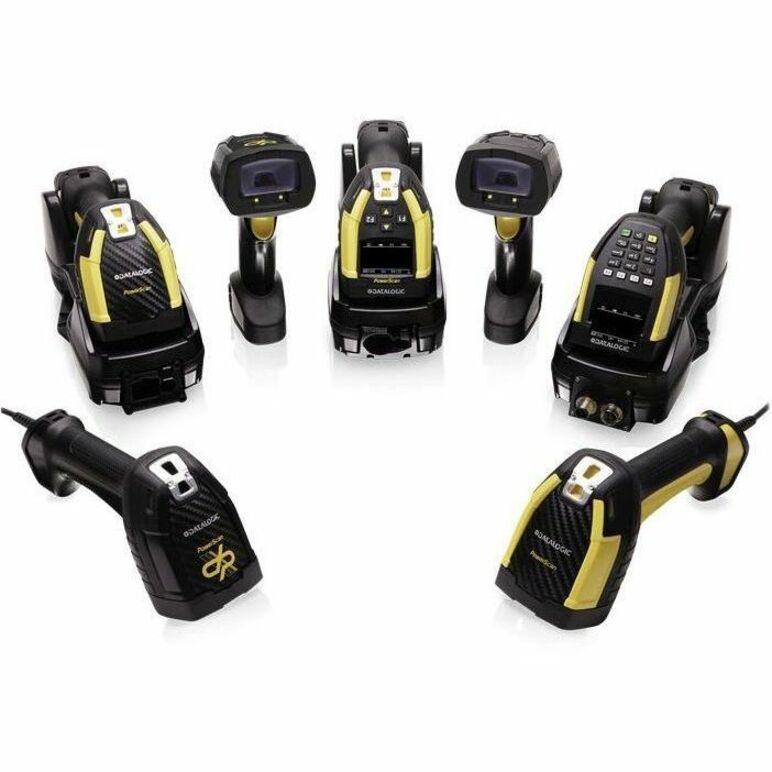

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.
MOBILITY ENHANCES PRODUCTIVITY
The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
WIRELESS CHARGING
The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.
THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED
The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.
What barcode types can the Datalogic PBT9600 Standard Range scanner read?
The Datalogic PowerScan 9600 Standard Range variant features a single camera designed to capture both low-density 1D and 2D barcodes within conventional reading ranges. This makes it ideal for most warehouse and logistics applications where standard-distance barcode reading is sufficient for your operation.
Does the PBT9600-SRRBK10US come with everything needed to start scanning?

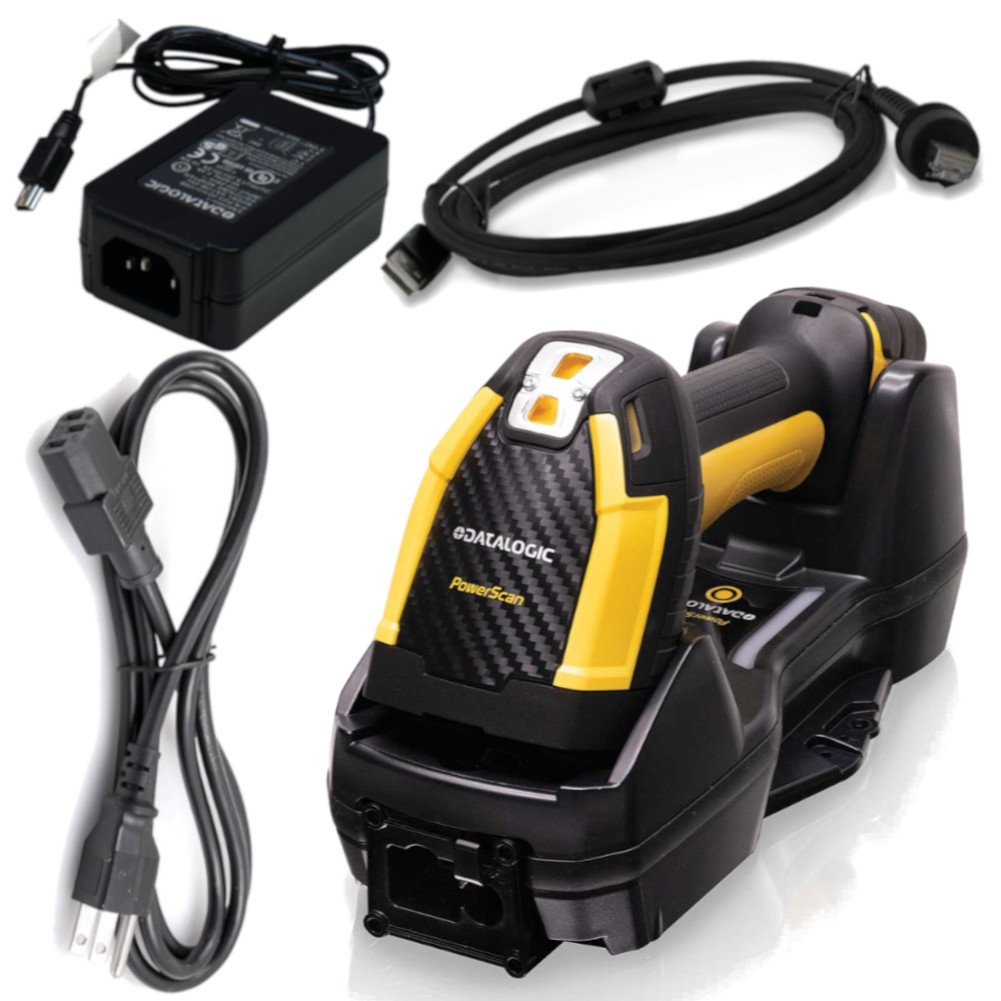

Yes, this USB kit includes the Scanner PBT9600-SR, Cradle BC9630-BT, Cable CAB-552, Power Supply 8-0935, and Power Cord 6003-0941. Everything you need to deploy this Bluetooth scanner in your warehouse is available from us in this complete package.
What connectivity options does the Datalogic PBT9600 offer?
The PBT9600 features Bluetooth wireless technology, eliminating cable constraints and allowing operators freedom of movement throughout your warehouse or logistics facility. The removable battery design combined with the included cradle enables quick battery swaps for continuous 24/7 operation without downtime.
Can the PBT9600 read damaged or dirty barcodes?
Yes, the Datalogic PowerScan 9600 series includes mild white light illumination and a successful 'Green Spot' indicator that confirms successful reads even on damaged or dirty barcodes. This feature ensures reliable scanning performance in challenging warehouse environments where barcode quality may vary.
What are the different performance levels available in the PowerScan 9600 series?
The PowerScan 9600 offers three distinct options: the Standard Range variant with a single camera for conventional reading distances, a High Performance reader with dual cameras for longer-distance reading, and an exclusive Document Capture methodology for color photographs used in quality control or signature confirmation. Contact us today to determine which configuration best fits your specific application requirements.
Is the PBT9600 suitable for rugged warehouse environments?
Yes, like all Datalogic scanners, the PowerScan 9600 is engineered with an ultra-rugged design combined with an ergonomic shape that reduces operator stress and performs reliably in challenging industrial environments. The durable construction and proven Datalogic reliability make it well-suited for demanding warehouse and logistics operations. Visit barcodesinc.com to explore this scanner and our full range of industrial AIDC solutions.
The Datalogic PBT9600-SRRBK10US Barcode Scanner is also known as
DTL-PBT9600SRRBK10US
or PBT9600SRRBK10US.
Full specifications (PDF)
