Datalogic PowerScan PBT9600 – Barcode Scanner – Scanner with Cable and Cradle

Part Number: PBT9600-HPRBK20US
Model: PowerScan
3-year Premium Plus ($75.73)
3-year Premium ($21.03)
No Support
Add to My Shopping List Add to Compare
$1,098.40
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable/Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D:Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot CodePostal Codes:Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)Stacked Codes:EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E CompositesDigital Watermarking:Digimarc Barcodes (HP and DC models)
Light Source
LED

Product Description:

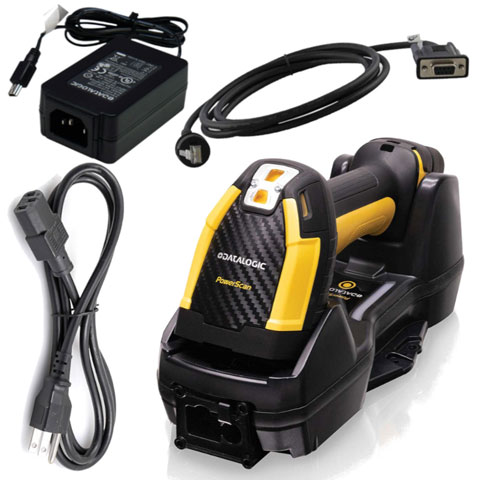

  Barcode Scanner, Datalogic PowerScan PBT9600, Bluetooth, High Performance, Removable Battery, RS-232 Kit (Kit includes Scanner PBT9600-HP, Cradle BC9630-BT, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0941)
Explore all Datalogic PowerScan Barcode Scanners
Add to Quote
Datalogic PBT9600-HPRBK20US Barcode Scanner
Datalogic PBT9600-HPRBK20US Barcode Scanner
Datalogic PBT9600-HPRBK20US Barcode Scanner
Datalogic PBT9600-HPRBK20US Barcode Scanner Datalogic PBT9600-HPRBK20US Barcode Scanner Datalogic PBT9600-HPRBK20US Barcode Scanner
Full specifications (PDF)

Datalogic PowerScan Barcode Scanner Model Overview

The PowerScan family of handheld laser barcode scanners has been specifically designed "from the ground up" to meet the demands of industrial users. In this tough environment, the right tool makes all the difference. With a PowerScan scanner on the job, you'll have one of the toughest, most reliable tools around. Each unit ships with one user's guide.
Datalogic PBT9600-HPRBK20US Barcode Scanner Overview

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

WIRELESS CHARGING

The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable/Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D:

  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code

Postal Codes:

  • Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes (HP and DC models)
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
Area
Scanner Range:
Standard Range
Scanning Distance:
95.60"
Features:
  • Ergonomic Design
  • Beep
  • Vibration
  • Notification LED
  • 3GL
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
10 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
20kV
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
  • Serial
  • USB
  • Ethernet
Power Description
Power Supply Included:
Yes
Battery Information
Battery Included:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Maximum Battery Recharge Time:
3.20 Hour
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Durability:
  • Water Resistant
  • Dust Resistant
  • Drop Resistant
Height:
7.8"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
14.64 oz
Miscellaneous
Ingress Protection (IP) Rating:
  • IP67
  • IP65
Application/Usage:
  • Industrial
  • Manufacturing
  • Warehouse
  • Logistics
  • Inventory
  • Picking
  • Assembly Line
  • Component Tracking
  • Packing
  • Sorting
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Batteries (3)
  • Carrying and Protective Accessories (1)
  • Computer Accessories (5)
  • Docks and Cradles (9)
  • Mounting Hardware and Stands (2)
  • Scanner Accessories (29)
  • Spare Parts (1)

Recommended Accessories for Model: Datalogic PBT9600-HPRBK20US Barcode Scanner

Top Batteries Purchased With Datalogic PBT9600-HPRBK20US

Top Carrying and Protective Accessories Purchased With Datalogic PBT9600-HPRBK20US

Top Computer Accessories Purchased With Datalogic PBT9600-HPRBK20US

See All Computer Accessories for Datalogic PBT9600-HPRBK20US Barcode Scanner >

Top Docks and Cradles Purchased With Datalogic PBT9600-HPRBK20US

See All Docks and Cradles for Datalogic PBT9600-HPRBK20US Barcode Scanner >

Top Mounting Hardware and Stands Purchased With Datalogic PBT9600-HPRBK20US

Top Scanner Accessories Purchased With Datalogic PBT9600-HPRBK20US

See All Scanner Accessories for Datalogic PBT9600-HPRBK20US Barcode Scanner >

Top Spare Parts Purchased With Datalogic PBT9600-HPRBK20US

Frequently Asked Questions

The Datalogic PBT9600 is an ultra-rugged handheld laser scanner designed for industrial environments with an ergonomic shape that reduces operator stress. It features Bluetooth® 5.0 wireless technology for cordless operation, advanced decoding software for reliable reading of any barcode type regardless of orientation, and a removable battery system that supports quick 3-second battery replacement for continuous 24/7 operation. The scanner reads from contact distance to over 1.0 meter depending on barcode resolution, making it ideal for warehouse and logistics applications.

Yes, the PBT9600 is specifically engineered with an ultra-rugged design to thrive in the most challenging industrial environments. Its tough construction and reliable performance make it one of the most durable tools available for warehouse managers and logistics operations. The scanner's robust build quality ensures consistent performance even in demanding conditions typical of distribution centers and manufacturing facilities.

The PBT9600 utilizes Bluetooth® wireless technology that provides freedom from cable entanglement, allowing operation within 1 to 100 meters depending on your mobility needs. The scanner can be configured as Class 1 or Class 2 compliant, and connects through a receiving base station (such as the included BC9630-BT cradle) to your host system via Serial, USB, or Keyboard Wedge interfaces. This wireless flexibility enhances operator efficiency and safety while maintaining reliable connectivity.

The kit includes the PowerScan PBT9600-HP scanner, BC9630-BT Bluetooth cradle, CAB-548 cable, 8-0935 power supply, and 6003-0941 power cord. Each unit also ships with one user's guide to help you get started quickly. This complete RS-232 kit provides everything needed to deploy the scanner in your warehouse or logistics operation.

The PBT9600 combines omnidirectional reading capabilities with outstanding optical characteristics, allowing it to read any kind of barcode regardless of orientation—both 1D and 2D codes. Datalogic's latest decoding software guarantees reliable reading in any type of environment, ensuring high first-pass reading rates for maximum productivity. The scanner's versatility makes it suitable for diverse warehouse and logistics applications.

The PBT9600's advanced power management system allows for long-lasting battery life that guarantees more than one shift of intensive scanning. For 24/7 operations, the quick 3-second battery replacement system combined with single or multi-slot battery chargers enables continuous operation without interruption. Contact us today to discuss battery options and charging solutions that match your specific operational requirements.

The Datalogic PBT9600-HPRBK20US Barcode Scanner is also known as DTL-PBT9600HPRBK20US or PBT9600HPRBK20US.
