The Datalogic PowerScan™ 9600 Series is a premier handheld industrial scanner engineered for optimal flexibility in 1D/2D barcode reading. Built to thrive in the most challenging environments, the ultra-rugged design combined with an ergonomic shape significantly reduces operator stress. The cordless options, including the PowerScan PM9600 and the PBT9600 equipped with advanced Bluetooth® technology, ensure maximum mobility and productivity. The innovative Datalogic Wireless Charging System eliminates common battery contact issues, facilitating uninterrupted operation and increased efficiency.
Key Features
Ultra-rugged design for extreme environments
Multiple cordless options with Bluetooth® 5.0 support
Datalogic's Wireless Charging System for reduced maintenance
Three optic options to meet diverse reading needs
IP65 and IP67 ratings for water and dust resistance
10 million trigger hits for durability
Specifications
Decoding Capability: 1D/Linear, 2D Codes, Postal Codes
Operating Voltage: 5 - 30 VDC ± 5%
Battery: Lithium-Ion 3350 mAh
Direct Communication: RS-232, USB, Ethernet
Environmental Conditions: Operating -20 to 50 °C, Humidity 0-95%
Dimensions: Corded 19.0 x 14.0 x 7.9 cm; Cordless 19.7 x 14.9 x 7.9 cm

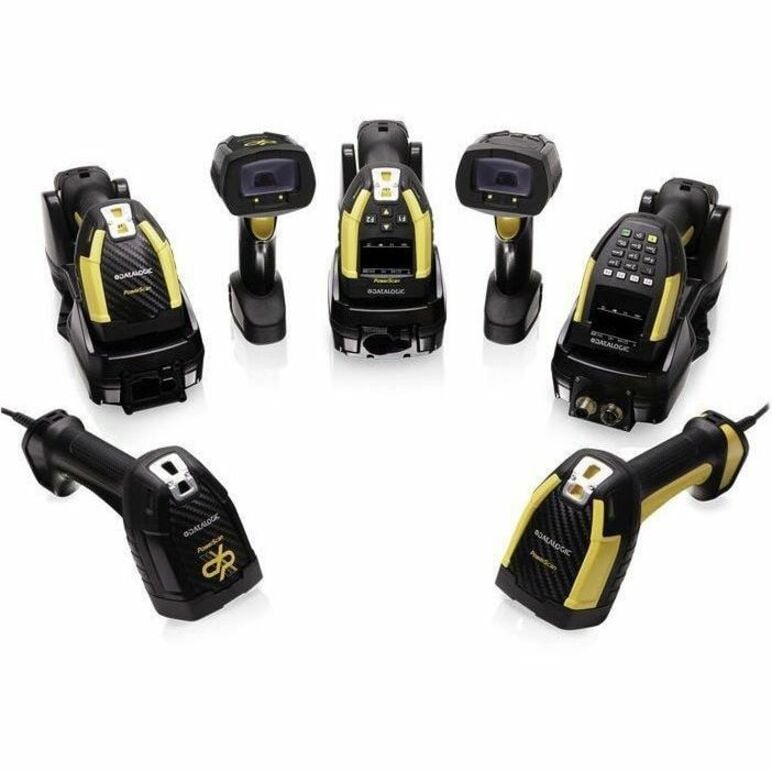

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.
MOBILITY ENHANCES PRODUCTIVITY
The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
WIRELESS CHARGING
The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.
THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED
The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.
What are the main connectivity options for the Datalogic PBT9600?
The Datalogic PBT9600 features Bluetooth 5.0 wireless technology, enabling seamless cordless communication up to 100 meters. This wireless capability eliminates cable tangling and enhances operator mobility and productivity in warehouse and logistics environments. The scanner maintains reliable connectivity while supporting intensive scanning operations across multiple shifts.
Can the PBT9600 read both 1D and 2D barcodes?
Yes, the PowerScan PBT9600 is designed to read both 1D and 2D barcodes with omnidirectional reading capabilities. The scanner can read barcodes regardless of orientation, from contact distance to over 1.0 meter, depending on barcode resolution. Its advanced decoding software ensures reliable reading in any type of environment.
How durable is the PBT9600 in harsh warehouse environments?
The PBT9600 features ultra-rugged construction with IP67 and IP65 sealing ratings, providing protection against water, dust, and drops. This robust build quality makes it ideal for tough industrial environments including warehouses, logistics centers, and outdoor operations. The scanner is engineered to withstand extreme conditions while maintaining consistent performance.

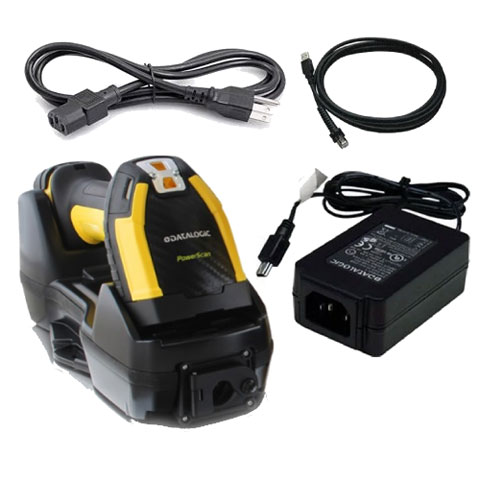

What is included in the PBT9600-HPRBK10US kit?
The USB kit includes the PowerScan PBT9600-HP scanner, BC9630-BT charging cradle, CAB-552 cable, 8-0935 power supply, and 6003-0941 power cord. This complete package provides everything needed for immediate deployment in your scanning operations. Contact us today at barcodesinc.com to verify current kit contents and availability.
How does the removable battery system improve operational efficiency?
The PBT9600 features a quick 3-second removable battery replacement system, allowing continuous 24/7 operation without downtime. Combined with Datalogic's Wireless Charging System, operators can swap batteries seamlessly while maintaining productivity. This design eliminates common battery contact issues and reduces overall maintenance costs.
What makes the PBT9600 better for ergonomics than previous models?
The PowerScan PBT9600 features an ergonomic handle shape, well-balanced weight, and intuitive aiming system that reduces unnatural wrist movements and operator fatigue. The design achieves high first-pass reading rates while improving user comfort during extended scanning sessions. These ergonomic improvements directly enhance productivity and reduce repetitive strain injuries in warehouse operations.
The Datalogic PBT9600-HPRBK10US Barcode Scanner is also known as
DTL-PBT9600HPRBK10US
or PBT9600HPRBK10US.
