Datalogic PowerScan PBT9600 – Barcode Scanner – Scanner with Cable and Cradle

Part Number: PBT9600-HPRBK10EU
Model: Parts
to get Free Ground Shipping on your order.
3-year Premium Plus ($78.25)
3-year Premium ($23.55)
No Support
$1,132.20

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Field of View (Horizontal)
38°
Field of View (Vertical)
24°

Product Description:

  Barcode Scanners, Datalogic, Powerscan PBT9600, Bluetooth, High Performance, Removable Battery, USB Kit, Kit Includes Scanner PBT9600-HP, Cradle BC9630-Bluetooth, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0940

Datalogic Parts Accessory Model Overview

Products and parts from Datalogic.

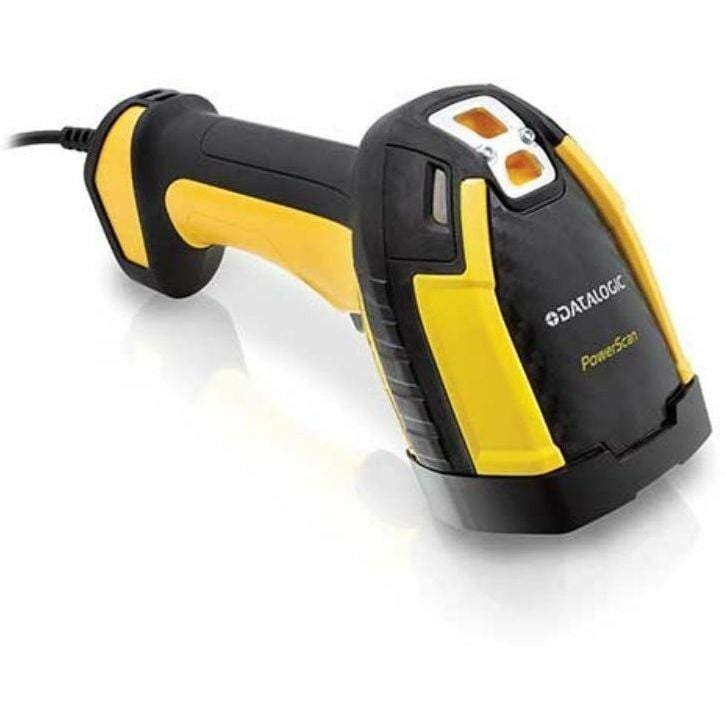

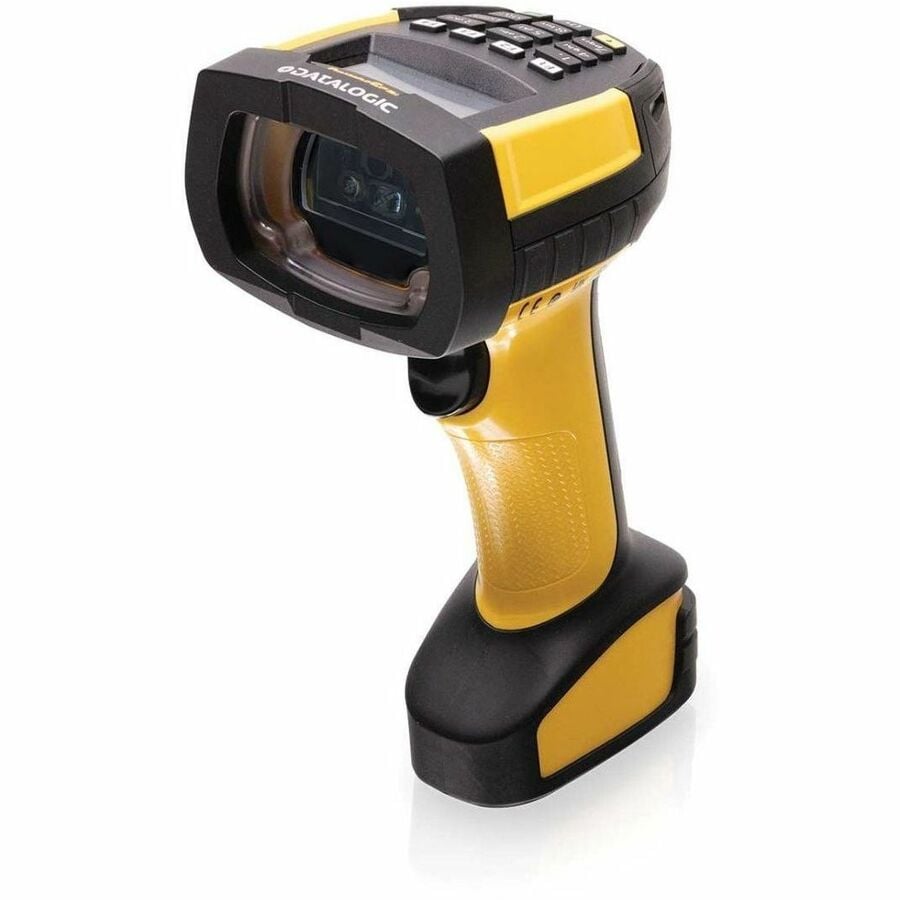

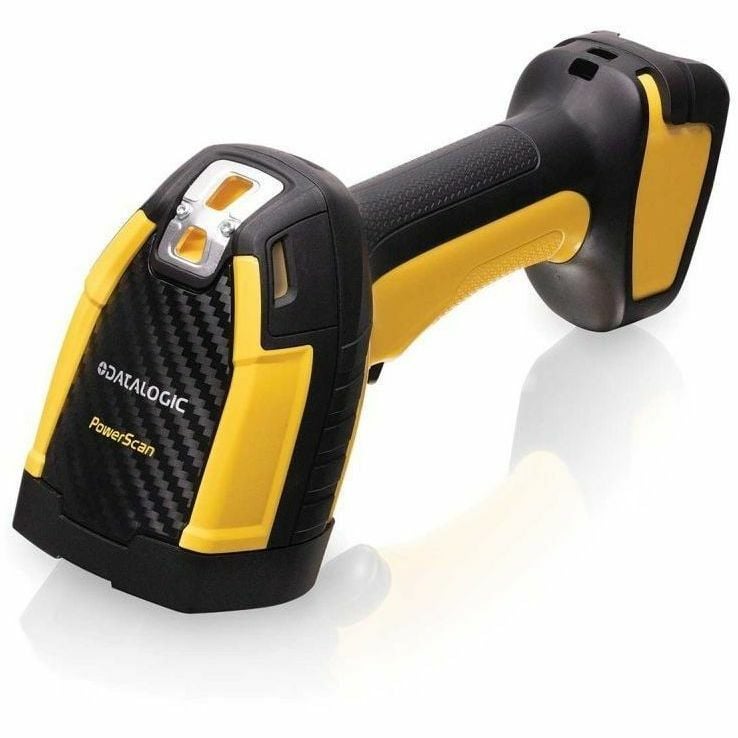

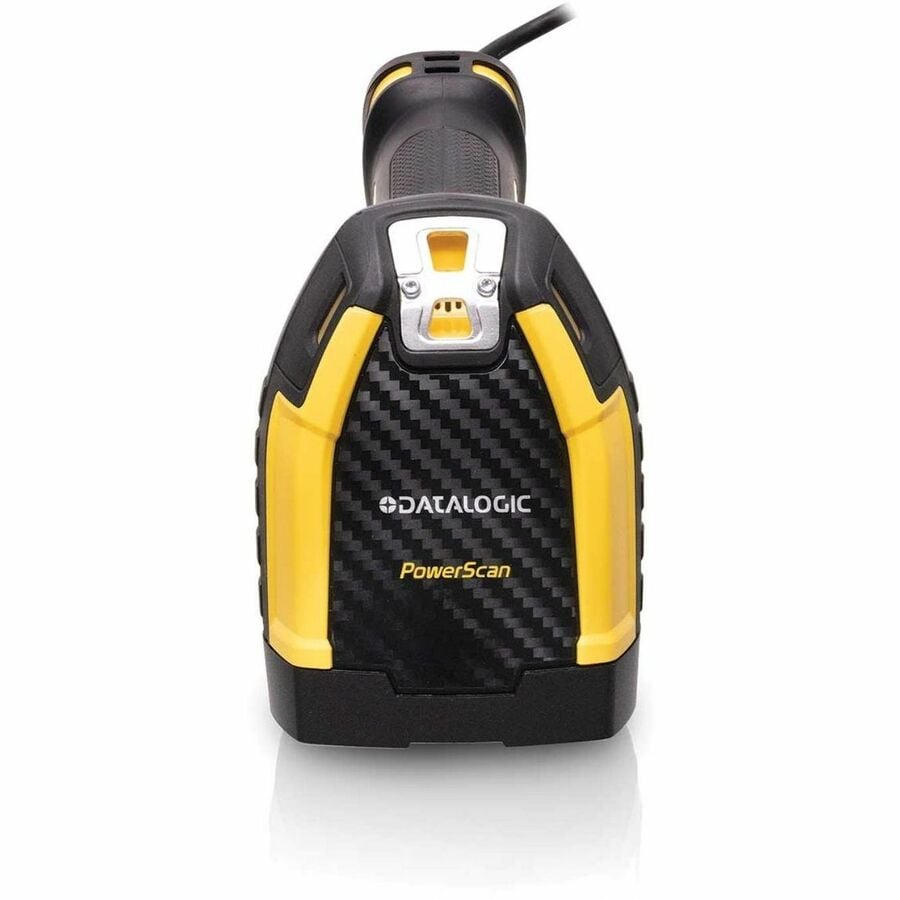

Datalogic PBT9600-HPRBK10EU Barcode Scanner Overview

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

WIRELESS CHARGING

The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Minimum Print Contrast:
15%
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
10 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
USB
Battery Information
Battery Included:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Maximum Battery Recharge Time:
2.50 Hour
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Height:
7.8"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
14.64 oz
Miscellaneous
Ingress Protection (IP) Rating:
  • IP67
  • IP65
Application/Usage:
  • Manufacturing
  • Warehouse
  • Logistics
  • Picking
  • Inventory
  • Asset Tracking
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PBT9600-HPRBK10EU Barcode Scanner is also known as DTL-PBT9600HPRBK10EU or PBT9600HPRBK10EU.
