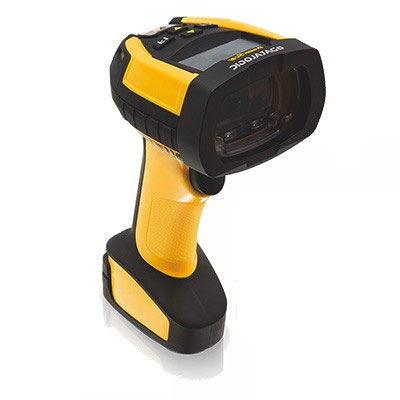

The Datalogic PowerScan™ 9600 Series is a premier handheld industrial scanner engineered for optimal flexibility in 1D/2D barcode reading. Built to thrive in the most challenging environments, the ultra-rugged design combined with an ergonomic shape significantly reduces operator stress. The cordless options, including the PowerScan PM9600 and the PBT9600 equipped with advanced Bluetooth® technology, ensure maximum mobility and productivity. The innovative Datalogic Wireless Charging System eliminates common battery contact issues, facilitating uninterrupted operation and increased efficiency.
Key Features
Ultra-rugged design for extreme environments
Multiple cordless options with Bluetooth® 5.0 support
Datalogic's Wireless Charging System for reduced maintenance
Three optic options to meet diverse reading needs
IP65 and IP67 ratings for water and dust resistance
10 million trigger hits for durability
Specifications
Decoding Capability: 1D/Linear, 2D Codes, Postal Codes
Operating Voltage: 5 - 30 VDC ± 5%
Battery: Lithium-Ion 3350 mAh
Direct Communication: RS-232, USB, Ethernet
Environmental Conditions: Operating -20 to 50 °C, Humidity 0-95%
Dimensions: Corded 19.0 x 14.0 x 7.9 cm; Cordless 19.7 x 14.9 x 7.9 cm
The PowerScan family of bar code readers is the ultimate industrial handheld scanner designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.
DPM TECHNOLOGY
The PowerScan 9600 DPX series addresses Direct Part Marking (DPM) applications where codes are directly marked on the items for traceability with different marking technologies such as laser etching, dot peening, inkjet printing and electrochemical etching. The Datalogic patented 4D learning system automatically sets up the best acquisition parameters and decoding algorithms, without the need to configure the scanner for every different application.
WIRELESS CHARGING
The PowerScan 9600 DPX scanner features Datalogic's Wireless Charging system. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.
MOBILITY ENHANCES PRODUCTIVITY
The PowerScan 9600 DPX cordless model further enhances the operator efficiency and safety with Bluetooth 5.0 or Datalogic's STAR Cordless System. The base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet, and Industrial protocols
What barcode types can the Datalogic PBT9600 read?
The Datalogic PBT9600 decodes 1D/Linear barcodes, 2D codes, and postal codes, making it versatile for diverse warehouse and logistics applications. Its three optic options allow you to select the configuration that best matches your specific reading requirements, whether you're scanning at close range or from greater distances.
Is the PBT9600 suitable for wet or dusty warehouse environments?
Yes, the PBT9600 features IP65 and IP67 ratings for excellent water and dust resistance, making it ideal for challenging warehouse and outdoor environments. The ultra-rugged design is engineered to thrive in extreme conditions while maintaining reliable performance across temperature ranges from -20 to 50°C.
How does the Datalogic Wireless Charging System benefit operations?
The innovative Datalogic Wireless Charging System eliminates common battery contact corrosion issues, reducing maintenance requirements and facilitating uninterrupted operation. Combined with the removable 3350 mAh Lithium-Ion battery, this system enables quick battery swaps for 24/7 continuous scanning without downtime.
What connectivity options are available with the PBT9600?
The PBT9600 supports multiple direct communication methods including RS-232, USB, and Ethernet connectivity, along with advanced Bluetooth 5.0 wireless technology for cordless operation. This flexibility allows seamless integration with your existing warehouse management systems and mobile infrastructure.
How durable is the PBT9600 trigger mechanism?
The PBT9600 is rated for 10 million trigger hits, ensuring exceptional durability and longevity even in high-volume scanning environments. This robust construction, combined with the ergonomic handle design, reduces operator stress while maintaining reliable performance over years of intensive use.
What warranty and support does Barcodes Inc provide with the PBT9600?
The Datalogic PBT9600 comes with a 3-Year Factory Warranty covering defects and performance issues. Contact us today at barcodesinc.com to discuss warranty options, technical support, and our team's expertise in configuring the right scanner kit for your logistics operation.
The Datalogic PBT9600-DPXRBK30US Barcode Scanner is also known as
DTL-PBT9600DPXRBK30U
or PBT9600DPXRBK30US.
Full specifications (PDF)
