Datalogic PBT9600 – Barcode Scanner

Part Number: PBT9600-DPXRBK10US
Model: PBT9600
Add to My Shopping List Add to Compare
$1,757.17
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D:Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot CodePostal Codes:Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)Stacked Codes:EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E CompositesDigital Watermarking:Digimarc Barcodes (HP and DC models)
Light Source
LED

Product Description:

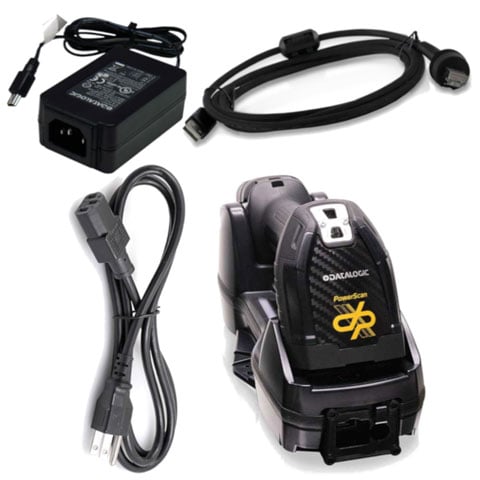

  Barcode Scanner, Datalogic PBT9600, Direct Part Marking, Bluetooth, Includes: Removable Battery, USB Kit (Kit includes Scanner PBT9600-DPX, cradle BC9630-BT, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0941)
Explore all Datalogic PBT9600 Barcode Scanners
Add to Quote
Datalogic PBT9600-DPXRBK10US Barcode Scanner
Datalogic PBT9600-DPXRBK10US Barcode Scanner
Datalogic PBT9600-DPXRBK10US Barcode Scanner
Datalogic PBT9600-DPXRBK10US Barcode Scanner Datalogic PBT9600-DPXRBK10US Barcode Scanner Datalogic PBT9600-DPXRBK10US Barcode Scanner
Full specifications (PDF)

Datalogic PBT9600 Barcode Scanner Model Overview

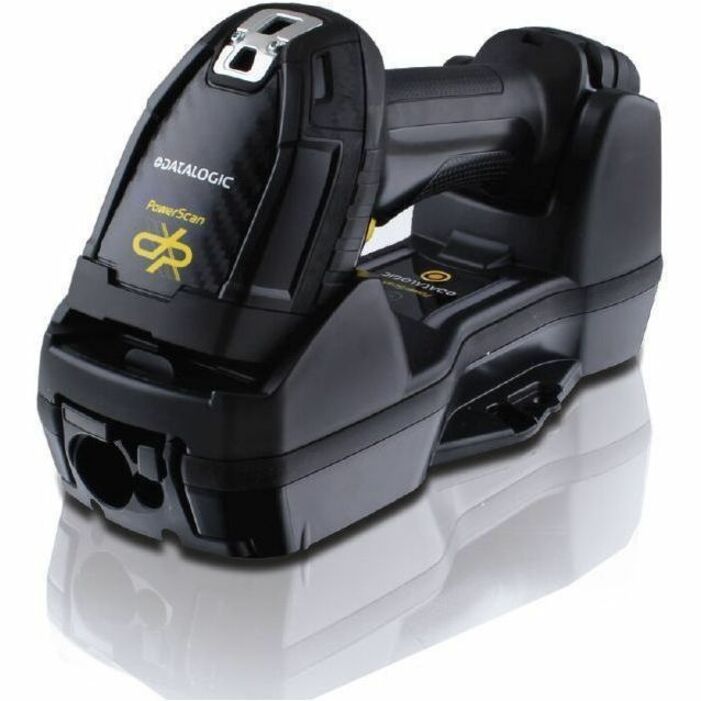

The Datalogic PowerScan™ 9600 Series is a premier handheld industrial scanner engineered for optimal flexibility in 1D/2D barcode reading. Built to thrive in the most challenging environments, the ultra-rugged design combined with an ergonomic shape significantly reduces operator stress. The cordless options, including the PowerScan PM9600 and the PBT9600 equipped with advanced Bluetooth® technology, ensure maximum mobility and productivity. The innovative Datalogic Wireless Charging System eliminates common battery contact issues, facilitating uninterrupted operation and increased efficiency.


Key Features
  • Ultra-rugged design for extreme environments
  • Multiple cordless options with Bluetooth® 5.0 support
  • Datalogic's Wireless Charging System for reduced maintenance
  • Three optic options to meet diverse reading needs
  • IP65 and IP67 ratings for water and dust resistance
  • 10 million trigger hits for durability

Specifications
  • Decoding Capability: 1D/Linear, 2D Codes, Postal Codes
  • Operating Voltage: 5 - 30 VDC ± 5%
  • Battery: Lithium-Ion 3350 mAh
  • Direct Communication: RS-232, USB, Ethernet
  • Environmental Conditions: Operating -20 to 50 °C, Humidity 0-95%
  • Dimensions: Corded 19.0 x 14.0 x 7.9 cm; Cordless 19.7 x 14.9 x 7.9 cm
  • Weight: Corded 318-455 g, Cordless 415-455 g
  • Warranty: 3-Year Factory Warranty
Datalogic PBT9600-DPXRBK10US Barcode Scanner Overview

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan family of bar code readers is the ultimate industrial handheld scanner designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.

DPM TECHNOLOGY

The PowerScan 9600 DPX series addresses Direct Part Marking (DPM) applications where codes are directly marked on the items for traceability with different marking technologies such as laser etching, dot peening, inkjet printing and electrochemical etching. The Datalogic patented 4D learning system automatically sets up the best acquisition parameters and decoding algorithms, without the need to configure the scanner for every different application.

WIRELESS CHARGING

The PowerScan 9600 DPX scanner features Datalogic's Wireless Charging system. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan 9600 DPX cordless model further enhances the operator efficiency and safety with Bluetooth 5.0 or Datalogic's STAR Cordless System™. The base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet, and Industrial protocols.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D:

  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code

Postal Codes:

  • Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes (HP and DC models)
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
Area
Scanner Range:
Standard Range
Scanning Distance:
8.90"
Features:
  • Ergonomic Design
  • Beep
  • Vibration
  • Notification LED
  • 3GL
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Direct Part Marking (DPM) Decoding:
Yes
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
20kV
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Maximum Battery Recharge Time:
3.20 Hour
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Color Family:
Black
Product Color:
Black
Durability:
  • Water Resistant
  • Dust Resistant
  • Drop Resistant
Height:
7.8"
Width:
3.1"
Length:
5.9"
Weight (Approximate):
15.33 oz
Miscellaneous
Ingress Protection (IP) Rating:
  • IP67
  • IP65
Application/Usage:
  • Industrial
  • Manufacturing
  • Inventory
  • Assembly Line
  • Component Tracking
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (11)
  • Carrying and Protective Accessories (1)
  • Docks and Cradles (1)
  • Mounting Hardware and Stands (3)
  • Power Device (8)
  • Scanner Accessories (5)

Recommended Accessories for Model: Datalogic PBT9600-DPXRBK10US Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Datalogic PBT9600-DPXRBK10US

See All Cables, Connectors, and Adapters for Datalogic PBT9600-DPXRBK10US Barcode Scanner >

Top Carrying and Protective Accessories Purchased With Datalogic PBT9600-DPXRBK10US

Top Docks and Cradles Purchased With Datalogic PBT9600-DPXRBK10US

Top Mounting Hardware and Stands Purchased With Datalogic PBT9600-DPXRBK10US

Top Power Device Purchased With Datalogic PBT9600-DPXRBK10US

See All Power Device for Datalogic PBT9600-DPXRBK10US Barcode Scanner >

Top Scanner Accessories Purchased With Datalogic PBT9600-DPXRBK10US

See All Scanner Accessories for Datalogic PBT9600-DPXRBK10US Barcode Scanner >

Frequently Asked Questions

The PBT9600 is a high-performance scanner designed to read both 1D and 2D barcodes with omnidirectional reading capabilities. Its advanced optics and decoding software enable reliable scanning from contact distance to over 1 meter, depending on barcode resolution, making it versatile across warehouse and logistics applications.

Yes, the PBT9600 features robust IP67 and IP65 sealing that protects against water, dust, and drops, making it ideal for tough industrial environments. Its rugged construction is engineered to withstand the demanding conditions found in warehouses, manufacturing floors, and outdoor logistics operations.

The PBT9600 uses Bluetooth 5.0 wireless technology to provide seamless communication with compatible devices without cable constraints. This cordless capability allows operators up to 100 meters of freedom, significantly improving mobility and reducing the risk of tangled cables in busy warehouse environments.

The kit includes the Scanner PBT9600-DPX, cradle BC9630-BT, USB Cable CAB-552, Power Supply 8-0935, and Power Cord 6003-0941. This complete package provides everything needed for immediate deployment, including wireless charging capability through the included cradle.

Yes, the PBT9600 features a removable battery that can be replaced in approximately 3 seconds, allowing for continuous 24/7 operation when paired with a single or multi-slot battery charger. This quick-swap design eliminates extended downtime during shift changes or high-volume scanning periods.

The PBT9600's color sensor technology enhances barcode scanning precision, particularly in challenging lighting conditions or on barcodes with variable print quality. This advanced feature ensures higher first-pass reading rates and reduces the need for multiple scan attempts, improving overall warehouse productivity.

The Datalogic PBT9600-DPXRBK10US Barcode Scanner is also known as DTL-PBT9600DPXRBK10U or PBT9600DPXRBK10US.
