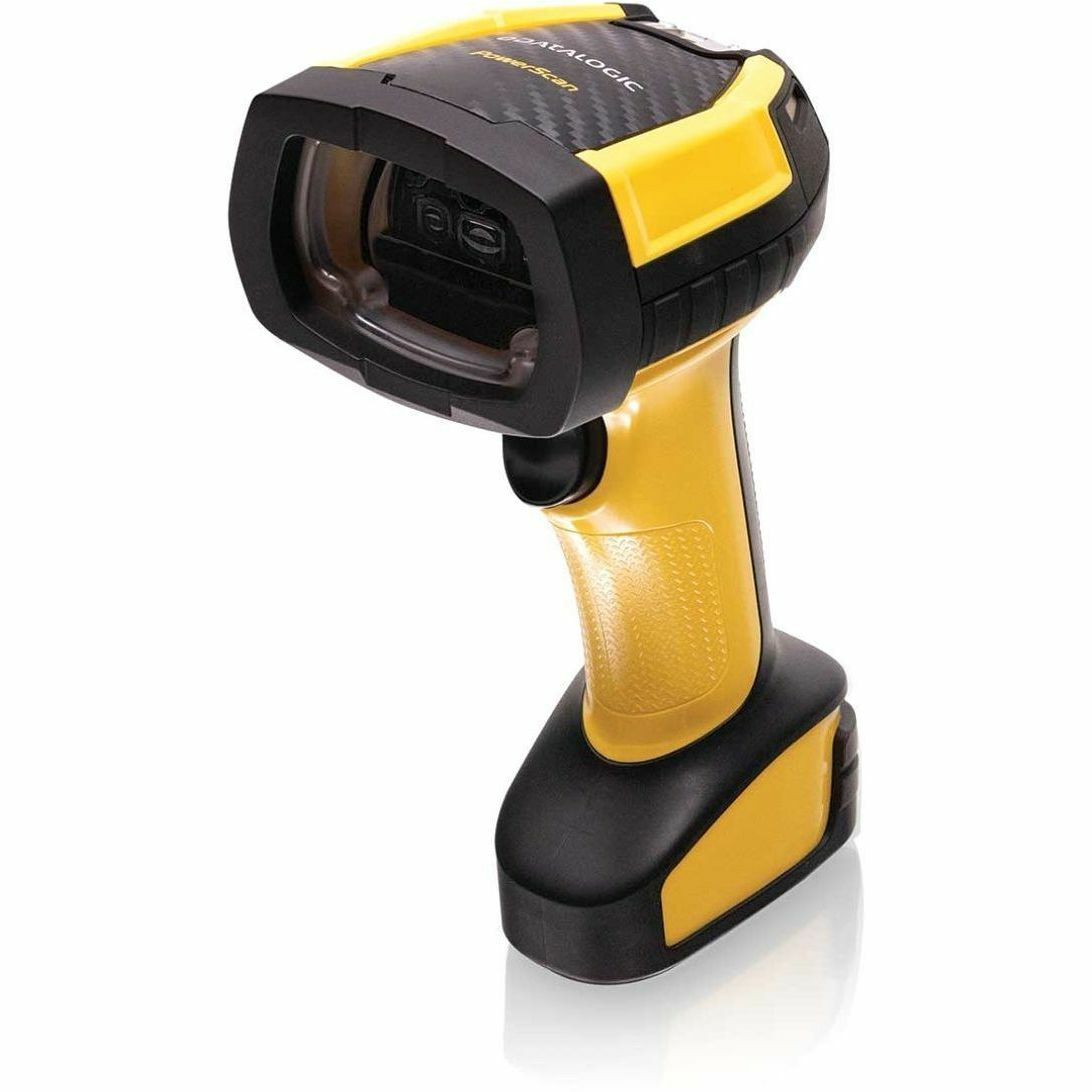

The Datalogic PowerScan™ 9600 Series is a premier handheld industrial scanner engineered for optimal flexibility in 1D/2D barcode reading. Built to thrive in the most challenging environments, the ultra-rugged design combined with an ergonomic shape significantly reduces operator stress. The cordless options, including the PowerScan PM9600 and the PBT9600 equipped with advanced Bluetooth® technology, ensure maximum mobility and productivity. The innovative Datalogic Wireless Charging System eliminates common battery contact issues, facilitating uninterrupted operation and increased efficiency.
Key Features
Ultra-rugged design for extreme environments
Multiple cordless options with Bluetooth® 5.0 support
Datalogic's Wireless Charging System for reduced maintenance
Three optic options to meet diverse reading needs
IP65 and IP67 ratings for water and dust resistance
10 million trigger hits for durability
Specifications
Decoding Capability: 1D/Linear, 2D Codes, Postal Codes
Operating Voltage: 5 - 30 VDC ± 5%
Battery: Lithium-Ion 3350 mAh
Direct Communication: RS-232, USB, Ethernet
Environmental Conditions: Operating -20 to 50 °C, Humidity 0-95%
Dimensions: Corded 19.0 x 14.0 x 7.9 cm; Cordless 19.7 x 14.9 x 7.9 cm
The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.
MOBILITY ENHANCES PRODUCTIVITY
The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
WIRELESS CHARGING
The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.
THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED
The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.
What are the key features of the Datalogic PBT9600 barcode scanner?
The Datalogic PBT9600 PowerScan combines Bluetooth wireless technology, Document Capture capabilities, and a removable battery for maximum flexibility in demanding environments. It features color sensor technology for improved scanning precision, wireless charging to reduce maintenance costs, and rugged IP67/IP65 sealing to withstand drops, dust, and water exposure. This makes it ideal for warehouse and logistics operations requiring both 1D and 2D barcode scanning.
Is the PBT9600 suitable for harsh warehouse environments?
Yes, the PBT9600 is specifically designed for tough environments with IP67 and IP65 sealing ratings that protect against water, dust, and drops. It operates reliably in temperatures ranging from -20°C to 50°C with humidity levels up to 95%, making it well-suited for cold storage, outdoor logistics, and demanding industrial applications. We offer this scanner because it's built to handle the real-world challenges warehouse managers face.
What connectivity options does the PBT9600 provide?
The PBT9600 features Bluetooth wireless technology that enables seamless communication without cable constraints, allowing operators freedom of movement up to 100 meters depending on your environment. The wireless kit available from us includes a Bluetooth cradle (BC9630-BT), USB cable, power supply, and power cord for easy integration into your existing infrastructure. This wireless capability significantly improves productivity by reducing operator fatigue and eliminating tangled cables.
How long does the battery last on a single charge?
The PBT9600's accurate power management allows for long-lasting battery life that guarantees more than one shift of intensive scanning operations. The removable battery design enables quick 3-second battery replacement, and when paired with single or multi-slot battery chargers, you can maintain continuous 24/7 operation without downtime. Contact us today to discuss battery capacity specifications for your specific scanning volume requirements.
What barcode types can the PBT9600 read?
The PBT9600 is an area imaging scanner with omnidirectional reading capabilities that can read any kind of barcode—both 1D and 2D—regardless of orientation, from contact distance to over 1.0 meter depending on barcode resolution. Its advanced decoding software delivers snappy reading performance in any environment, and the Document Capture feature enables simultaneous scanning of documents and barcodes. This versatility makes it ideal for diverse logistics and warehouse applications.
What is included in the PBT9600 USB kit?

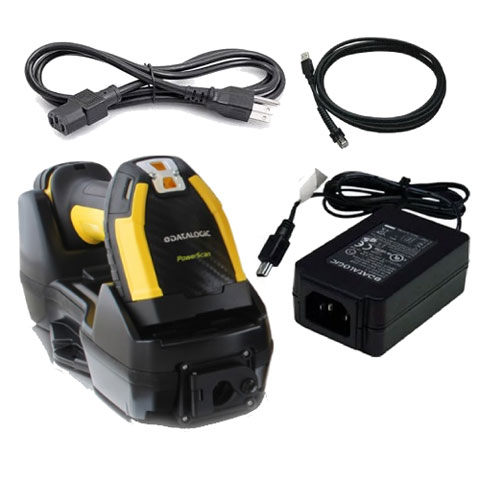

The PBT9600-DCRBK10US kit available from us includes the PowerScan PBT9600-DC scanner, BC9630-BT Bluetooth cradle, CAB-552 cable, 8-0935 power supply, and 6003-0941 power cord—everything needed for immediate deployment. The kit is designed for quick setup and integration into your warehouse management system. Contact us today if you need clarification on kit contents or alternative configuration options for your specific needs.
The Datalogic PBT9600-DCRBK10US Barcode Scanner is also known as
DTL-PBT9600DCRBK10US
or PBT9600DCRBK10US.
Full specifications (PDF)
