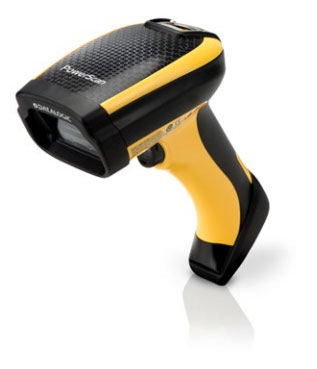

Datalogic PBT9501-ARRBK20US Barcode Scanner

Datalogic PowerScan PBT9501 - Cordless Barcode Scanner, Datalogic PowerScan PBT9501, 2D Area Imager, Rugged, Handheld, Bluetooth, RS-232, Black/Yellow, Auto Range, Removable Battery. Kit inc. PBT9501-ARRB Scanner, BC9030-BT Base, US Power Brick/Cord, CAB-433 Cable
  • Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • LED aimer is a perfect choice for patient-facing applications
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
  • Bluetooth technology - Allows compatibility with most of your smart devices
Read More
$1,502.48
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Quantity Unit Price Discount
2 $1,487.46 1% OFF
5 $1,457.41 3% OFF
Add to Quote
Datalogic PowerScan PBT9501-AR Barcode Scanner Model Overview
Datalogic's PowerScan PBT9501-AR rugged auto range barcode scanner can support multi-code features as well as pick mode where only the barcode pointed at by the aiming system is decoded. The PBT9501-AR is Bluetooth enabled, and it also boasts 3-second battery replacement with its single or multi-slot battery charger, guaranteeing continuous operation without interruption. The PowerScan PBT9501-AR reader has been tested to withstand extreme environmental conditions and is also suitable for the toughest industrial applications. It can read codes from contact to over 1 m / 3.3 ft, depending on the bar code resolution.
Datalogic PBT9501-ARRBK20US Barcode Scanner Overview

AIM, TRIGGER, DECODE:

IT'S THAT SIMPLE! An intuitive and effortless scanning experience is the target of the PowerScan™ 9501 series. They combine omnidirectional reading capabilities, typical in all area imaging scanners, with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1 m / 3.3 ft, depending on the bar code resolution.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan PBT9501 further enhances operator efficiency and safety with Bluetooth® wireless technology; no matter if you need 1 or 100 meters of freedom: you never need to worry about getting tangled up in the cable. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. Should you need to operate for 24 hours, a quick 3-second battery replacement combined with a single or multi-slot battery charger allows for continuous operation without interruption.

The BC9180-BT base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus

DEVELOPED WITH THE USER IN MIND

Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort.

The PowerScan 9501 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications

BUILT TO LAST

The rugged mechanics of the PowerScan brand guarantees reliable, long term operation. Repeated shocks and indoor / outdoor usage in the toughest environmental conditions do not impact its performance or reliability

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code

Postal Codes:

  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Portuguese Post
  • Postnet
  • Royal Mail Code (RM4SCC)
  • Swedish Post

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scanner Range:
Auto Range
Scanning Distance:
33.40"
Cable Type Included:
Serial
Reading Angle (Skew):
40°
Reading Angle (Pitch):
40°
Reading Angle (Roll):
360°
Image Formats:
  • BMP
  • JPEG
  • TIFF
Maximum Ambient Light:
100000 lux
Drop Specification:

PBT9501: Withstands 50 drops from 2 m / 6.6 ft onto a concrete surface

Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
7.5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
10 mil
Illumination Type:
LED
Illumination Color:
White
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
  • Serial
  • Keyboard Wedge
Battery Information
Battery Included:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Product Color:
  • Yellow
  • Black
Weight (Approximate):
14.11 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Asset Tracking
  • Manufacturing
  • Inventory
  • Logistics
  • Picking
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PBT9501-ARRBK20US Barcode Scanner is also known as DTL-PBT9501ARRBK20US or PBT9501ARRBK20US.
