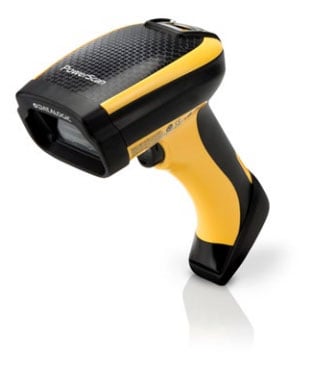

Datalogic PBT9501-ARRB Barcode Scanner

A newer version of this item is available.
It is replaced by the Datalogic PBT9600-ARRB Barcode Scanner.

Datalogic PowerScan PBT9501 - Cordless Barcode Scanner, Datalogic PowerScan PBT9501, 2D Area Imager, Rugged, Handheld, Bluetooth, 20m/65ft Communication Range, Bluetooth Connection, SCANNER ONLY, Black/Yellow, Auto Range, Removable Battery

Connectivity

Cordless

Form Factor

Handheld

Interface Options

Bluetooth

Scanner Capability

Scanner Type

Imager

Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
LED aimer is a perfect choice for patient-facing applications
Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
Bluetooth technology - Allows compatibility with most of your smart devices

Need a different version? See all Datalogic PowerScan PBT9501-AR Barcode Scanners

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Datalogic PowerScan PBT9501-AR Barcode Scanner Model Overview

Datalogic's PowerScan PBT9501-AR rugged auto range barcode scanner can support multi-code features as well as pick mode where only the barcode pointed at by the aiming system is decoded. The PBT9501-AR is Bluetooth enabled, and it also boasts 3-second battery replacement with its single or multi-slot battery charger, guaranteeing continuous operation without interruption. The PowerScan PBT9501-AR reader has been tested to withstand extreme environmental conditions and is also suitable for the toughest industrial applications. It can read codes from contact to over 1 m / 3.3 ft, depending on the bar code resolution.

Datalogic PBT9501-ARRB Barcode Scanner Overview

AIM, TRIGGER, DECODE:

IT'S THAT SIMPLE! An intuitive and effortless scanning experience is the target of the PowerScan™ 9501 series. They combine omnidirectional reading capabilities, typical in all area imaging scanners, with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1 m / 3.3 ft, depending on the bar code resolution.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan PBT9501 further enhances operator efficiency and safety with Bluetooth® wireless technology; no matter if you need 1 or 100 meters of freedom: you never need to worry about getting tangled up in the cable. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. Should you need to operate for 24 hours, a quick 3-second battery replacement combined with a single or multi-slot battery charger allows for continuous operation without interruption.

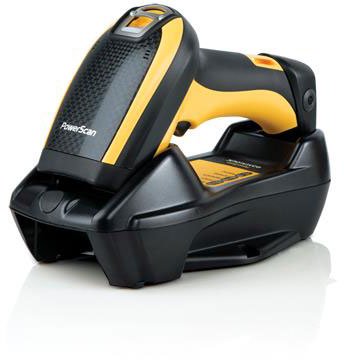

The BC9180-BT base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus

DEVELOPED WITH THE USER IN MIND

Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort.

The PowerScan 9501 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications

BUILT TO LAST

The rugged mechanics of the PowerScan brand guarantees reliable, long term operation. Repeated shocks and indoor / outdoor usage in the toughest environmental conditions do not impact its performance or reliability

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

1D:

Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

Aztec Code
China Han Xin Code
Data Matrix
MaxiCode
Micro QR Code
QR Code

Postal Codes:

Australian Post
China Post
IMB
Japanese Post
KIX Post
Planet Code
Portuguese Post
Postnet
Royal Mail Code (RM4SCC)
Swedish Post

Stacked Codes:

EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites

Light Source:

LED

Image Sensor Type:

Imager

Scan Mode:

Trigger

Scanner Range:

Auto Range

Scanning Distance:

33.40"

Cable Type Included:

Serial

Reading Angle (Skew):

40°

Reading Angle (Pitch):

40°

Reading Angle (Roll):

360°

Image Formats:

BMP
JPEG
TIFF

Maximum Ambient Light:

100000 lux

Drop Specification:

PBT9501: Withstands 50 drops from 2 m / 6.6 ft onto a concrete surface

Minimum Print Contrast:

15%

Minimum Element Resolution (DataMatrix):

7.5 mil

Maximum Element Resolution (DataMatrix):

10 mil

Maximum Element Resolution (PDF417):

10 mil

Illumination Type:

LED

Illumination Color:

White

Network & Communication

Bluetooth:

Yes

Radio Frequency:

Yes

Interfaces/Ports

Host Interface:

Serial
Keyboard Wedge

Battery Information

Battery Included:

Yes

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Capacity:

3350 mAh

Environmental Conditions

Operating Temperature:

-4°F (-20°C) to 122°F (50°C)

Storage Temperature:

-40°F (-40°C) to 158°F (70°C)

Humidity (Non-condensing):

95%

Physical Characteristics

Form Factor:

Handheld

Rugged:

Yes

Product Color:

Yellow
Black

Weight (Approximate):

14.11 oz

Miscellaneous

Ingress Protection (IP) Rating:

IP65

Application/Usage:

Asset Tracking
Manufacturing
Inventory
Logistics
Picking

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Datalogic PBT9501-ARRB Barcode Scanner is also known as DTL-PBT9501ARRB or PBT9501ARRB.
