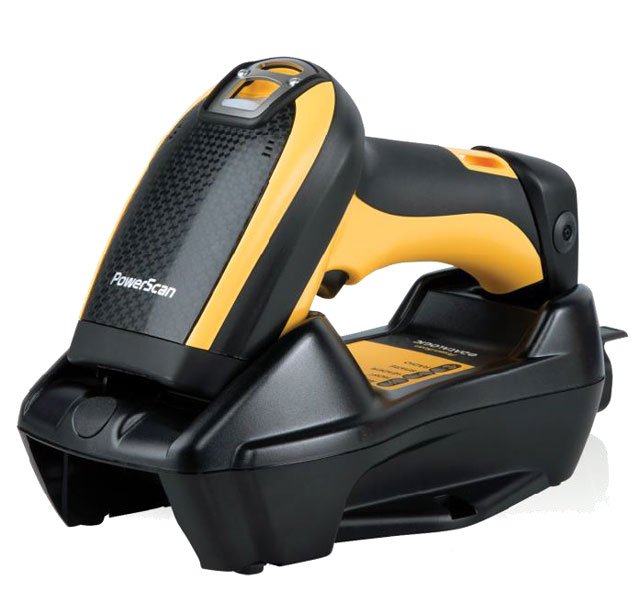

Datalogic PBT9500-RBK10US Barcode Scanner

Datalogic PBT9501-RBK10US Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic PBT9501-RBK10US Barcode Scanner.

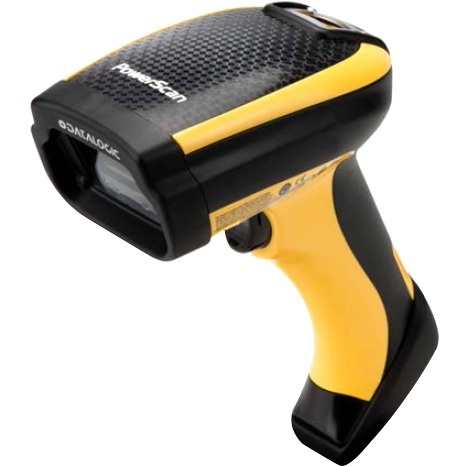

Datalogic PowerScan PBT9500 - Datalogic PowerScan PBT9530 Handheld Barcode Scanner Kit - Wireless Connectivity - 1D, 2D - Imager - Bluetooth - Yellow, Black
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Increases productivity by giving the opportunity to wander, without the tangle of cables
  • Bluetooth technology - Allows compatibility with most of your smart devices
Read More
Discontinued See Replacement
Add to Quote
Datalogic PowerScan PBT9500 Barcode Scanner Model Overview
The PowerScan PBT9500 imager by Datalogic is targeted to be the most suitable cordless solution for all applications in warehouses, transportation & logistics, and manufacturing where the bar code is at a handy distance (within 1.0 m/3.3 ft), regardless of whether it is a 1D or 2D code. The omnidirectional reading capability of the PowerScan PBT9500 combined with the snappiness and the depth-of-field features allow the imager to be faster and therefore, a preferred solution over standard laser scanners. Additionally, the PowerScan PBT9500 features specific models specialized for reading codes marked with DPM (Direct Part Marking) technology. The overall mechanics of the PowerScan PBT9500 will be the same as the other models, while the optics and the software are optimized to address items marked with DPM technology.
Datalogic PBT9500-RBK10US Barcode Scanner Overview

The PowerScan 9500 family of imagers is targeted to be the most suitable solution for all applications in warehouses, transportation & logistics and manufacturing. The omnidirectional reading capability combined with the snappiness and the depth-of-field features allow the PowerScan 9500 imagers to be faster and therefore, a preferred solution over standard laser scanners.

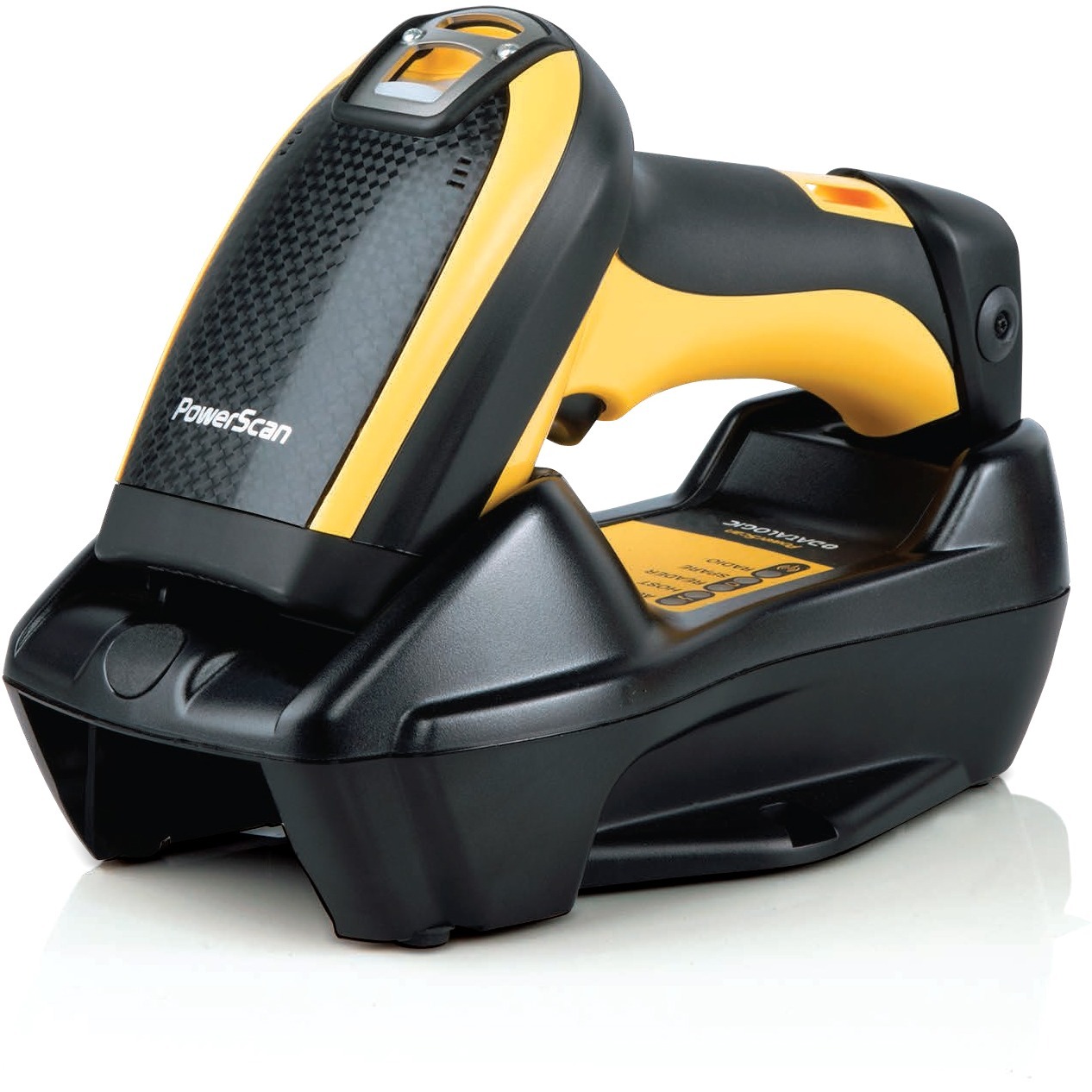

The PowerScan PBT9500 area imager is a mobile scanner based on Bluetooth® wireless technology. It includes all of the scanning features associated with the PowerScan 9500 family and provides the freedom of mobility to move around a warehouse without the entanglement of cables.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D / Linear Cdoes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
Postal Codes:
  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Portuguese Post
  • Postnet
  • Royal Mail Code (RM4SCC)
  • Swedish Post
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Height:
8.3"
Width:
2.9"
Depth:
4.3"
Weight (Approximate):
13.40 oz
Miscellaneous
Package Contents:
  • PowerScan PBT9530 Handheld Barcode Scanner
  • Base Station BC9030-BT
  • Cable CAB-438
  • Power Brick 8-0935
  • Power Cord 6003-0941
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0053926217304, 0086547439008, 0779184041580, 0783555091678
UPC: 053926217304, 086547439008, 779184041580, 783555091678
EAN: 0053926217304, 0086547439008, 0779184041580, 0783555091678
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PBT9500-RBK10US Barcode Scanner is also known as DTL-PBT9500RBK10US or PBT9500RBK10US.
