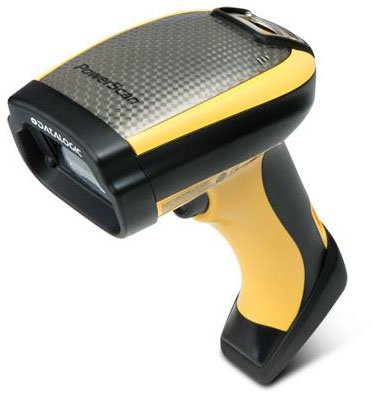

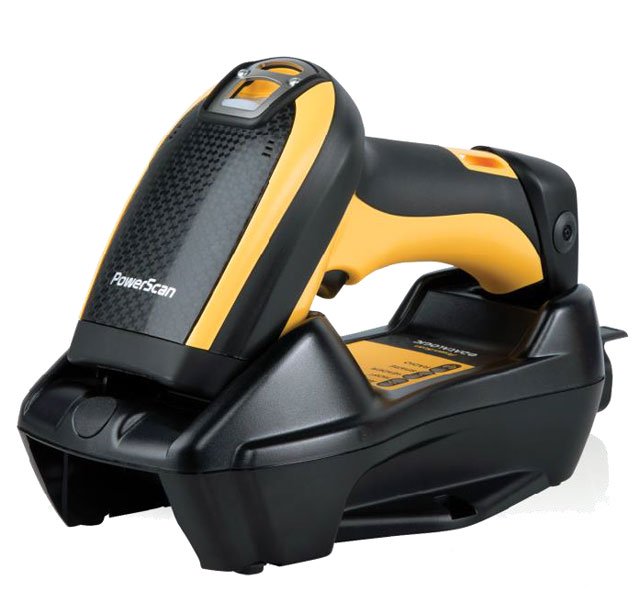

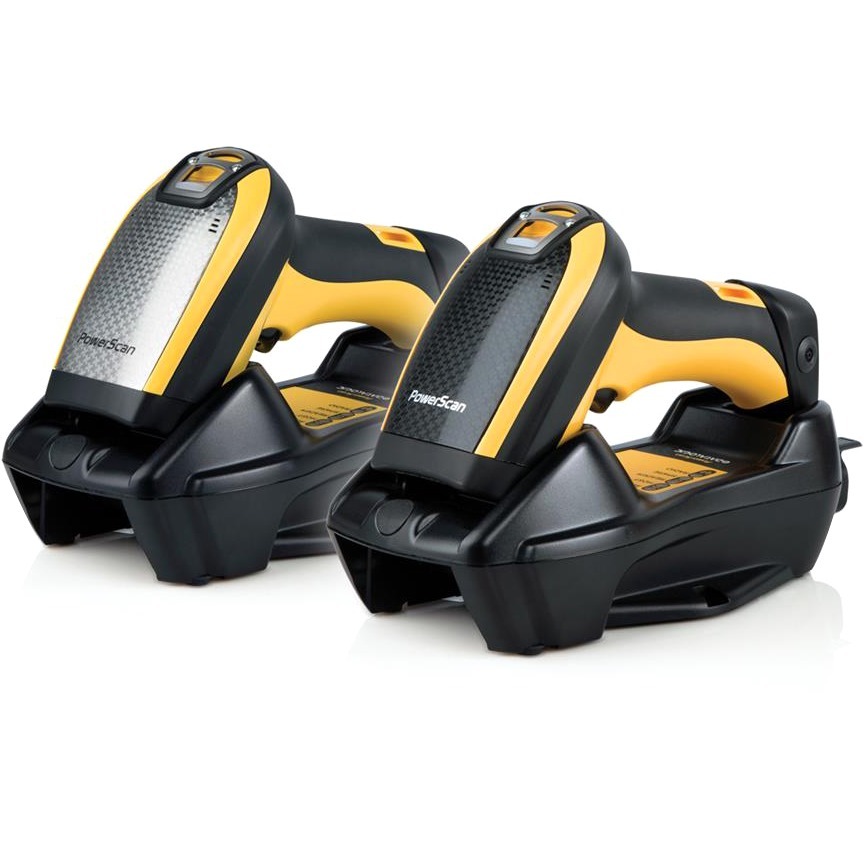

Datalogic PBT9500-DPMRBK10US Barcode Scanner

Datalogic PowerScan PBT9500-DPM Barcode Scanner Model Overview

The PowerScan PBT9500-DPM Evo imager includes the latest optics and software from Datalogic to make the reading of codes marked with DPM technology easy and intuitive. The typical reading distance with the PowerScan PBT9500-DPM Evo is from contact to 4-5 cm/1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The PowerScan PBT9500-DPM Evo scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm/5.9 in.

Datalogic PBT9500-DPMRBK10US Barcode Scanner Overview

Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.

The PowerScan™ PBT9500-DPM reader is a cordless rugged handheld area imager specifically addressed and capable of reading codes marked with DPM.

The PowerScan PBT9530-DPM imager includes the latest optics and software from Datalogic to make the reading of codes marked with DPM technology easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

1D
2D

Barcode Symbology Supported:

1D / Linear Cdoes:

Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

2D Codes:

Aztec Code
China Han Xin Code
Data Matrix
MaxiCode
Micro QR Code
QR Code

Postal Codes:

Australian Post
China Post
IMB
Japanese Post
KIX Post
Planet Code
Portuguese Post
Postnet
Royal Mail Code (RM4SCC)
Swedish Post

Stacked Codes:

EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites

Image Sensor Type:

Imager

Scanning Distance:

5.91"

Network & Communication

Bluetooth:

Yes

Interfaces/Ports

Host Interface:

USB

Physical Characteristics

Form Factor:

Handheld

Product Color:

Yellow
Black

Height:

8.3"

Width:

4.3"

Depth:

2.9"

Weight (Approximate):

13.40 oz

Miscellaneous

Package Contents:

PowerScan PBT9500-DPM Handheld Barcode Scanner

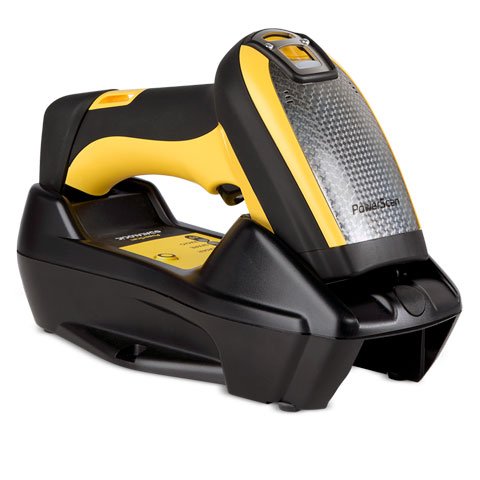

Base Station BC9030-BT
Cable CAB-438
Power Brick 8-0935
Power Cord 6003-0941

Additional Information:

USB Cable separate

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0015020973975, 0088611709222

UPC: 015020973975, 088611709222

EAN: 0015020973975, 0088611709222

UNSPSC: 43211701
