Datalogic PowerScan PBT9500-DPM Evo – Barcode Scanner – Cordless – 1D

Part Number: PBT9500-DPMRB
Model: PowerScan PBT9500-DPM Evo
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless
Form Factor
Handheld
Interface Options
Bluetooth
Scanner Capability
1D

Product Description:

  Datalogic PowerScan PBT9500-DPM Handheld Barcode Scanner - Wireless Connectivity - 5.90" Scan Distance - 1D, 2D - Imager - Omni-directional - Bluetooth - Yellow, Black
Explore all Datalogic PowerScan PBT9500-DPM Barcode Scanners
Add to Quote
Datalogic PBT9500-DPMRB Barcode Scanner
Datalogic PBT9500-DPMRB Barcode Scanner
Datalogic PBT9500-DPMRB Barcode Scanner
Datalogic PBT9500-DPMRB Barcode Scanner
Datalogic PBT9500-DPMRB Barcode Scanner
Datalogic PBT9500-DPMRB Barcode Scanner
Datalogic PBT9500-DPMRB Barcode Scanner
Datalogic PBT9500-DPMRB Barcode Scanner
Datalogic PBT9500-DPMRB Barcode Scanner
Datalogic PBT9500-DPMRB Barcode Scanner
Datalogic PBT9500-DPMRB Barcode Scanner Datalogic PBT9500-DPMRB Barcode Scanner Datalogic PBT9500-DPMRB Barcode Scanner Datalogic PBT9500-DPMRB Barcode Scanner Datalogic PBT9500-DPMRB Barcode Scanner Datalogic PBT9500-DPMRB Barcode Scanner Datalogic PBT9500-DPMRB Barcode Scanner Datalogic PBT9500-DPMRB Barcode Scanner Datalogic PBT9500-DPMRB Barcode Scanner Datalogic PBT9500-DPMRB Barcode Scanner
Full specifications (PDF)

Datalogic PowerScan PBT9500-DPM Barcode Scanner Model Overview

The PowerScan PBT9500-DPM Evo imager includes the latest optics and software from Datalogic to make the reading of codes marked with DPM technology easy and intuitive. The typical reading distance with the PowerScan PBT9500-DPM Evo is from contact to 4-5 cm/1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The PowerScan PBT9500-DPM Evo scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm/5.9 in.
Datalogic PBT9500-DPMRB Barcode Scanner Overview

Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.

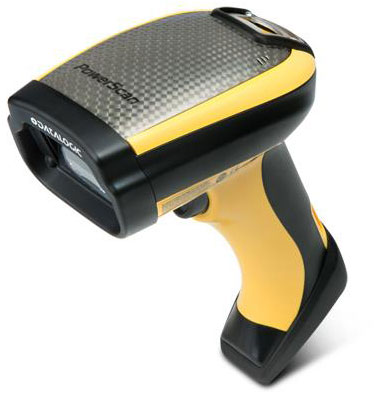

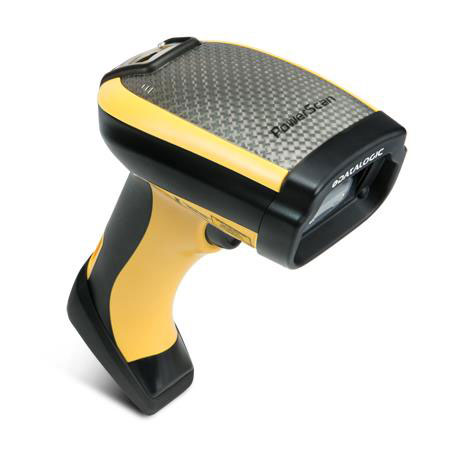

The PowerScan™ PBT9500-DPM reader is a cordless rugged handheld area imager specifically addressed and capable of reading codes marked with DPM.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D / Linear Codes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
Postal Codes:
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 1.1" - 2.4"@2mil
  • 0.9" - 3"@2.5mil
  • 0.4" - 3.5"@5mil
  • 1" - 2"@4mil - Data Matrix
  • 0.8" - 2.8"@5mil - Data Matrix
  • 0.8" - 4.1"@10mil - Data Matrix
  • 0.4" - 3.5"@5mil - PDF
  • 0.4" - 4.9"@10mil - PDF
  • 0.9" - 6.3"@13mil - EAN-13
Scan Pattern:
Omni-directional
Scanning Distance:
5.90"
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Maximum Number of Scans per Full Charge:
30000
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Height:
8.3"
Width:
2.9"
Depth:
4.3"
Weight (Approximate):
13.40 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
GTIN: 0008045120103, 5052184046492, 5712505725092
UPC: 008045120103
EAN: 0008045120103, 5052184046492, 5712505725092
UNSPSC: 43211701
