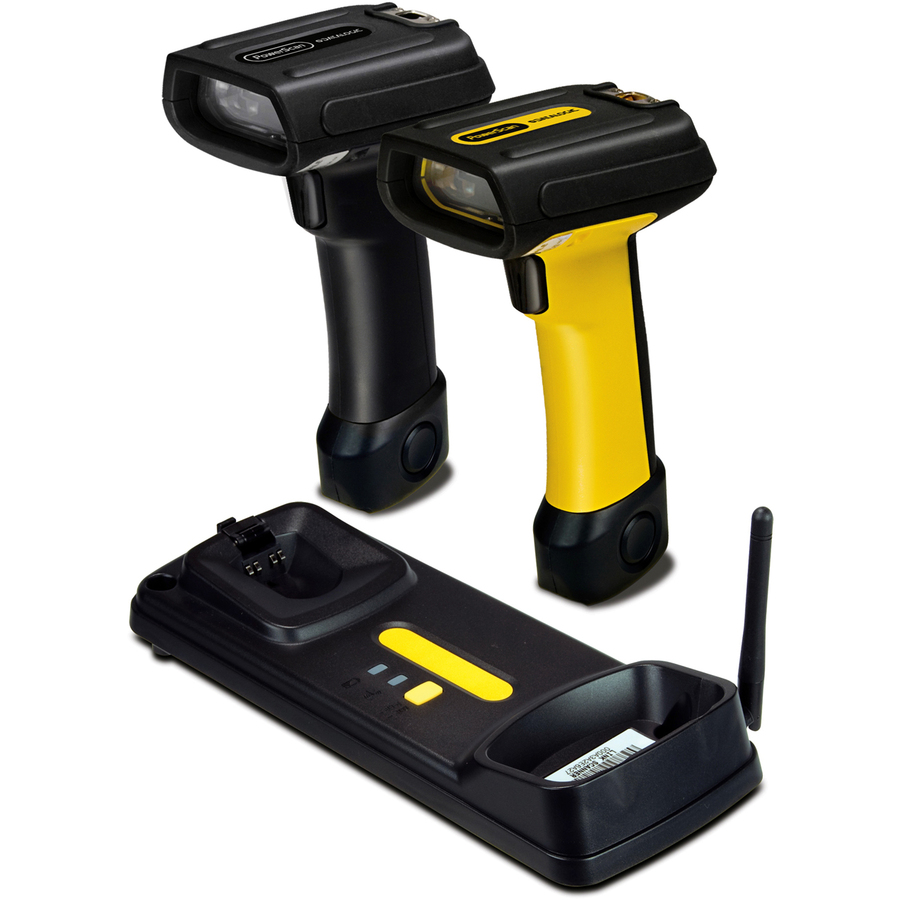

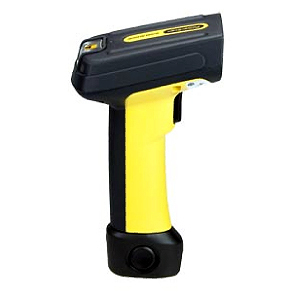

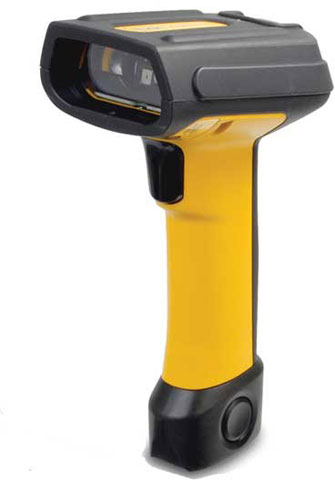

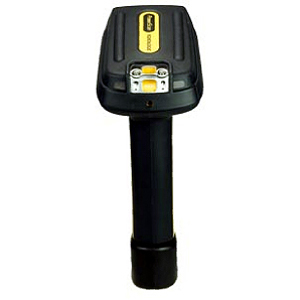

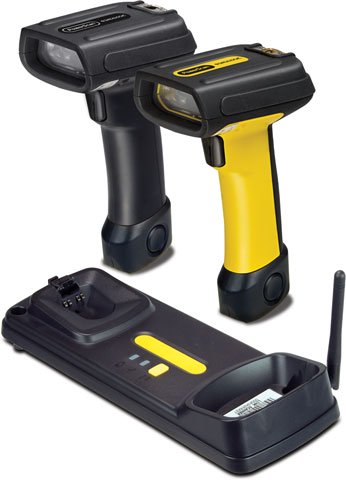

Datalogic PowerScan PBT7100 – Barcode Scanner – Cordless – 1D

Part Number: PBT7100-YBK10-US
Model: PowerScan PBT7100
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless
Form Factor
Handheld
Scanner Capability
1D
Scanner Type
CCD, Imager

Product Description:

  Datalogic PowerScan PBT7100 Handheld Bar Code Reader - Wireless Connectivity - 390 scan/s - 118.11" Scan Distance - Laser - Imager - Linear - Bluetooth - Yellow, Black
Explore all Datalogic PowerScan PBT7100 Barcode Scanners
Add to Quote
Datalogic PBT7100-YBK10-US Barcode Scanner
Datalogic PBT7100-YBK10-US Barcode Scanner
Datalogic PBT7100-YBK10-US Barcode Scanner
Datalogic PBT7100-YBK10-US Barcode Scanner
Datalogic PBT7100-YBK10-US Barcode Scanner
Datalogic PBT7100-YBK10-US Barcode Scanner
Datalogic PBT7100-YBK10-US Barcode Scanner
Datalogic PBT7100-YBK10-US Barcode Scanner Datalogic PBT7100-YBK10-US Barcode Scanner Datalogic PBT7100-YBK10-US Barcode Scanner Datalogic PBT7100-YBK10-US Barcode Scanner Datalogic PBT7100-YBK10-US Barcode Scanner Datalogic PBT7100-YBK10-US Barcode Scanner Datalogic PBT7100-YBK10-US Barcode Scanner
Full specifications (PDF)

Datalogic PowerScan PBT7100 Barcode Scanner Model Overview

The Datalogic PowerScan PBT7100 linear imaging barcode reader with Bluetooth wireless technology offers operator freedom from cable entanglement, rugged durability and extremely snappy reading performance all at an affordable price. Datalogic Scanning's innovative and unique optical design of the PowerScan PBT7100 combines features that are normally available on different models into a single device: up to 3 mils maximum code resolution; contact to over 3.0 m / 9.8 ft reading distance on standard paper labels; and wide angle code reading. The result is a versatile, easy to use and intuitive scanner that simplifies any code reading activity.
Datalogic PBT7100-YBK10-US Barcode Scanner Overview

The PowerScan 7100 product series are Datalogic Scanning's value line of rugged industrial handheld data collection products. The PowerScan PBT7100 linear imaging bar code reader with Bluetooth wireless technology offers operator freedom from cable entanglement, rugged durability and extremely snappy reading performance all at an affordable price.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:

1D / Linear Codes:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes

Postal Codes:

  • China Post

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omni directional
Light Source:
Laser
Image Sensor Type:
Imager
Scan Rate:
390 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 0.6" - 5.5"@5mil
  • 0" - 17.3"@7.5mil
  • 0" - 23.6"@10mil
  • 0" - 31.5"@13mil
  • 0" - 46.9"@20mil
  • 0.8" - 94.5"@40mil
  • 2" - 118.1"@55mil - Reflective
  • 5.1" - 208.7"@100mil - Reflective
Scan Pattern:
Linear
Scanning Distance:
118.11"
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Height:
8"
Width:
3"
Depth:
4.5"
Weight (Approximate):
12.50 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0853585545615
UPC: 853585545615
EAN: 0853585545615
UNSPSC: 43211701
