Datalogic PBT7100-BBK22-US Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review

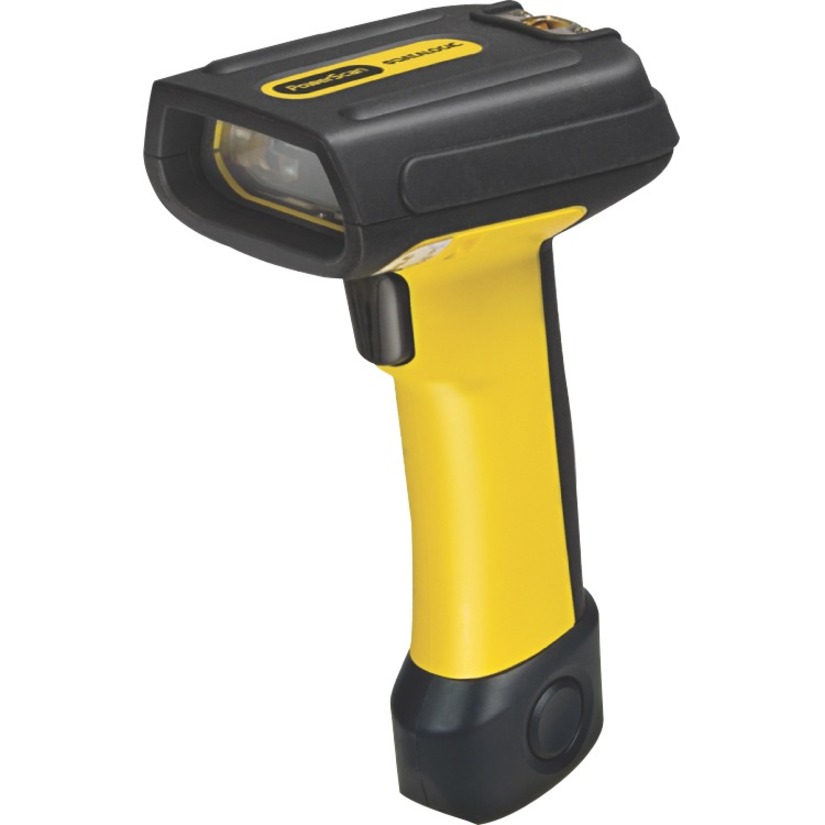

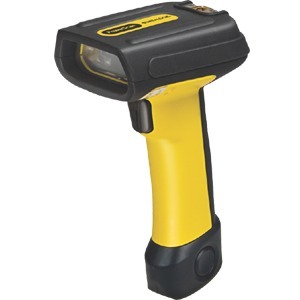

Datalogic PowerScan PBT7100 - PowerScan 7100BT Industrial Handheld Linear Imager Barcode Reader (RS-232, US Power supply, Power cord, Cable and No Pointer) - Color: Black/Black
Fastest speed-to-read - 390 scans/second

The Datalogic PowerScan PBT7100 linear imaging barcode reader with Bluetooth wireless technology offers operator freedom from cable entanglement, rugged durability and extremely snappy reading performance all at an affordable price. Datalogic Scanning's innovative and unique optical design of the PowerScan PBT7100 combines features that are normally available on different models into a single device: up to 3 mils maximum code resolution, contact to over 3.0 m / 9.8 ft. reading distance on standard paper labels, and wide angle code reading. The result is a versatile, easy to use and intuitive scanner that simplifies any code reading activity.

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Linear
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Auto Discriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Auto Discriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 0.60" - 5.50"@5 mil
    • 0 mil - 17.30"@7.50 mil
    • 0 mil - 23.60"@10 mil
    • 0 mil - 31.50"@13 mil
    • 0 mil - 46.90"@20 mil
    • 0.80" - 94.50"@40 mil
    • 2" - 118.10"@55 mil - Reflective
    • 5.10" - 17.39 ft@100 mil - Reflective

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PBT7100
  • Product Name: PBT7100 Handheld Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8"
  • Width: 3"
  • Depth: 4.5"
  • Color: Black
  • Weight (Approximate): 12.50 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS

Battery Information

  • Maximum Number of Scans per Full Charge: 22000
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Datalogic
Model PowerScan PBT7100
Scanner Type Imager
Scanner Capability 1D
