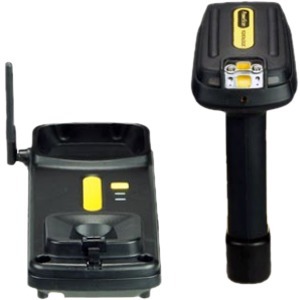

Datalogic PBT7100-BB Barcode Scanner

Fastest speed-to-read - 390 scans/second

The Datalogic PowerScan PBT7100 linear imaging barcode reader with Bluetooth wireless technology offers operator freedom from cable entanglement, rugged durability and extremely snappy reading performance all at an affordable price. Datalogic Scanning's innovative and unique optical design of the PowerScan PBT7100 combines features that are normally available on different models into a single device: up to 3 mils maximum code resolution, contact to over 3.0 m / 9.8 ft. reading distance on standard paper labels, and wide angle code reading. The result is a versatile, easy to use and intuitive scanner that simplifies any code reading activity.

Technical Information

Scan Pattern: Linear
Scan Rate: 390 scan/s
Connectivity Technology: Wireless
Scanning Distance: 118.11"
Light Source: Laser
Image Sensor: Imager
Barcode Symbology Supported:
- 1D / Linearcodes:
- Auto discriminates all standard 1D codes including GS1 DataBar linearcodes
- Postal Codes:
- China Post
- Stacked Codes:
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omni directional
- 1D / Linearcodes:
- Auto discriminates all standard 1D codes including GS1 DataBar linearcodes
- Postal Codes:
- China Post
- Stacked Codes:
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omni directional
Maximum Scan Resolution: 3 mil
Depth of Field:
- 0.60" - 5.50"@5 mil
- 0 mil - 17.30"@7.50 mil
- 0 mil - 23.60"@10 mil
- 0 mil - 31.50"@13 mil
- 0 mil - 46.90"@20 mil
- 0.80" - 94.50"@40 mil
- 2" - 118.10"@55 mil - Reflective
- 5.10" - 17.39 ft@100 mil - Reflective

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: PBT7100
Product Name: PowerScan PBT7100 Barcode Reader
Product Line: PowerScan

Physical Characteristics

Height: 8"
Width: 3"
Depth: 4.5"
Color: Black
Weight (Approximate): 12.50 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: China RoHS

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

Bluetooth: Yes

Warranty

Limited Warranty: 3 Year

Full specifications (PDF)

See all Datalogic PowerScan PBT7100 options »
