Datalogic Magellan 1500i – Barcode Scanner – Corded – 2D – Cable Only

Part Number: MG1503-30250-0200
Model: Magellan 1500i
3-year Premium Plus ($85.37)
3-year Premium ($30.67)
No Support
Add to My Shopping List Add to Compare
$338.49
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Presentation
Interface Options
USB
Scanner Capability
2D

Product Description:

  Corded Presentation Barcode Scanner, Datalogic Magellan 1500i, 2D Imager, General Purpose, Includes USB Type A 4.5m/15ft Cable, Black, OEM Configuration, Includes Wall Mount
Explore all Datalogic Magellan 1500i Barcode Scanners
Add to Quote
Datalogic MG1503-30250-0200 Barcode Scanner
Datalogic MG1503-30250-0200 Barcode Scanner
Datalogic MG1503-30250-0200 Barcode Scanner
Datalogic MG1503-30250-0200 Barcode Scanner
Datalogic MG1503-30250-0200 Barcode Scanner
Datalogic MG1503-30250-0200 Barcode Scanner Datalogic MG1503-30250-0200 Barcode Scanner Datalogic MG1503-30250-0200 Barcode Scanner Datalogic MG1503-30250-0200 Barcode Scanner

Full specifications (PDF)

Datalogic Magellan 1500i Barcode Scanner Model Overview

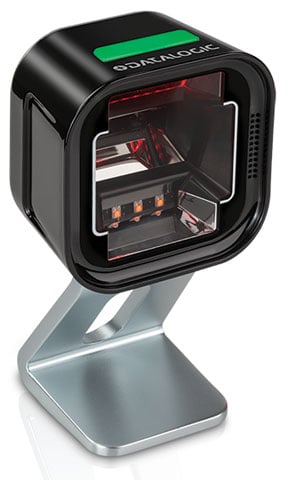

Datalogic's Magellan 1500i omnidirectional presentation scanner is a flexible and elegant addition to any point of sale. Capable of reading both 1D and 2D barcodes on printed labels or mobile devices, the Magellan 1500i is suited to a variety of environments, such as retail, commercial services, and the healthcare field. The compact design paired with Datalogic's imaging scanning expertise makes the Magellan 1500i the most powerful presentation scanner on the market. The Magellan 1500i is also designed with motion sensing technology that enables it to switch into handheld mode when it is picked up.
Datalogic MG1503-30250-0200 Barcode Scanner Overview

HIGH PERFORMANCE SCANNING IN THE PALM OF YOUR HAND

The Magellan 1500i omnidirectional presentation scanner is a versatile and stylish addition to any point of sale. With Datalogic's latest digital imaging technology, it seamlessly decodes both 1D and 2D bar codes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes. The recessed, adaptive illumination optimizes light levels for both superior operator comfort and high performance sweep and presentation scanning. With the addition of optional Digimarc Barcode decoding, the Magellan 1500i is the most capable scanner in its class.

A WIDE VARIETY OF USES

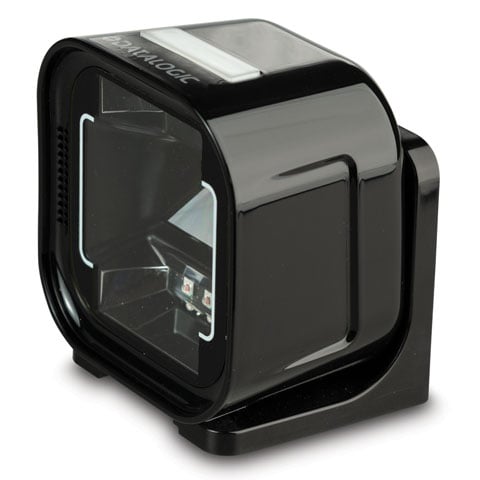

The available black and white enclosures complement a variety of point of sale systems and store formats, making the Magellan 1500i equally at home in a convenience store, pharmacy, post office or a high-end boutique. With the most compact footprint in its class, the Magellan 1500i is an ideal choice for space constrained applications. Additionally, intelligent host cable routing ensures that the scanner is both comfortable in the hand and can back right up to a wall or display for maximum space efficiency. A variety of mounting options allow you to optimize the scanner's location with a tall tilting riser, short stand, magnetic base and an L shaped mounting bracket.

ENTERPRISE FEATURES

Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added features included in every Magellan scanner.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

2D Codes:

  • Aztec Code, Data Matrix, MaxiCode, QR Code

Postal Codes:

  • Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes:

  • GS1 DataBar Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; Micro PDF417, PDF417

Digital Watermarks:

  • Optional support for Digimarc® Barcodes/GS1 DW Code
Light Source:
LED
Image Sensor Type:
Imager
Scan Pattern:
  • Area
  • Omni-directional
Features:
  • Beep
  • Notification LED
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
75°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Image Formats:
  • BMP
  • JPEG
Maximum Ambient Light:
86100 lux
Drop Specification:

Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface

Minimum Print Contrast:
25%
Minimum Element Resolution (DataMatrix):
13 mil
Maximum Element Resolution (DataMatrix):
24 mil
Illumination Type:
LED
Air Electrostatic Discharge (+/-):
25kV
Interfaces/Ports
Host Interface:
  • USB
  • Serial
Environmental Conditions
Operating Temperature:
32°F (0°C) to 104°F (40°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Hands-free
Color Family:
Dual Color
Product Color:
  • Black
  • White
Miscellaneous
Ingress Protection (IP) Rating:
IP52
Application/Usage:
  • Retail
  • Commercial Service
  • Healthcare
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (5)
  • Power Device (2)
  • Power Device Accessories (1)
  • Scanner Accessories (17)

Recommended Accessories for Model: Datalogic MG1503-30250-0200 Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Datalogic MG1503-30250-0200

See All Cables, Connectors, and Adapters for Datalogic MG1503-30250-0200 Barcode Scanner >

Top Power Device Purchased With Datalogic MG1503-30250-0200

Top Power Device Accessories Purchased With Datalogic MG1503-30250-0200

Top Scanner Accessories Purchased With Datalogic MG1503-30250-0200

See All Scanner Accessories for Datalogic MG1503-30250-0200 Barcode Scanner >

Frequently Asked Questions

The Magellan 1500i is a 2D imaging scanner capable of reading both 1D and 2D barcodes seamlessly, including barcodes printed on labels, mobile phones, laptops, tablets, and other display screens. It supports a wide range of symbologies including UPC, EAN, Code 128, PDF417, Data Matrix, and QR codes, with optional Digimarc® Barcode decoding available for enhanced functionality.

Yes, the Magellan 1500i is designed for versatile operation in both modes. It features motion sensing technology that automatically switches the device into handheld mode when picked up, while also functioning as a stationary presentation scanner with an adjustable stand. This dual-mode capability makes it ideal for point-of-sale environments requiring flexibility.

The Magellan 1500i is available with USB or RS-232 interface options in OEM configuration. Our model includes a USB Type A connection with a 4.5-meter (15-foot) cable, making it easy to integrate into existing point-of-sale systems. Contact us today to discuss alternative connectivity requirements for your specific setup.

Yes, the Magellan 1500i's advanced digital imaging technology is specifically designed to read barcodes displayed on mobile devices, including mobile coupons, loyalty cards, tickets, and boarding passes. The adaptive illumination system optimizes light levels to ensure reliable scanning from phone and tablet screens without operator discomfort.

The Magellan 1500i comes with a 3-Year Factory Warranty to protect your investment. Datalogic also offers EASEOFCARE Service Plans with a range of options, and the scanner can be easily monitored and updated remotely via Remote Management or Scanalyzer™ software. Visit barcodesinc.com or contact us today for detailed support plan information.

The Magellan 1500i combines Datalogic's advanced digital imaging expertise with a compact, ergonomic design to deliver class-leading omnidirectional presentation scanning performance. Key differentiators include Green Spot® technology for good-read feedback, subtle adaptive illumination for user comfort, an LED aimer for precision scanning, and motion sensing that enables automatic handheld operation—making it one of the most powerful presentation scanners available from us.

The Datalogic MG1503-30250-0200 Barcode Scanner is also known as DTL-MG1503302500200 or MG1503302500200.
