Datalogic Magellan 1500i – Barcode Scanner – Corded – 2D – Scanner Only

Part Number: MG1503-30200
Model: Magellan 1500i
3-year Premium Plus ($85.37)
3-year Premium ($30.67)
No Support
Add to My Shopping List Add to Compare
$290.09
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Corded
Form Factor
Presentation
Scanner Capability
2D
Scanner Type
Imager

Product Description:

  Corded Presentation Barcode Scanner, Datalogic Magellan 1500i, 2D Imager, General Purpose, SCANNER ONLY, Black, OEM Configuration
Explore all Datalogic Magellan 1500i Barcode Scanners
Add to Quote
Datalogic MG1503-30200 Barcode Scanner
Datalogic MG1503-30200 Barcode Scanner
Datalogic MG1503-30200 Barcode Scanner
Datalogic MG1503-30200 Barcode Scanner
Datalogic MG1503-30200 Barcode Scanner
Datalogic MG1503-30200 Barcode Scanner
Datalogic MG1503-30200 Barcode Scanner Datalogic MG1503-30200 Barcode Scanner Datalogic MG1503-30200 Barcode Scanner Datalogic MG1503-30200 Barcode Scanner Datalogic MG1503-30200 Barcode Scanner

Full specifications (PDF)

Datalogic Magellan 1500i Barcode Scanner Model Overview

Datalogic's Magellan 1500i omnidirectional presentation scanner is a flexible and elegant addition to any point of sale. Capable of reading both 1D and 2D barcodes on printed labels or mobile devices, the Magellan 1500i is suited to a variety of environments, such as retail, commercial services, and the healthcare field. The compact design paired with Datalogic's imaging scanning expertise makes the Magellan 1500i the most powerful presentation scanner on the market. The Magellan 1500i is also designed with motion sensing technology that enables it to switch into handheld mode when it is picked up.
Datalogic MG1503-30200 Barcode Scanner Overview

HIGH PERFORMANCE SCANNING IN THE PALM OF YOUR HAND

The Magellan 1500i omnidirectional presentation scanner is a versatile and stylish addition to any point of sale. With Datalogic's latest digital imaging technology, it seamlessly decodes both 1D and 2D bar codes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes. The recessed, adaptive illumination optimizes light levels for both superior operator comfort and high performance sweep and presentation scanning. With the addition of optional Digimarc Barcode decoding, the Magellan 1500i is the most capable scanner in its class.

A WIDE VARIETY OF USES

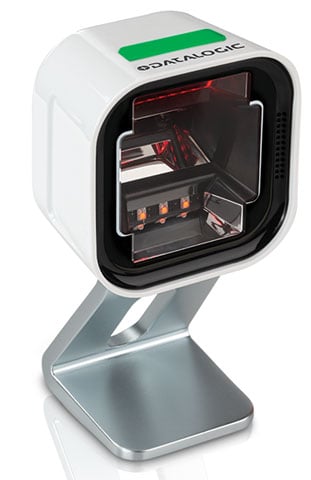

The available black and white enclosures complement a variety of point of sale systems and store formats, making the Magellan 1500i equally at home in a convenience store, pharmacy, post office or a high-end boutique. With the most compact footprint in its class, the Magellan 1500i is an ideal choice for space constrained applications. Additionally, intelligent host cable routing ensures that the scanner is both comfortable in the hand and can back right up to a wall or display for maximum space efficiency. A variety of mounting options allow you to optimize the scanner's location with a tall tilting riser, short stand, magnetic base and an L shaped mounting bracket.

ENTERPRISE FEATURES

Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added features included in every Magellan scanner.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

2D Codes:

  • Aztec Code, Data Matrix, MaxiCode, QR Code

Postal Codes:

  • Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes:

  • GS1 DataBar Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; Micro PDF417, PDF417

Digital Watermarks:

  • Optional support for Digimarc® Barcodes/GS1 DW Code
Light Source:
LED
Image Sensor Type:
Imager
Scan Pattern:
  • Area
  • Omni-directional
Scanning Distance:
11.80"
Features:
  • Beep
  • Notification LED
  • Ergonomic Design
  • Checkpoint EAS
Reading Angle (Skew):
75°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Image Formats:
  • BMP
  • JPEG
Maximum Ambient Light:
86100 lux
Drop Specification:
  • Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface
Minimum Print Contrast:
25%
Minimum Element Resolution (DataMatrix):
13 mil
Maximum Element Resolution (DataMatrix):
24 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Air Electrostatic Discharge (+/-):
25kV
Environmental Conditions
Operating Temperature:
32°F (0°C) to 104°F (40°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Hands-free
Color Family:
Black
Product Color:
Black
Miscellaneous
Ingress Protection (IP) Rating:
IP52
Application/Usage:
  • Retail
  • Commercial Service
  • Healthcare
  • Laboratory
  • Pharmacy
  • Convenience Store
  • Ticketing
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (5)
  • Power Device (2)
  • Power Device Accessories (1)
  • Scanner Accessories (17)

Recommended Accessories for Model: Datalogic MG1503-30200 Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Datalogic MG1503-30200

See All Cables, Connectors, and Adapters for Datalogic MG1503-30200 Barcode Scanner >

Top Power Device Purchased With Datalogic MG1503-30200

Top Power Device Accessories Purchased With Datalogic MG1503-30200

Top Scanner Accessories Purchased With Datalogic MG1503-30200

See All Scanner Accessories for Datalogic MG1503-30200 Barcode Scanner >

Frequently Asked Questions

The Magellan 1500i is a 2D imaging scanner capable of reading both 1D linear barcodes and 2D barcodes seamlessly. It decodes barcodes on printed labels, mobile devices, laptops, tablets, and displays, making it ideal for modern retail environments where customers present digital coupons, loyalty cards, and mobile tickets. The scanner also supports optional Digimarc® Barcode decoding for enhanced flexibility.

Yes, the Magellan 1500i features motion sensing technology that automatically switches the device into handheld mode when picked up from its stand. This dual-mode capability allows it to function both as a hands-free presentation scanner on the counter and as a handheld scanner for customer-presented items, providing maximum flexibility at the point of sale.

The Magellan 1500i is available with RS-232 or USB interface options in OEM configuration. Both connection types integrate seamlessly with standard point-of-sale systems, and the scanner can be easily monitored and updated through Datalogic's Remote Management or Scanalyzer™ software.

The scanner features subtle, adaptive illumination technology that optimizes light levels for superior operator comfort during long shifts, reducing eye strain compared to traditional fixed-brightness scanners. The compact, ergonomic design is purpose-built for both hands-free and handheld operations, and the LED aimer provides precision targeting for small items or price look-up lists without causing discomfort.

Yes, the Magellan 1500i is Checkpoint® Systems EAS and Interlock compatible, allowing it to integrate with existing security tag deactivation systems. This compatibility makes it an ideal choice for retailers who need unified barcode scanning and loss prevention in a single device.

The Magellan 1500i comes with a 3-year factory warranty from Datalogic. We offer EASEOFCARE Service Plans that provide a wide range of service options to protect your investment and ensure maximum productivity and ROI. Configuration software including Magellan OSP, OPOS, and JavaPOS utilities are available for download at no charge. Contact us today to discuss service plan options that match your operational needs.

The Datalogic MG1503-30200 Barcode Scanner is also known as DTL-MG150330200 or MG150330200.
