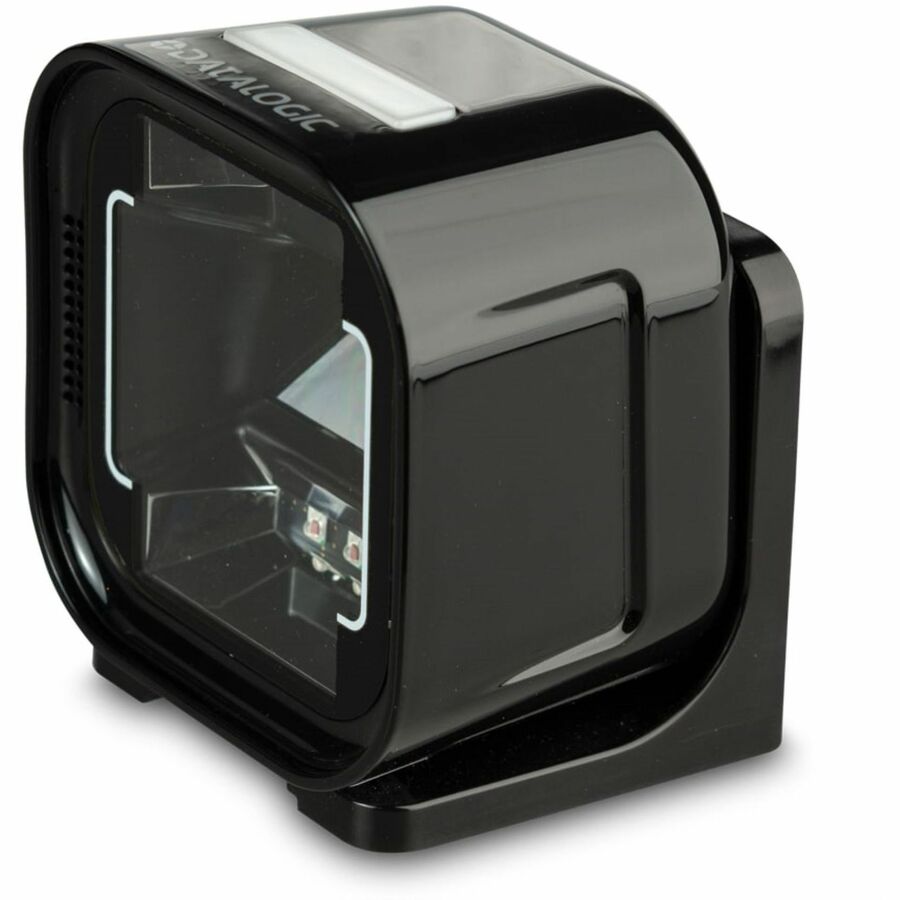

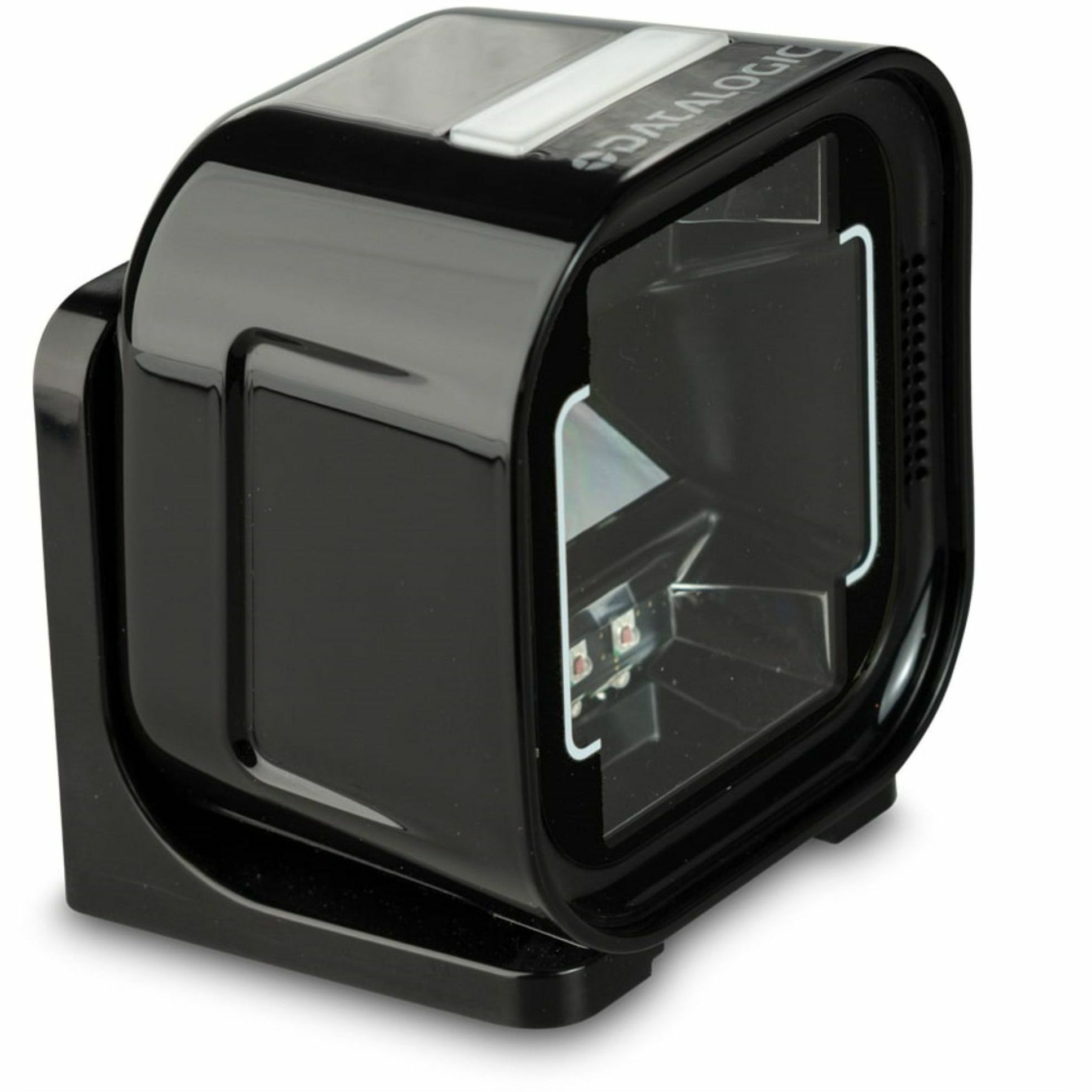

Datalogic Magellan 1500i – Barcode Scanner – Corded – 2D – Cable Only

Part Number: MG1503-30200-0200
Model: Magellan 1500i
to get Free Ground Shipping on your order.
3-year Premium Plus ($81.26)
3-year Premium ($26.56)
No Support
$378.62

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Presentation
Interface Options
USB
Scanner Capability
2D

Product Description:

  Corded Presentation Barcode Scanner Datalogic Magellan 1500i, 2D Imager, General Purpose, Includes USB Type A 4.5m/15ft Cable, Black, OEM Configuration

Datalogic Magellan 1500i Barcode Scanner Model Overview

Datalogic's Magellan 1500i omnidirectional presentation scanner is a flexible and elegant addition to any point of sale. Capable of reading both 1D and 2D barcodes on printed labels or mobile devices, the Magellan 1500i is suited to a variety of environments, such as retail, commercial services, and the healthcare field. The compact design paired with Datalogic's imaging scanning expertise makes the Magellan 1500i the most powerful presentation scanner on the market. The Magellan 1500i is also designed with motion sensing technology that enables it to switch into handheld mode when it is picked up.
Datalogic MG1503-30200-0200 Barcode Scanner Overview

HIGH PERFORMANCE SCANNING IN THE PALM OF YOUR HAND

The Magellan 1500i omnidirectional presentation scanner is a versatile and stylish addition to any point of sale. With Datalogic's latest digital imaging technology, it seamlessly decodes both 1D and 2D bar codes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes. The recessed, adaptive illumination optimizes light levels for both superior operator comfort and high performance sweep and presentation scanning. With the addition of optional Digimarc Barcode decoding, the Magellan 1500i is the most capable scanner in its class.

A WIDE VARIETY OF USES

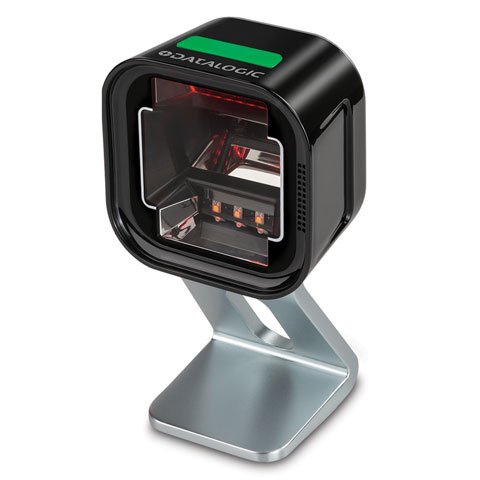

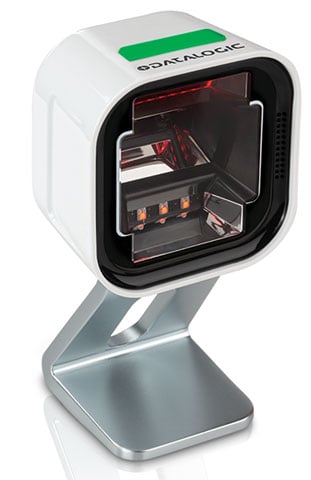

The available black and white enclosures complement a variety of point of sale systems and store formats, making the Magellan 1500i equally at home in a convenience store, pharmacy, post office or a high-end boutique. With the most compact footprint in its class, the Magellan 1500i is an ideal choice for space constrained applications. Additionally, intelligent host cable routing ensures that the scanner is both comfortable in the hand and can back right up to a wall or display for maximum space efficiency. A variety of mounting options allow you to optimize the scanner's location with a tall tilting riser, short stand, magnetic base and an L shaped mounting bracket.

ENTERPRISE FEATURES

Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added features included in every Magellan scanner.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 2D
  • 1D
Barcode Symbology Supported:

1D:

  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D:

  • Aztec Code,
  • Data Matrix
  • MaxiCode,
  • QR Code
Light Source:
LED
Scan Pattern:
Omni-directional
Scanning Distance:
11.80"
Features:
  • Beep
  • Notification LED
  • Checkpoint EAS
Cable Type Included:
USB
Reading Angle (Skew):
75°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Maximum Ambient Light:
86100 lux
Drop Specification:

Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface

Minimum Print Contrast:
25%
Image Sensor Resolution:
1280 x 800
Interfaces/Ports
Host Interface:
USB
Environmental Conditions
Operating Temperature:
32°F (0°C) to 104°F (40°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Fixed Mount
Height:
5.9"
Width:
2.4"
Depth:
3"
Weight (Approximate):
6 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP52
Application/Usage:
  • Retail
  • Commercial Service
  • Healthcare
  • Industrial
Environmentally Friendly:
Yes
Environmental Compliance:
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
