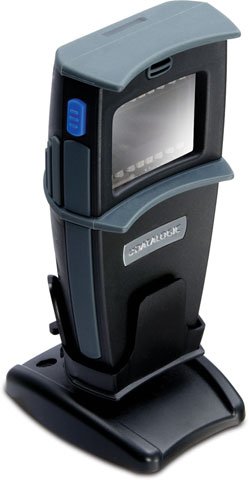

Datalogic Magellan 1400i – Barcode Scanner – 1D

Part Number: MG140041-001-411R
Model: Magellan 1400i
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Datalogic Magellan 1400i Bar Code Reader - Wired
Explore all Datalogic Magellan 1400i Barcode Scanners
Add to Quote
Datalogic MG140041-001-411R Barcode Scanner
Datalogic MG140041-001-411R Barcode Scanner
Datalogic MG140041-001-411R Barcode Scanner
Datalogic MG140041-001-411R Barcode Scanner
Datalogic MG140041-001-411R Barcode Scanner
Datalogic MG140041-001-411R Barcode Scanner
Datalogic MG140041-001-411R Barcode Scanner Datalogic MG140041-001-411R Barcode Scanner Datalogic MG140041-001-411R Barcode Scanner Datalogic MG140041-001-411R Barcode Scanner Datalogic MG140041-001-411R Barcode Scanner Datalogic MG140041-001-411R Barcode Scanner
Full specifications (PDF)

Datalogic Magellan 1400i Barcode Scanner Model Overview

The Magellan 1400i from Datalogic is an omni-directional imaging scanner, which provides an aggressive imaging performance of 1100 digital scan lines per second. Its intuitive operation simplifies checker training and increases checkout speeds for improved customer service. The scanner is capable of auto-discriminating PDF and 1D barcodes, thus giving the user freedom to scan both normal items and ID cards totally hands-free. Magellan 1400i's ergonomic and practical design allows hands-free scanning options for small items and handheld scanning for bulkier items.
Datalogic MG140041-001-411R Barcode Scanner Overview

The Magellan 1400i omni-directional imaging scanner represents the newest breakthrough in data capture technology from Datalogic Scanning. The world's first imaging-based presentation scanner with PDF decoding, the Magellan 1400i omni-directional imaging scanner is designed for convenience stores, drug stores, specialty stores and other medium volume checkout environments. Its solid-state construction with no moving parts increases reliability, while the small footprint frees up valuable counter selling space. The Magellan 1400i omni-directional imaging scanner has been optimized to scan both UPC/EAN labeled items and ID cards with PDF-417 bar codes for easy age or ID verification at the point-of-sale. The Magellan 1400i omni-directional imaging scanner also has a targeted scanning mode for reading close-proximity bar codes.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • EAN 8 & 13 with full expansion 8 to 13
  • JAN 8 & 13 with full expansion 8 to 13
  • EAN/JAN Two Label
  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UCC/EAN 128
  • UPC Add-on sub 2 or P2
  • UPC Add-on sub 5 or P5
  • UPC Add-on C128
  • Dual Bar Codes for Japan (2 label read)
  • Italian Pharmacode
  • Micro PDF-417
  • PDF 417
  • RSS-14
  • RSS-Expanded
  • RSS-Stacked
  • RSS-Limited
  • RSS Composite
  • Supports GTIN
  • Code 39 Full ASCII
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Codabar
  • MSI/PLESSEY
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.75" - 2"@5mil
  • 1.5" - 3"@6.6mil - PDF417
  • 0.5" - 4"@7.5mil
  • 0" - 6"@10mil
  • 1.25" - 7"@10mil - PDF417
  • 0" - 8"@13mil - UPC
  • 1" - 8"@15mil - PDF417
  • 0" - 9"@20mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Desktop
Product Color:
Black
Height:
7.1"
Width:
3.2"
Depth:
3.8"
Weight (Approximate):
15.70 oz
Miscellaneous
Additional Information:

Supported Interface:

USB

USB Cable separate

Certifications & Standards:

Electrical:

  • Gost R
  • TÜV
  • UL
  • cUL
  • NOM

Emissions:

  • FCC
  • EN 55022
  • AS/NZS CISPR 22
  • VCCI
  • CNS 13438
  • ICES-003

Restriction of Hazardous Substances:

  • EU RoHS
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Scanner Accessories (8)

Recommended Accessories for Model: Datalogic MG140041-001-411R Barcode Scanner

Top Scanner Accessories Purchased With Datalogic MG140041-001-411R

See All Scanner Accessories for Datalogic MG140041-001-411R Barcode Scanner >
The Datalogic MG140041-001-411R Barcode Scanner is also known as PSC-MG140041001411R or MG140041001411R.
