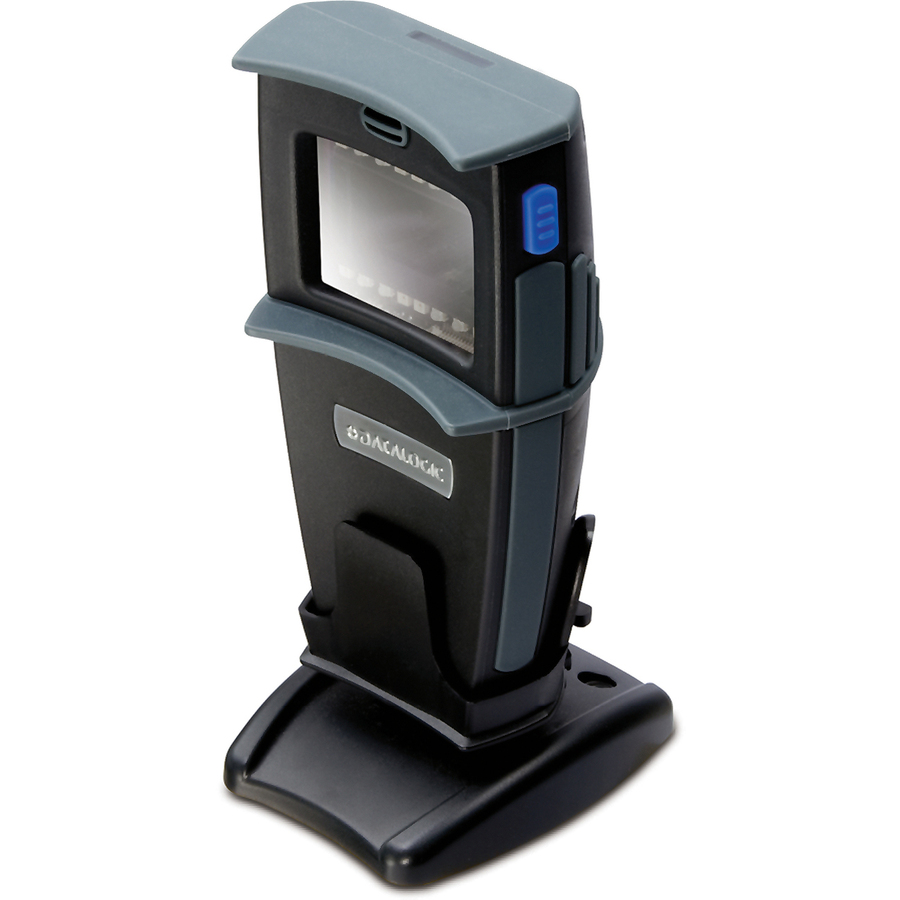

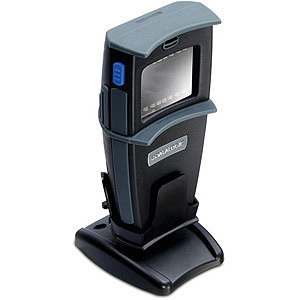

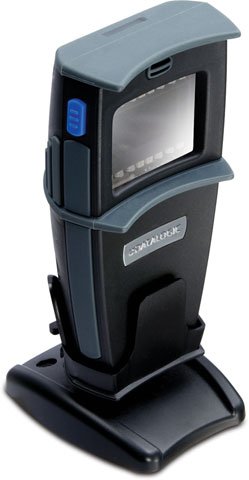

Datalogic MG140010-101-106R Barcode Scanner

The Datalogic MG140010-101-106R Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Magellan 1400i - Scanner kit with RS232 interface, DB9 12ft serial cable and US power supply. Color: black.
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

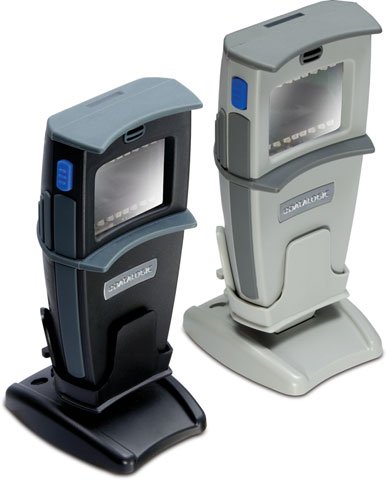

Datalogic Magellan 1400i Barcode Scanner Model Overview
The Magellan 1400i from Datalogic is an omni-directional imaging scanner, which provides an aggressive imaging performance of 1100 digital scan lines per second. Its intuitive operation simplifies checker training and increases checkout speeds for improved customer service. The scanner is capable of auto-discriminating PDF and 1D barcodes, thus giving the user freedom to scan both normal items and ID cards totally hands-free. Magellan 1400i's ergonomic and practical design allows hands-free scanning options for small items and handheld scanning for bulkier items.
Datalogic MG140010-101-106R Barcode Scanner Overview

The Magellan 1400i omni-directional imaging scanner represents the newest breakthrough in data capture technology from Datalogic Scanning. The world's first imaging-based presentation scanner with PDF decoding, the Magellan 1400i omni-directional imaging scanner is designed for convenience stores, drug stores, specialty stores and other medium volume checkout environments. Its solid-state construction with no moving parts increases reliability, while the small footprint frees up valuable counter selling space. The Magellan 1400i omni-directional imaging scanner has been optimized to scan both UPC/EAN labeled items and ID cards with PDF-417 bar codes for easy age or ID verification at the point-of-sale. The Magellan 1400i omni-directional imaging scanner also has a targeted scanning mode for reading close-proximity bar codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • EAN 8 & 13 with full expansion 8 to 13
  • JAN 8 & 13 with full expansion 8 to 13
  • EAN/JAN Two Label
  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UCC/EAN 128
  • UPC Add-on sub 2 or P2
  • UPC Add-on sub 5 or P5
  • UPC Add-on C128
  • Dual Bar Codes for Japan (2 label read)
  • Italian Pharmacode
  • PDF 417
  • Micro PDF-417
  • RSS-14
  • RSS-Expanded
  • RSS-Stacked
  • RSS-Limited
  • RSS Composite
  • Supports GTIN
  • Code 39 Full ASCII
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Codabar
  • MSI/PLESSEY
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.75" - 2"@5mil
  • 1.5" - 3"@6.6mil - PDF417
  • 0.5" - 4"@7.5mil
  • 0" - 6"@10mil
  • 1.25" - 7"@10mil - PDF417
  • 0" - 8"@13mil - UPC
  • 1" - 8"@15mil - PDF417
  • 0" - 9"@20mil
Scan Pattern:
Omni-directional
Cable Type Included:
Serial
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Desktop
Product Color:
Black
Height:
7.1"
Width:
3.2"
Depth:
3.8"
Weight (Approximate):
15.70 oz
Miscellaneous
Package Contents:
  • Magellan 1400i Bar Code Reader
  • 12' RS-232 Cable
  • US Power Supply
Additional Information:

USB Cable separate

Certifications & Standards:

Electrical:

  • Gost R
  • TÜV
  • UL
  • cUL
  • NOM

Emissions:

  • FCC
  • EN 55022
  • AS/NZS CISPR 22
  • VCCI
  • CNS 13438
  • ICES-003

Restriction of Hazardous Substances:

  • EU RoHS
  • RoHS Compliance
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic MG140010-101-106R Barcode Scanner is also known as PSC-MG140010101106R or MG140010101106R.
