Datalogic Magellan 1100i – Barcode Scanner – 1D

Part Number: MG118010-000
Model: Magellan 1100i
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Presentation
Scanner Capability
1D
Scanner Type
CCD, Imager

Product Description:

  Datalogic Magellan 1100i Desktop Bar Code Reader - Cable Connectivity - 1D, 2D - Imager - Omni-directional - Keyboard Wedge, IBM 46XX, USB, Serial
Explore all Datalogic Magellan 1100i Barcode Scanners
Add to Quote
Datalogic MG118010-000 Barcode Scanner
Datalogic MG118010-000 Barcode Scanner
Datalogic MG118010-000 Barcode Scanner
Datalogic MG118010-000 Barcode Scanner
Datalogic MG118010-000 Barcode Scanner
Datalogic MG118010-000 Barcode Scanner Datalogic MG118010-000 Barcode Scanner Datalogic MG118010-000 Barcode Scanner Datalogic MG118010-000 Barcode Scanner

Full specifications (PDF)

Datalogic Magellan 1100i Barcode Scanner Model Overview

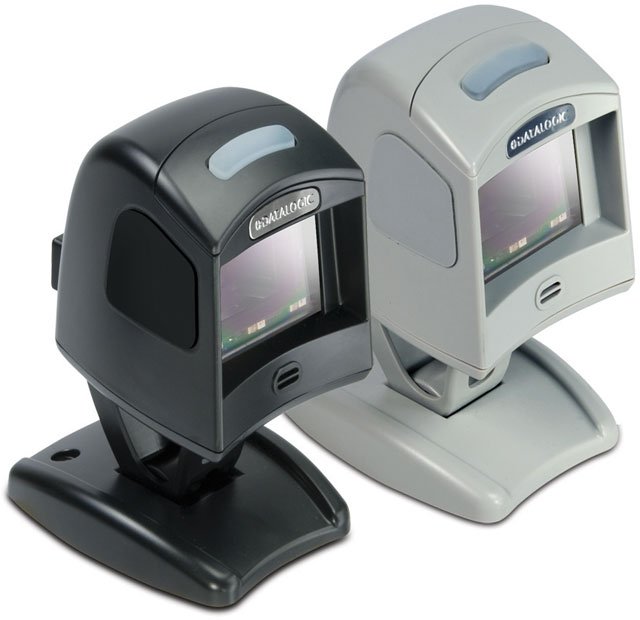

The Datalogic Magellan 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. The Magellan 1100i uses Datalogic's latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D barcodes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly "future-proof" solution.
Datalogic MG118010-000 Barcode Scanner Overview

The Magellan 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. It uses Datalogic Scanning's latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D bar codes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly "future-proof" solution.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

2D Codes:

  • Aztec Code
  • Data Matrix
  • MaxiCode
  • QR Code

Stacked Codes:

  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 1.8"@5mil
  • 0.25" - 2.25"@7.5mil
  • 0" - 5"@10mil
  • 0" - 6"@13mil
  • 0" - 6.7"@20mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
  • Keyboard Wedge
  • IBM 46XX
  • USB
  • Serial
Physical Characteristics
Form Factor:
Desktop
Height:
3.7"
Width:
2.8"
Depth:
3.3"
Weight (Approximate):
7 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Power Device (1)
  • Scanner Accessories (1)

Recommended Accessories for Model: Datalogic MG118010-000 Barcode Scanner

Top Power Device Purchased With Datalogic MG118010-000

Top Scanner Accessories Purchased With Datalogic MG118010-000

Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic MG118010-000 Barcode Scanner is also known as DTL-MG118010000
